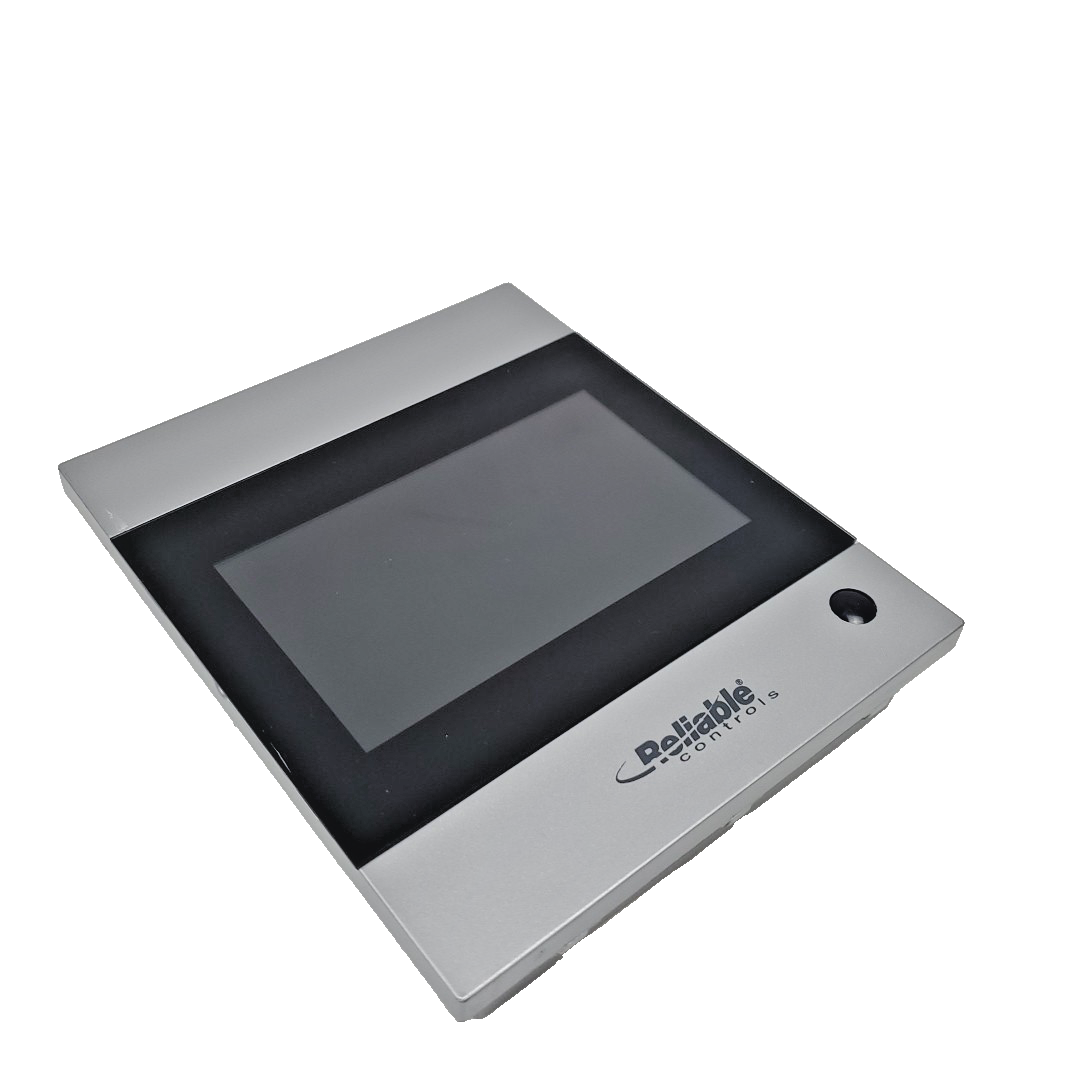

Reliable Controls MPV-L-W MACH-ProView LCD Controller
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MPV-L-W
Description
The Reliable Controls MPV-L-W is a MACH-ProView LCD building automation controller designed to monitor and control HVAC systems and building operating conditions. It combines a color touchscreen interface, programmable control functions, six universal inputs, six outputs, and Wi-Fi networking for building management applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Reliable Controls |
| Category | Industrial Automation |
| Part Number | MPV-L-W |
| Product Name | MACH-ProView LCD |
| Subcategory | Building Automation Controllers |
| Controller Type | BACnet Building Controller and Operator Display |
| Network Connectivity | Wi-Fi, IEEE 802.11b/g/n |
| Communication Protocol | BACnet, model-dependent network communications |
| Display Type | 4.3-inch color TFT touchscreen |
| Display Resolution | 480 × 272 pixels |
| Processor | 147 MHz, 32-bit embedded microcontroller |
| Operating RAM | 8 MB |
| Flash Memory | 32 MB |
| Universal Inputs | 6 |
| Input Types | 0–10 V DC, 4–20 mA, thermistor, dry contact |
| Universal Output Range | 0–12 V DC analog; 0/12 V DC binary |
| Relay Output Rating | 24 V AC/DC, 500 mA maximum |
| Power Supply | 24 V AC ±10% or 24 V DC ±10% |
| Maximum Power Consumption | 93 VA at 24 V AC; 9 W at 24 V DC |
| Temperature Measurement Range | −20°C to +55°C |
| Weight | 0.28 kg |
Information About MPV-L-W
The MPV-L-W is a BACnet building controller and operator display designed for local monitoring, scheduling, and control of building systems. Its 4.3-inch color touchscreen displays system graphics, alarms, schedules, trends, and operating values. The controller supports Wi-Fi connectivity using IEEE 802.11b/g/n and includes six universal inputs, an onboard temperature sensor, four universal/relay outputs, and two additional relay outputs. It also supports BACnet communication, programmable control logic, and trend logging for building automation applications.
Key Features:
- Building Automation Control: Supports HVAC monitoring and control in commercial building systems.
- Wi-Fi Connectivity: Provides wireless network connectivity for compatible building management systems.
- Color Touchscreen: Features a 4.3-inch full-color TFT display with 480 × 272 resolution.
- Universal Inputs: Includes six inputs configurable for voltage, current, thermistor, or dry-contact signals.
- Flexible Outputs: Provides six outputs, including four universal/relay outputs and two relay outputs.
- BACnet Communication: Supports BACnet networking for building automation integration.
- Scheduling and Trending: Supports programmable schedules, alarms, trend logs, and control routines.
The Reliable Controls MPV-L-W combines touchscreen operation, programmable control, and Wi-Fi connectivity for HVAC and building automation applications.
