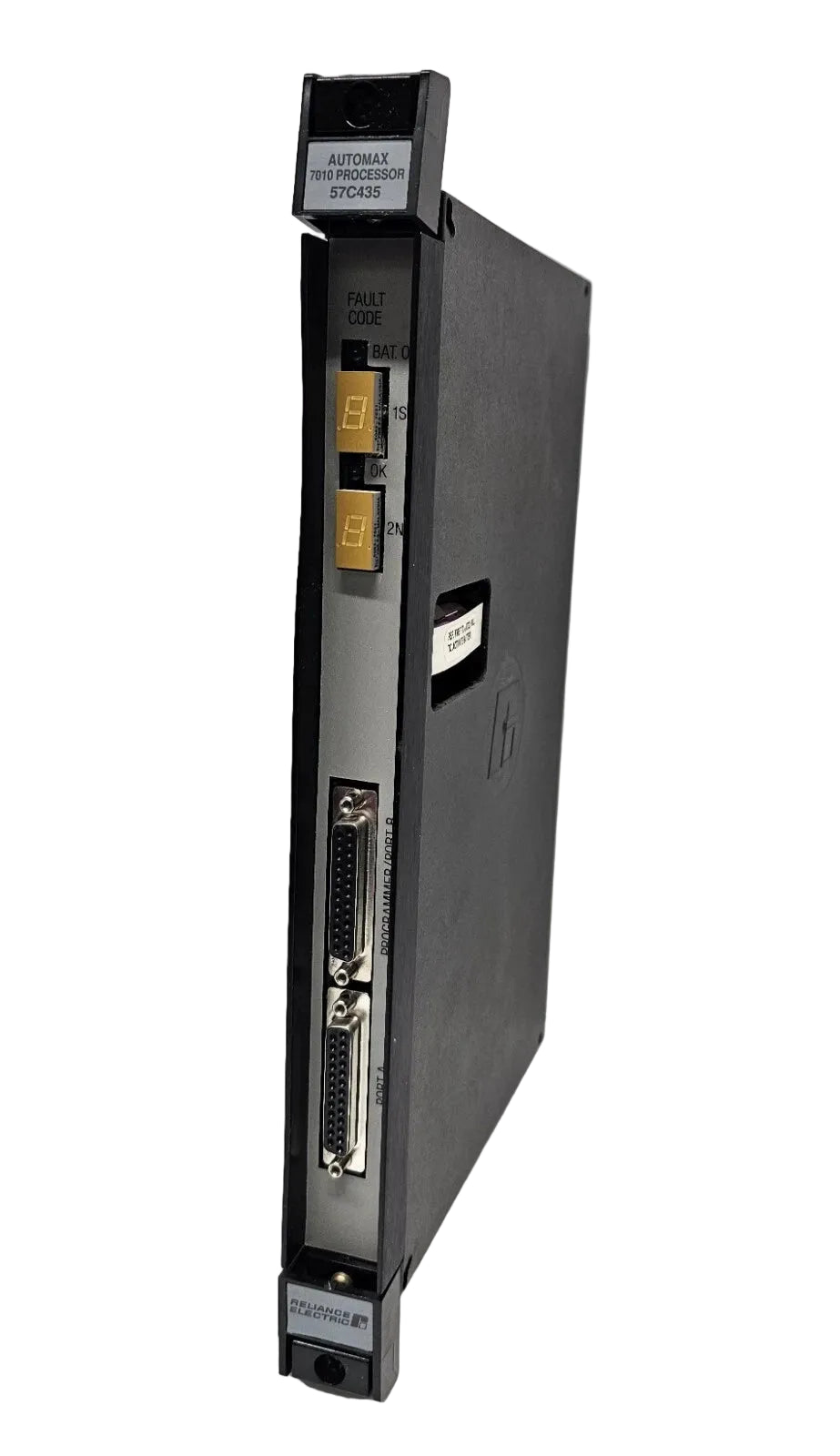

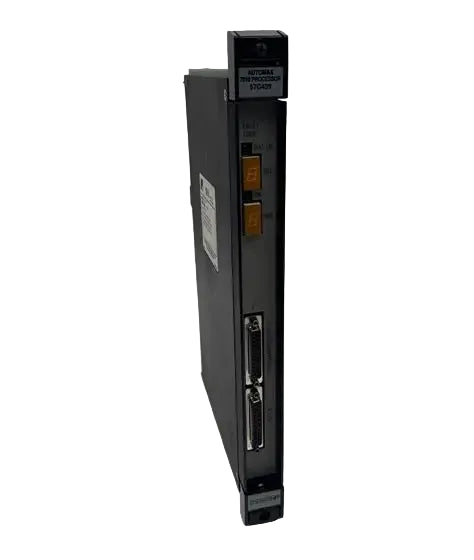

Reliance Electric 57C435 AutoMax 7010 Processor Module
- Regular price
- $9,999.00
- Sale price
- $9,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 57C435
Description
The Reliance Electric 57C435 is an AutoMax 7010 processor module for coordinating control tasks in an AutoMax system. It uses a 25 MHz Motorola 68020 processor, 512 KB of battery-backed RAM, and two serial ports.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Reliance Electric |
| Category | PLCs and Machine Control |
| Part Number | 57C435 |
| Subcategory | PLC Processor Modules |
| Product Series | AutoMax |
| Processor Model | 7010 |
| CPU | Motorola 68020, 25 MHz, 32-bit |
| Total Memory | 512 KB battery-backed RAM |
| Maximum Application Memory | 300 KB (290 KB with AMX V4) |
| Serial Ports | 2 × RS-232C |
| Compatible Software | AutoMax Executive version 2.1J or later |
| Backplane Power Requirement | 3 A at 5 VDC; 0.1 A each at +12 VDC and -12 VDC |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Dimensions | 11.75 × 1.25 × 7.37 in. |
| Weight | 1.21 kg |
Information About 57C435
The 57C435 belongs to the Reliance Electric AutoMax processor module family. It executes application programs that coordinate other modules installed in an AutoMax rack. The processor is compatible with AutoMax Executive version 2.1J or later and has two RS-232C serial ports. Its module power requirements are 3 A at 5 VDC and 0.1 A each at +12 VDC and -12 VDC.
Key Features:
- AutoMax Processor: Executes control and sequencing tasks within a Reliance Electric AutoMax rack, coordinating application logic with connected system modules.
- Motorola 68020 CPU: Uses a 25 MHz processor to run supported AutoMax control programs and manage controller operations.
- Battery-Backed Memory: Provides 512 KB of RAM with battery backup to retain required program and operating data during power interruptions.
- Serial Communications: Includes two RS-232C ports for supported programming, setup, and data exchange connections.
- AutoMax Software Support: Operates with AutoMax Executive software version 2.1J and later, subject to the system configuration.
- Rack-Based Installation: Fits into a compatible AutoMax rack and uses the rack’s backplane to connect with other control system modules.
- DC Power Requirements: Draws power from the rack supply, with specified loads of 3 A at +5 V and 0.1 A at each of +12 V and −12 V.
- Industrial Operating Range: Designed for control-system environments with an operating temperature range of 0–60°C.
The 57C435 delivers the reliability and precision required for AutoMax industrial control and processor applications.
