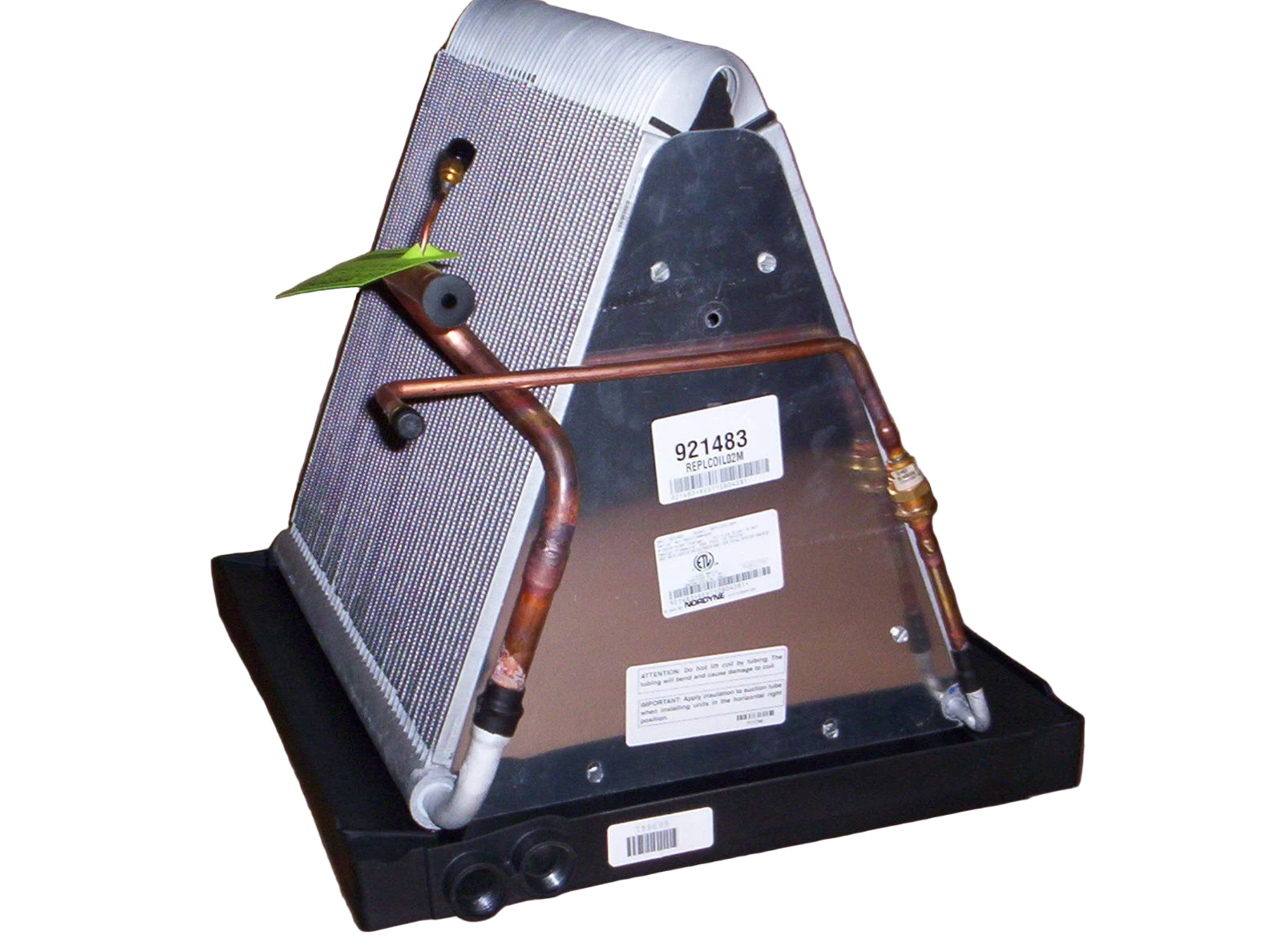

REPLCOIL02M | Nortek 2-Ton Uncased Aluminum Evaporator Coil
- Regular price
- $1,159.00
- Sale price
- $1,159.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: REPLCOIL02M
Description
The Nortek REPLCOIL02M is a 2-ton uncased evaporator coil designed for residential air handler systems. With a 24,000 BTU/hr cooling capacity and aluminum coil construction, it provides efficient heat transfer for reliable indoor comfort.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Nortek Global HVAC |
| Category | HVAC Evaporator Coil |
| Part Number | REPLCOIL02M |
| Subcategory | Uncased Indoor Evaporator Coils |
| Coil Type | Uncased Evaporator |
| Cooling Capacity | 24,000 BTU/hr (2 tons) |
| Refrigerant Type | R-22, R-410A |
| Face Area | 3.47 sq-ft |
| Number of Rows | 1 |
| Orifice Size | 0.067 in |
| Connection Size | 3/4″ suction, 3/8″ liquid, 3/4″ drain |
| Material | Aluminum fins and tubing |
| Dimensions | 18-1/8″ W × 19″ H × 25.2″ L |
| Height | 22.1″ |
| Width | 20.1″ |
| Weight | 18.3 lb (8.3 kg) |
| Dimensional Weight | 80 |
| Country of Origin | Mexico |
| Approvals | UL Listed, UL Recognized |
| Suitable For Use With | B5BM-X24KB/X25KB/X36KB air handlers |
Information About REPLCOIL02M
The REPLCOIL02M is part of the Nortek REPLCOIL-M series, manufactured as an OEM indoor evaporator coil for use with specific Nordyne, Intertherm, and Miller air handlers. Built with aluminum fins and tubing, it is engineered for compatibility with both R-22 and R-410A refrigerants, supporting older and modern HVAC systems. The coil features a fixed-orifice refrigerant flow control, ensuring consistent performance in straight-cool applications. With compact dimensions and direct-fit design, it is suitable for replacement and service in models B5BM-X24KB, X25KB, and X36KB air handlers.
Key Features:
- OEM Indoor Coil: Designed specifically for Nortek Global HVAC air handler units.
- Cooling Capacity: Rated at 24,000 BTU/hr (2 tons) for efficient residential cooling.
- Aluminum Coil and Fins: Lightweight design with good corrosion resistance.
- Uncased Design: Simplifies integration into compatible air handler cabinets.
- Refrigerant Compatibility: Works with both R-22 and R-410A refrigerants.
- Fixed Orifice Metering: Provides reliable refrigerant flow for straight-cool systems.
- Compact Dimensions: Sized at 18-1/8″ W × 19″ H with easy installation footprint.
- Certified Quality: UL Listed and UL Recognized for safety and compliance.
- OEM Replacement: Fits Nordyne B5BM-X24KB/X25KB/X36KB series air handlers.
- Durable Build: Made from steel, copper, and aluminum for long service life.
The REPLCOIL02M delivers the reliability and efficiency required for dependable residential HVAC cooling applications.
