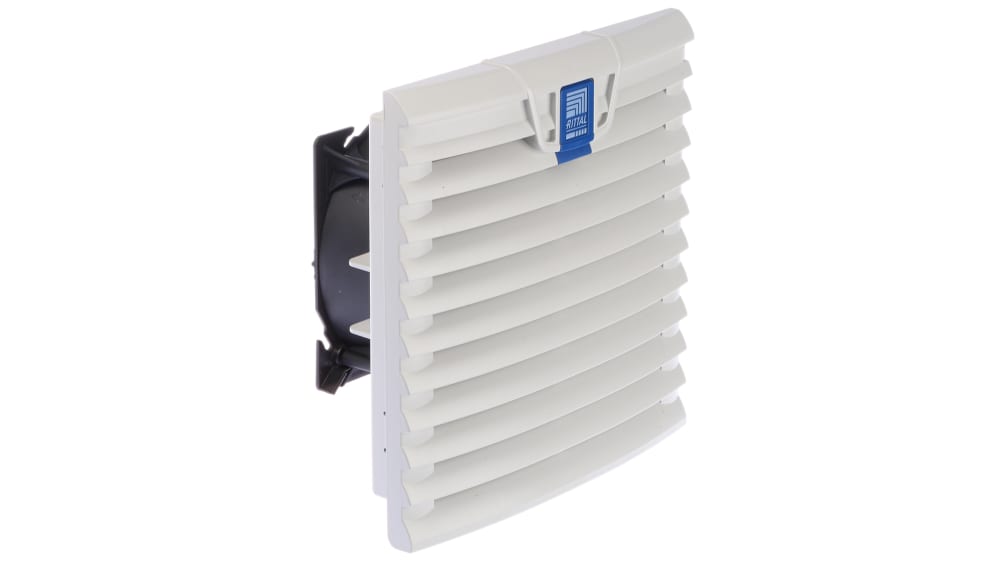

Rittal 3239100 TopTherm Filter Fan for Electrical Enclosures
- Regular price
- $422.00
- Sale price
- $422.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3239100
Description
The Rittal 3239100 is a TopTherm filter fan designed to provide forced-air ventilation for electrical enclosures and control cabinets. It operates on 230 V AC at 50/60 Hz and provides airflow of up to 70.6 CFM, helping remove heat while maintaining filtered air circulation inside the enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Rittal |
| Category | HVAC |
| Part Number | 3239100 |
| Subcategory | Fan/Ventilation |
| Series | SK / TopTherm |
| Supply Voltage | 230 V AC |
| Frequency | 50/60 Hz |
| Air Throughput | 105 m³/h unimpeded |
| Bearing Type | Ball Bearing |
| Grille Material | Plastic |
| Dimensions | 204 x 204 x 90 mm |
| Mounting Hole Size | 7 x 7 in |
| Protection Rating | IP54 with standard filter configuration |
| Operating Temperature | -15°C to +55°C |
| Service Life | 68,200 h at 40°C |
| Weight | 1.1 kg |
Information About 3239100
The 3239100 is part of Rittal’s SK Series of filter fan units and is supplied as a complete unit ready for installation. It features an AC fan with ball bearings, a plastic grille, and a filter mat for protected enclosure ventilation. The unit uses a 204 x 204 mm mounting format and is designed for tool-free installation on enclosure surfaces. Its operating temperature range is -15°C to +55°C, with IP54 protection under standard filter conditions.
Key Features:
- Filter Fan Design: Provides forced-air ventilation for electrical enclosures and control cabinets.
- AC Operation: Operates on 230 V AC at 50/60 Hz for standard industrial power systems.
- Airflow Capacity: Provides up to 70.6 CFM of airflow at 60 Hz.
- Filtered Airflow: Uses a filter mat to reduce the entry of dust and contaminants into the enclosure.
- Ball-Bearing Fan: Uses ball bearings to support reliable continuous fan operation.
- Tool-Free Mounting: Allows the complete fan unit to be mounted on enclosure surfaces without specialized tools.
- Temperature Range: Operates in ambient temperatures from -15°C to +55°C.
- IP54 Protection: Provides IP54 protection with the specified filter configuration.
The 3239100 delivers the reliability and airflow required for thermal management and ventilation of electrical enclosures.
