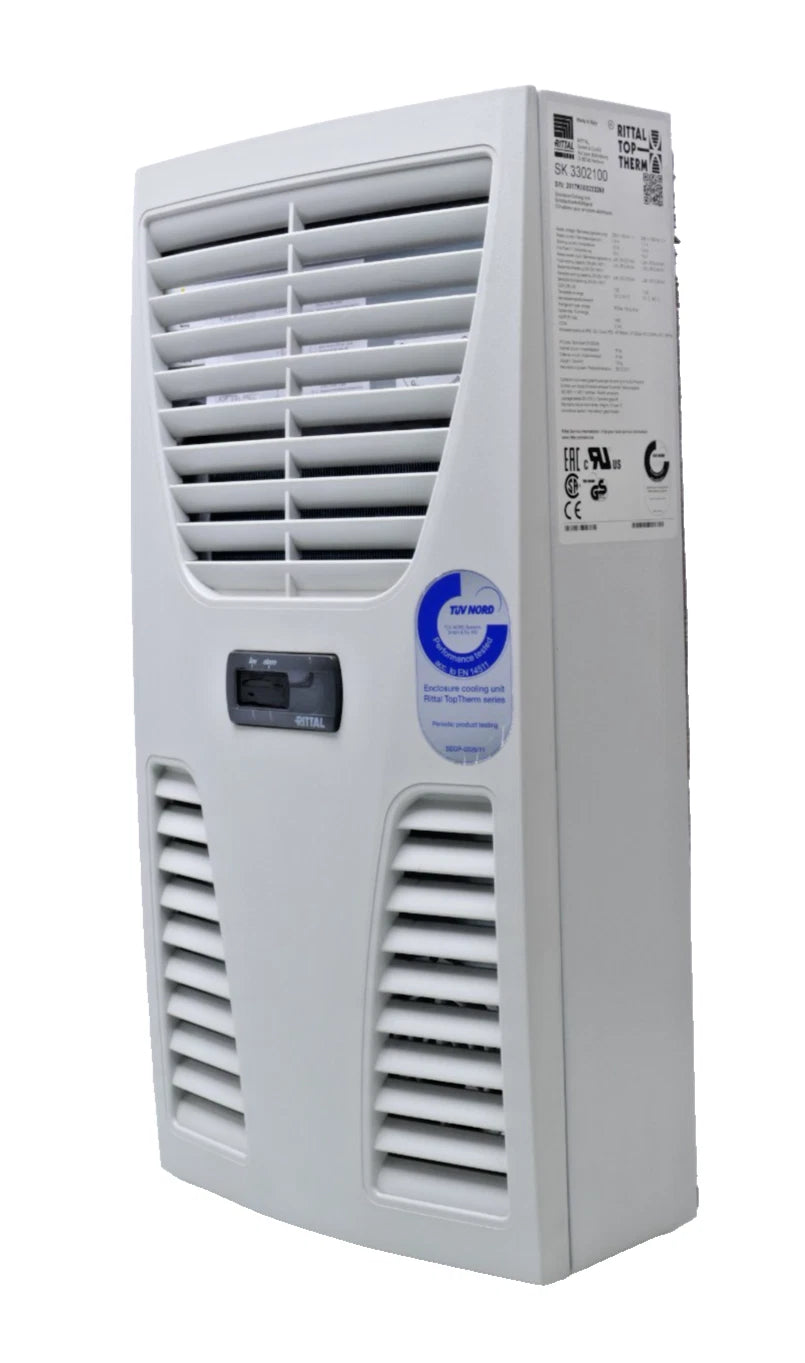

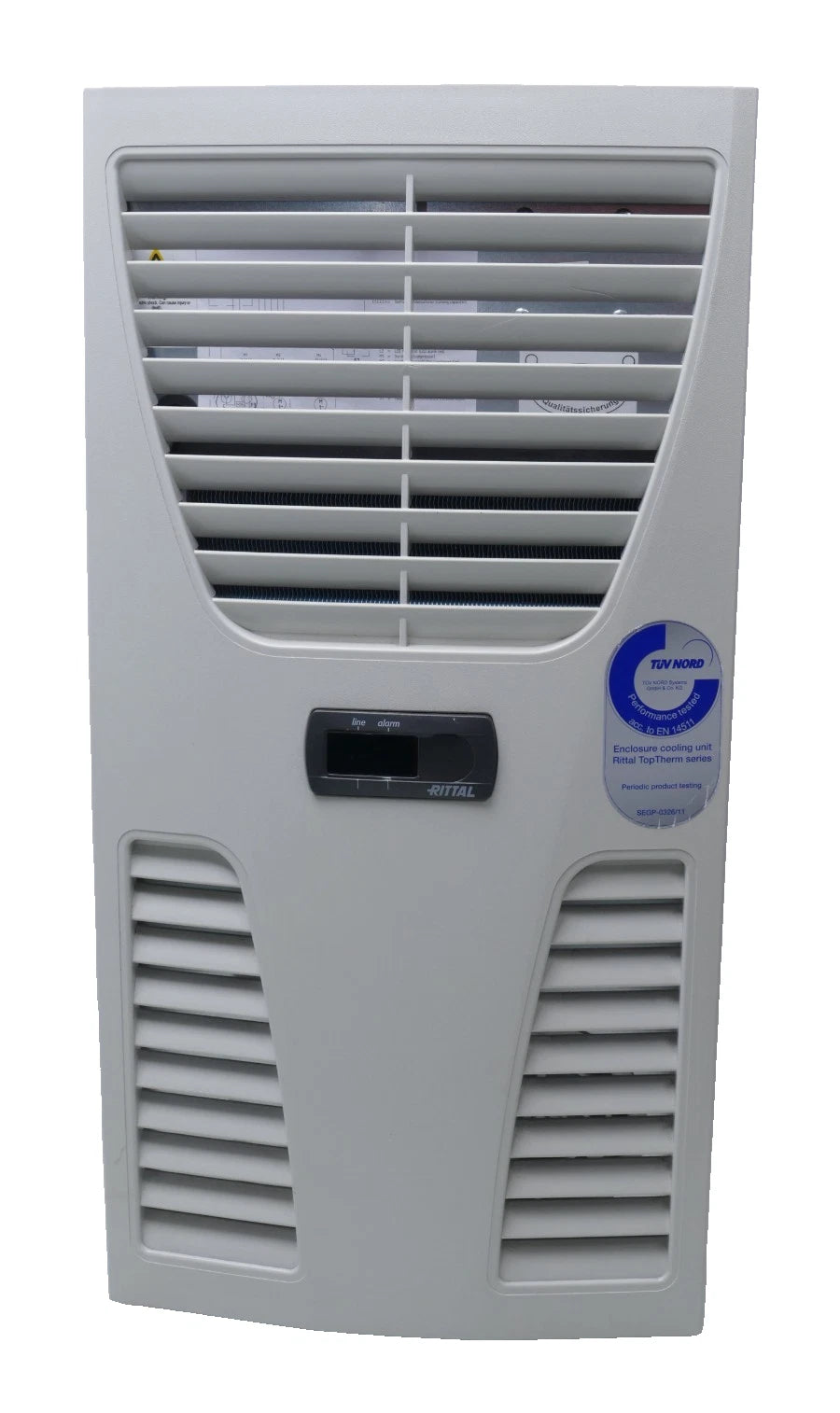

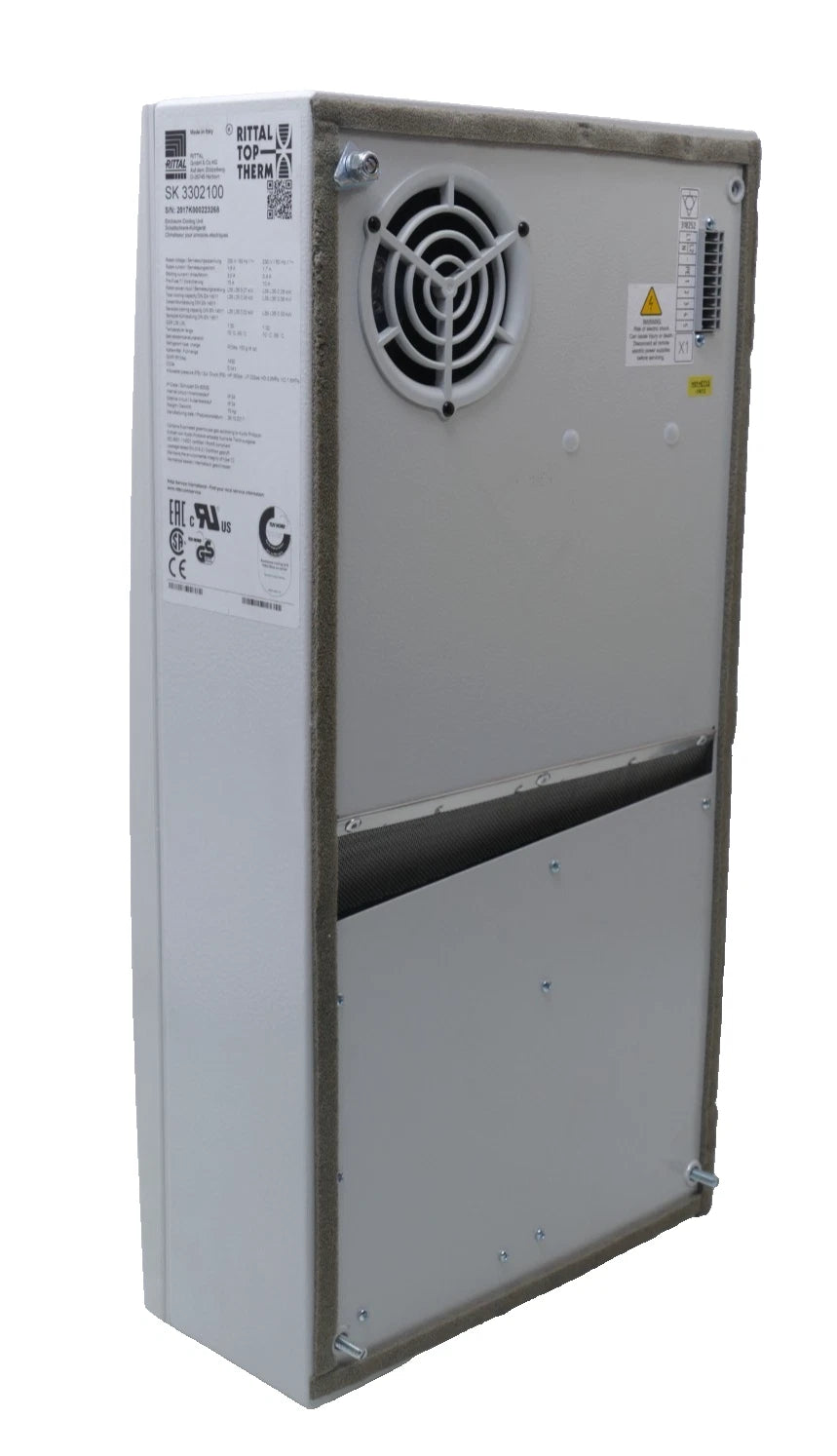

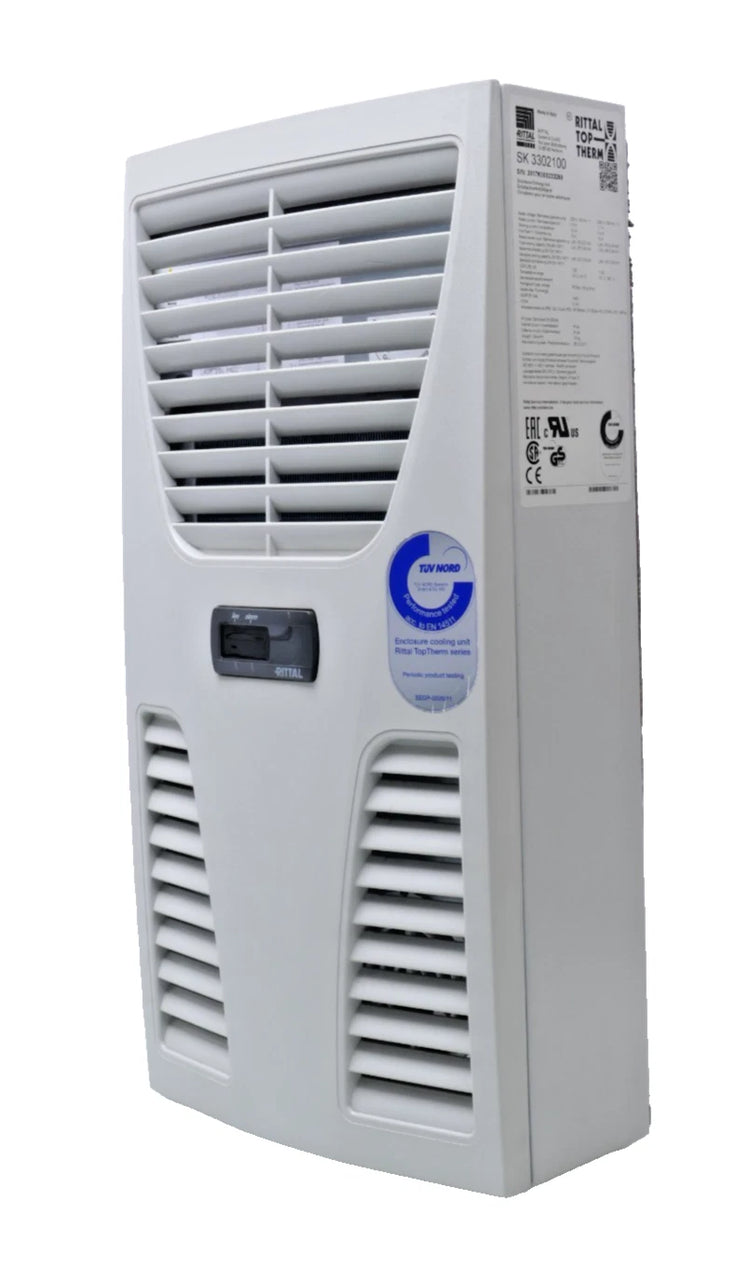

Rittal SK3302100 Top Therm Wall-Mounted Enclosure Cooling Unit
- Regular price
- $2,117.00
- Sale price
- $2,117.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SK3302100
Description
The Rittal SK3302100 is a Top Therm wall-mounted enclosure cooling unit designed to control heat buildup inside electrical enclosures. It operates on 230 V AC and provides up to 0.38 kW of cooling output at 60 Hz, with separate internal and external air circuits for efficient heat transfer.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Rittal |
| Category | Enclosure Cooling |
| Part Number | SK3302100 |
| Subcategory | Enclosure Air Conditioners |
| Series | Top Therm |
| Mounting | Wall Mounted |
| Supply Voltage | 230 V AC, 1~, 50/60 Hz |
| Temperature Control | Basic controller, factory setting +35°C |
| Temperature Setting Range | +30°C to +55°C |
| Operating Temperature | +10°C to +55°C |
| Refrigerant | R134a |
| Refrigerant Charge | 100 g |
| Rated Current | 1.6 A at 50 Hz; 1.7 A at 60 Hz |
| Protection Rating | IP34; UL Type 12 |
| Material | Sheet Steel |
| Dimensions | 280 W x 550 H x 140 D mm |
| Weight | 13 kg |
Information About SK3302100
The SK3302100 is a Rittal Top Therm cooling unit constructed from sheet steel with a RAL 7035 finish for wall-mounted enclosure applications. It uses a nano-coated condenser and R134a refrigerant with a 100 g charge. The unit features a basic temperature controller with a factory setting of +35°C and an adjustable setting range from +30°C to +55°C. It is supplied for 230 V single-phase operation and includes a plug-in terminal strip, drilling template, and assembly parts.
Key Features:
- Wall-Mounted Design: Designed for installation on the wall of electrical and industrial enclosures.
- Cooling Output: Provides up to 0.38 kW of cooling capacity at 60 Hz under L35/L35 conditions.
- AC Operation: Operates from a 230 V AC, single-phase power supply at 50/60 Hz.
- Air Throughput: Provides 310 m³/h external and 345 m³/h internal unimpeded airflow.
- Temperature Control: Uses a basic controller with a factory setting of +35°C and an adjustable range of +30°C to +55°C.
- Refrigerant System: Uses R134a refrigerant with a 100 g charge.
- Enclosure Protection: Provides IP34 protection for both the external and internal circuits.
- Operating Range: Designed for ambient operating temperatures from +10°C to +55°C.
The SK3302100 delivers the reliability and thermal management required for temperature control in electrical and industrial enclosures.
