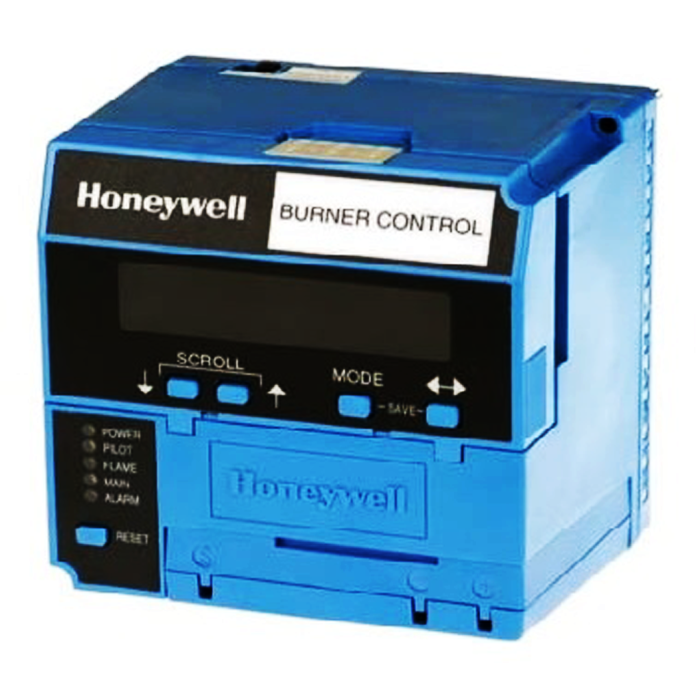

RM7824A1006 | Honeywell 7800 Series On Off Primary Burner Control
- Regular price
- $1,994.05
- Sale price
- $1,994.05
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RM7824A1006
Description
The Honeywell RM7824A1006 is a microprocessor-based on/off primary burner control designed for automatically fired single-burner applications. It supports intermittent pilot operation and provides integrated sequencing, flame supervision, and diagnostic functions for industrial combustion systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Burner Controls |
| Part Number | RM7824A1006 |
| Subcategory | Primary Burner Control Modules |
| Product Series | 7800 Series |
| Control Type | On/off primary control |
| Application | Single-burner systems |
| Fuel Type | Gas, oil, or combination |
| Pilot Type | Intermittent pilot |
| Pilot Flame Establishing Period | 4 or 10 seconds |
| Main Flame Establishing Period | Intermittent |
| Supply Voltage | 24 V DC |
| Flame Supervision | Via plug-in flame amplifier |
| Diagnostics | System and self-diagnostics |
| Status Indication | 5 LED indicators |
| Flame Loss Response | Selectable recycle or lockout |
| Required Subbase | Q7800 |
| Compatible Amplifiers | R7824, R7848 |
| Weight | 0.82 kg |
Information About RM7824A1006
The RM7824A1006 is part of Honeywell’s 7800 Series integrated burner management platform, engineered for safe and reliable control of industrial combustion equipment. It functions as a relay module and requires a compatible Q7800 wiring subbase and plug-in flame signal amplifier to operate. The control manages automatic burner sequencing, pilot ignition, flame monitoring, and safety interlocks while providing clear visual status through onboard LEDs. Designed for flexibility, it allows selection between recycle or lockout behavior following flame failure to match application safety requirements.
Key Features
- 7800 Series Burner Management Platform: Built on Honeywell’s proven 7800 Series architecture for advanced burner safety and control.
- Intermittent Pilot Operation: Supports controlled ignition sequences with selectable 4- or 10-second pilot flame establishing periods.
- Automatic Burner Sequencing: Manages startup, ignition, and shutdown sequences for single-burner applications.
- Selectable Flame Failure Response: Allows configuration for recycle or lockout on loss of flame to suit system safety policies.
- Advanced Diagnostics And Indication: Five onboard LEDs provide clear sequence status and assist with troubleshooting.
- Modular Flame Detection Support: Compatible with R7824 and R7848 plug-in flame amplifiers for flexible sensing options.
- Low-Voltage DC Operation: Operates on a 24 VDC supply for integration into modern control systems.
The RM7824A1006 delivers the reliability and precision required for safe intermittent pilot burner control in industrial combustion applications.
