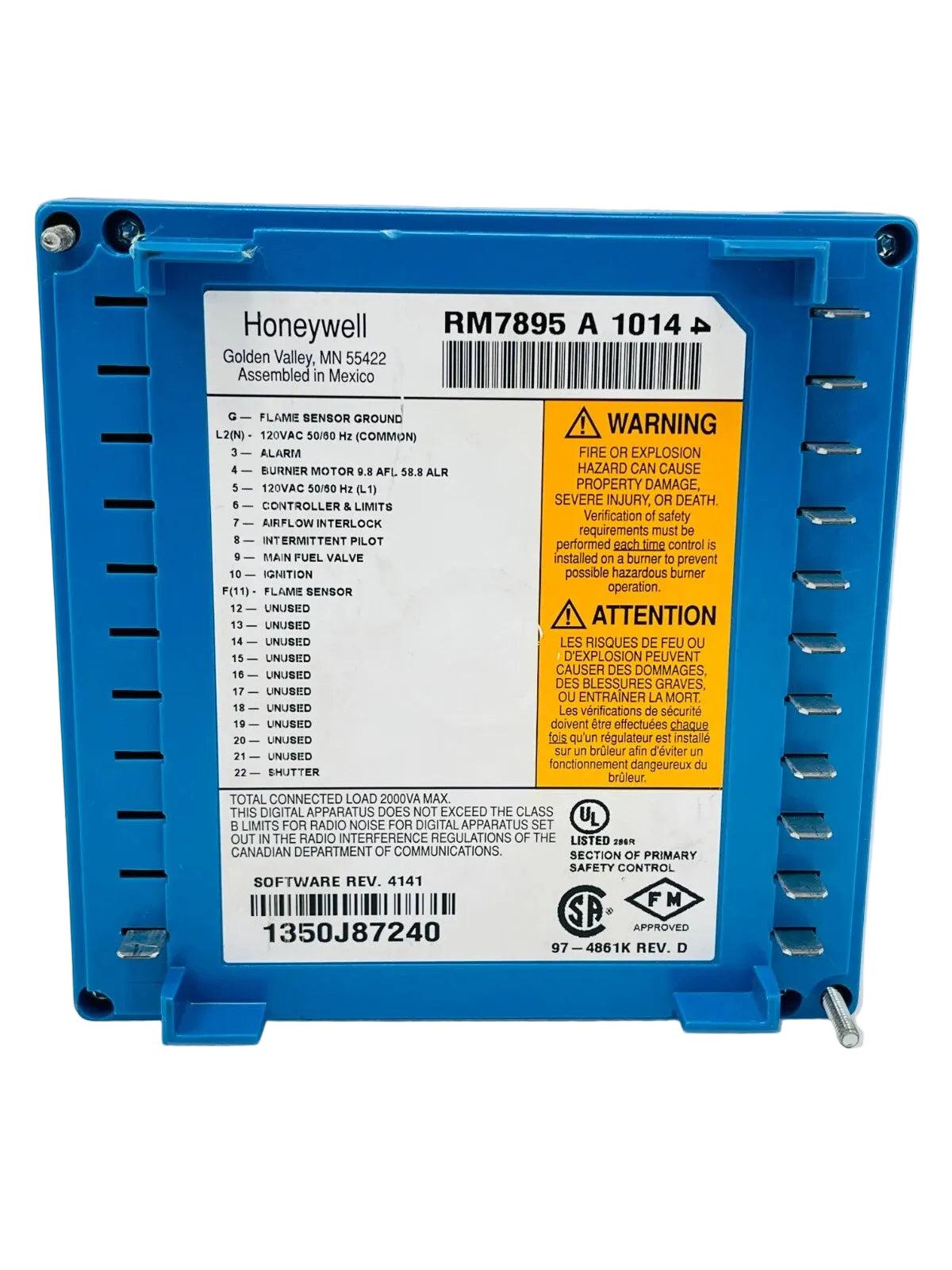

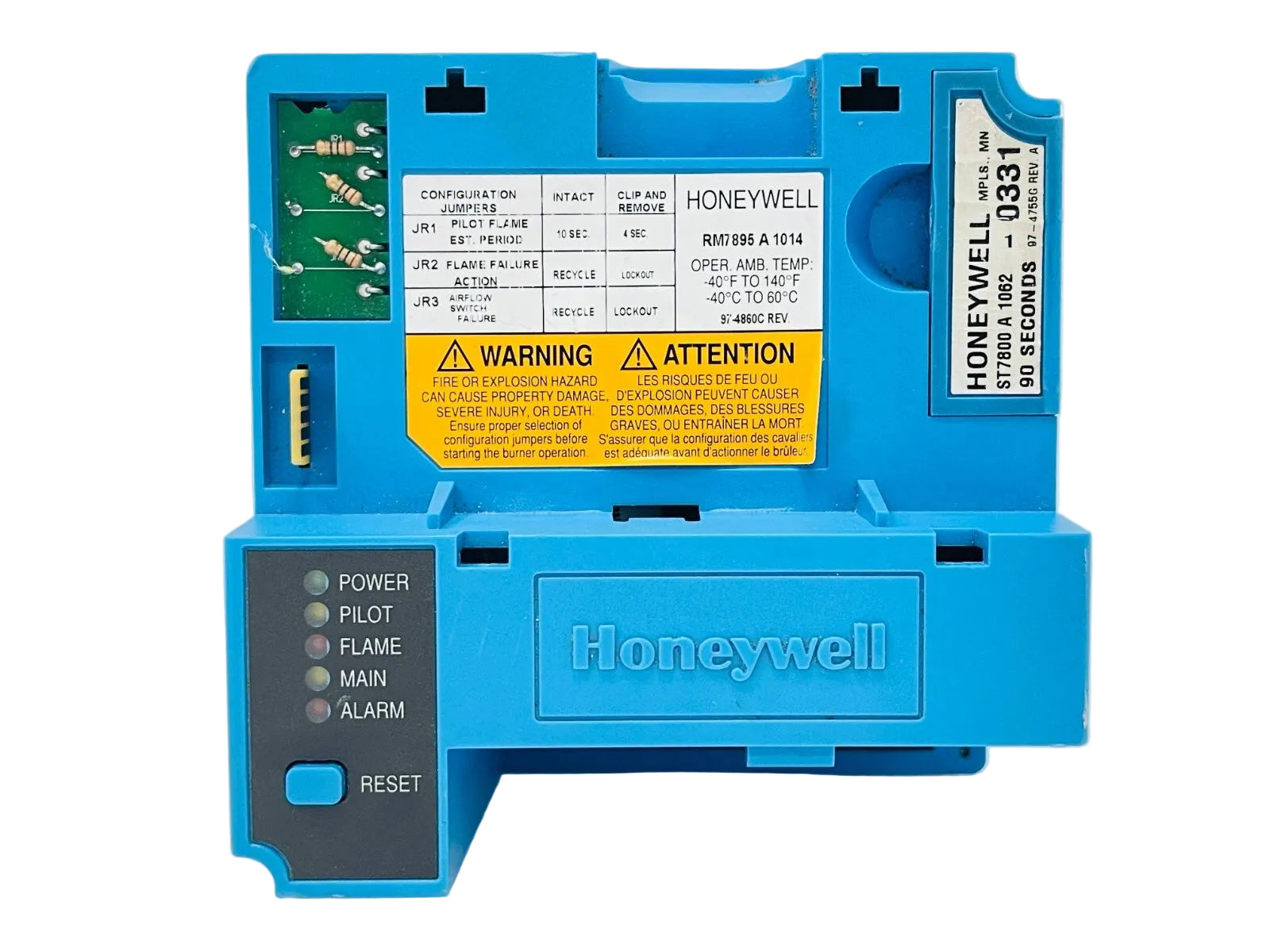

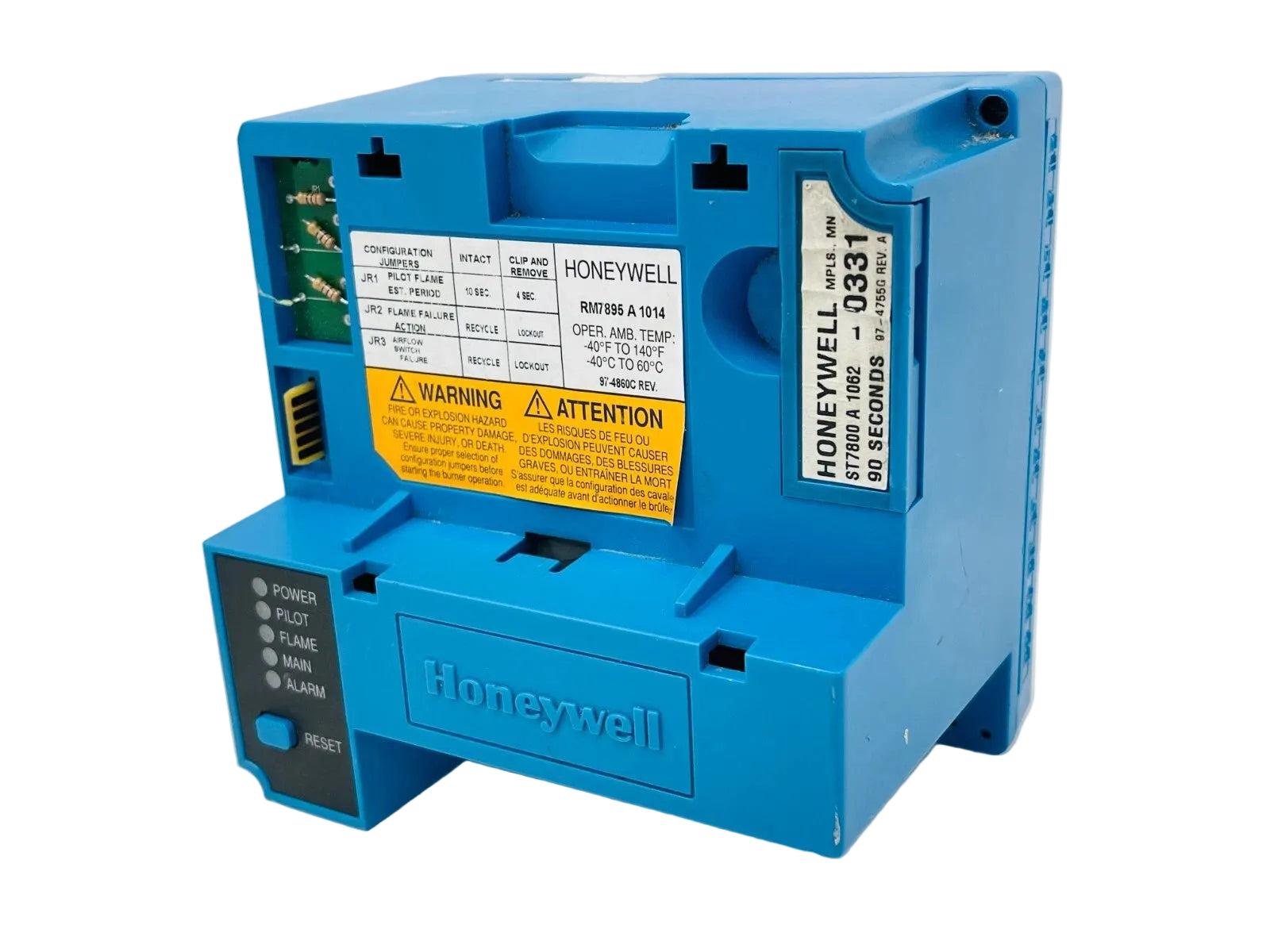

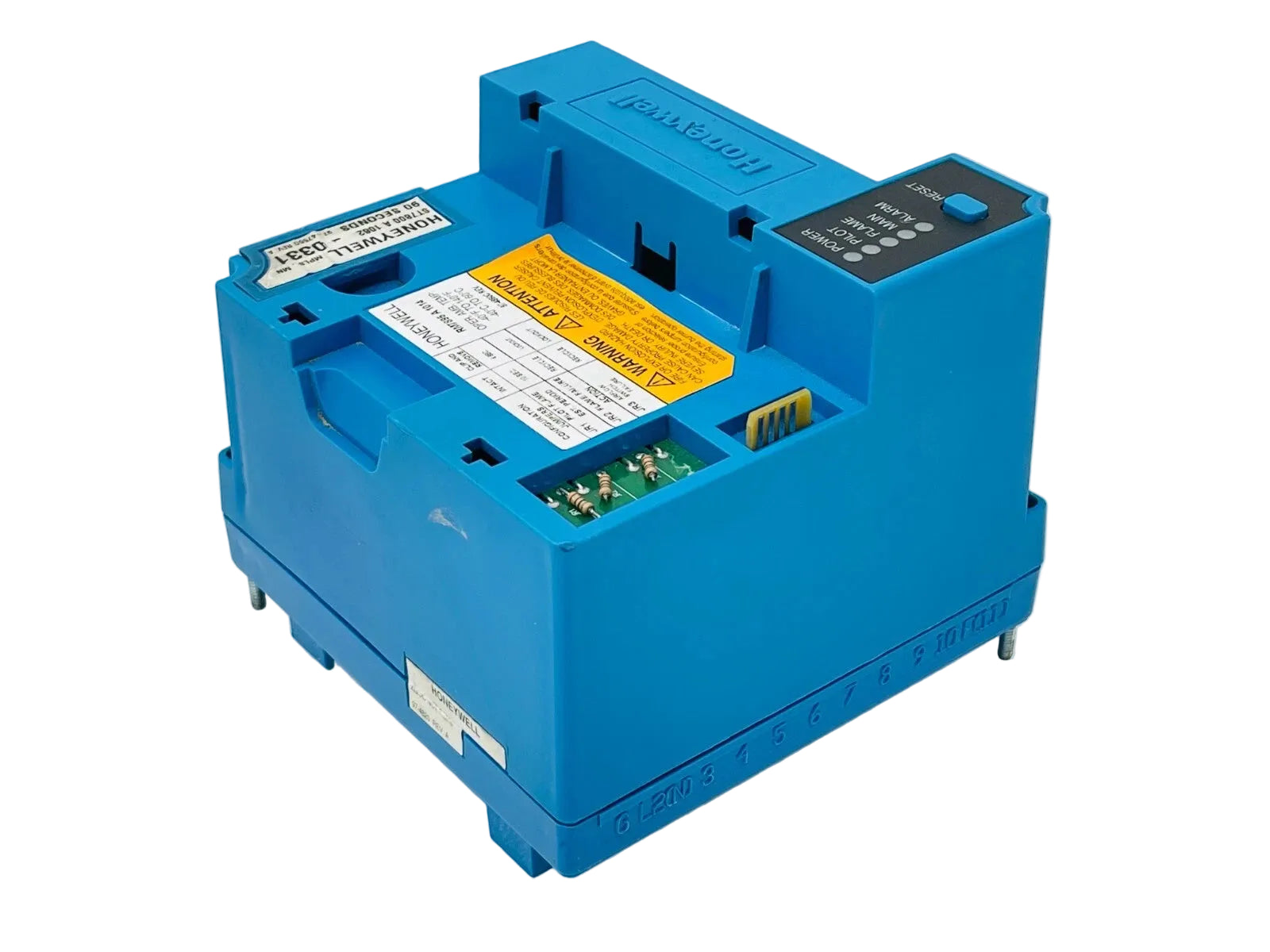

RM7895A1014 | Honeywell 7800 Series Intermittent Pilot Burner Control Relay Module
- Regular price
- $692.55
- Sale price
- $692.55
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RM7895A1014
Description
The Honeywell RM7895A1014 is a microprocessor-based primary burner control designed for on-off industrial burner applications with intermittent pilot operation. It provides advanced sequencing, flame supervision, diagnostics, and safety functions beyond conventional burner controls.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Burner Controls |
| Part Number | RM7895A1014 |
| Subcategory | Burner Control Relay Modules |
| Product Series | 7800 Series |
| Control Type | Intermittent pilot |
| Application | Industrial single-burner systems |
| Fuel Type | Gas, oil, coal, or combination |
| Supply Voltage | 120 V AC |
| Supply Frequency | 50/60 Hz |
| Pilot Flame Establishing Period | 4–10 seconds |
| Main Flame Establishing Period | Intermittent |
| Flame Amplifier | Interchangeable plug-in type |
| Diagnostics | Self-diagnostics and troubleshooting |
| Status Indication | 5 LED indicators |
| Memory | Nonvolatile memory |
| Safety Functions | Flame supervision, airflow switch check |
| Optional Interfaces | PC interface, display modules, annunciators |
| Reset Options | Local or remote reset (optional) |
| Mounting | Plug-in relay module |
| Weight | 2.8 lbs |
Information About RM7895A1014
The RM7895A1014 is part of the Honeywell 7800 Series burner management system developed for semi-automatically fired industrial burners. It functions as a relay module requiring a compatible subbase, flame amplifier, and prepurge timer to operate as a complete control system. The unit manages automatic burner sequencing, flame monitoring, and system interlocks while maintaining detailed operational and fault history in nonvolatile memory. Designed for flexible system expansion, it supports multiple optional communication, display, and diagnostic accessories.
Key Features
- 7800 Series Burner Management Platform: Built on Honeywell’s proven 7800 Series architecture for advanced industrial burner safety and control.
- Microprocessor-Based Control: Provides precise burner sequencing, flame supervision, and logic control beyond traditional electromechanical systems.
- Intermittent Pilot Operation: Supports selectable pilot and main flame establishing periods for controlled burner ignition.
- Advanced Diagnostics And Indication: Five onboard LEDs display sequence status, while integrated diagnostics assist with troubleshooting and maintenance.
- Interchangeable Flame Amplifiers: Allows flexible adaptation to different flame detection methods and burner configurations.
- Nonvolatile Memory Storage: Retains sequencing status and historical fault data after power loss for improved system analysis.
- Expandable Communication Options: Supports optional PC interfaces, remote displays, annunciators, and report generation tools.
The RM7895A1014 delivers the reliability and precision required for safe, flexible, and diagnostic-rich industrial burner control applications.
