RM7895C1012 | Honeywell On-Off Primary Control with Pre-Purge, Burner Sequencing & Flame Supervision
- Regular price
- $939.00
- Sale price
- $939.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: RM7895C1012
Description

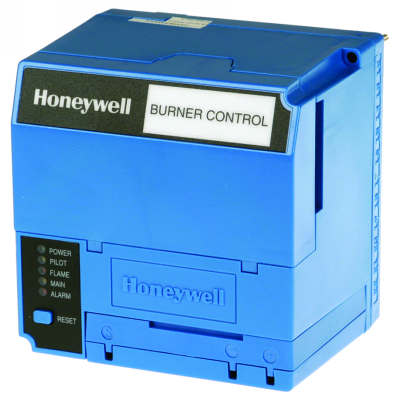

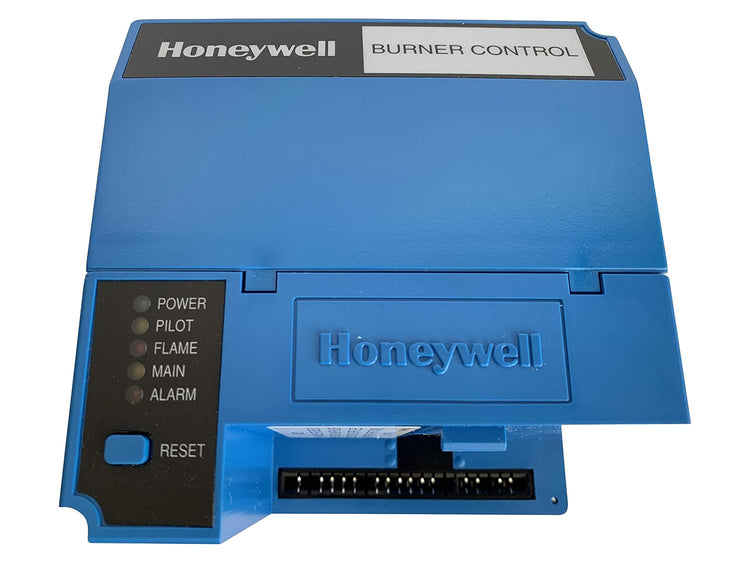

The Honeywell RM7895C1012 is an on-off primary control module with pre-purge timing for automatically fired single-burner systems. It manages burner sequencing, flame supervision, and diagnostics to ensure safe and reliable combustion operation. This control is designed for integration into gas, oil, or combination fuel burner applications requiring precise safety monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Burner Controls |
| Part Number | RM7895C1012 |
| Subcategory | Primary Controls |
| Voltage | 120 Vac (+10/-15%), 50/60 Hz |
| Power Dissipation | 10 W maximum |
| Maximum Connected Load | 2000 VA |
| Fusing | 15 A max, Type SC fast-blow or equivalent |
| Control Type | On-Off with Pre-Purge |
| Flame Supervision | Via interchangeable flame amplifiers |
| System Indication | 5 LED status indicators |
| Diagnostics | Built-in self-diagnostics and troubleshooting |
| Ambient Operating Temperature | -40°F to +140°F (-40°C to +60°C) |
| Storage Temperature | -40°F to +150°F (-40°C to +66°C) |
| Humidity | Up to 85% RH, non-condensing |
| Vibration Tolerance | 0.5G continuous |
| Approvals | UL Listed, CSA Certified, FM Approved, IRI Acceptable, FCC Part 15 Class B compliant |
| Optional Interfaces | PC interface, keyboard display, data control bus, expanded annunciator |
| Required Components | Subbase, amplifier, purge timer |
| Application | Gas, oil, or combination fuel burners |
| Weight | 2.0 lbs (approx.) |
Information About RM7895C1012
The RM7895C1012 is part of Honeywell’s RM7800 Series relay modules, a microprocessor-based family of controls built for modern burner management. It provides on-off operation with pre-purge functionality and requires a subbase, amplifier, and purge timer for complete system integration. Designed for compatibility with multiple flame amplifiers and optional display or communication modules, it supports flexible installation across industrial and commercial burner systems. With built-in LED sequence indicators and self-diagnostics, the RM7895C1012 offers dependable monitoring and troubleshooting in critical safety environments.
Key Features:
- On-Off Burner Control: Provides sequencing and supervision for single-burner applications.
- Pre-Purge Function: Ensures safe chamber clearing before burner ignition.
- Flame Supervision: Monitors flame presence via interchangeable plug-in amplifiers.
- System Diagnostics: Integrated self-diagnostic and troubleshooting capabilities.
- LED Indicators: Five LEDs provide visual feedback of system sequence status.
- Optional Modules: Supports PC interface, remote display, annunciator, and data control bus integration.
- Safety Approvals: UL, CSA, FM, and IRI certified for compliance with industrial safety standards.
- Operating Range: Reliable performance from -40°F to 140°F with up to 85% non-condensing humidity.
The RM7895C1012 delivers the reliability and safety required for combustion management in industrial and commercial burner systems.
