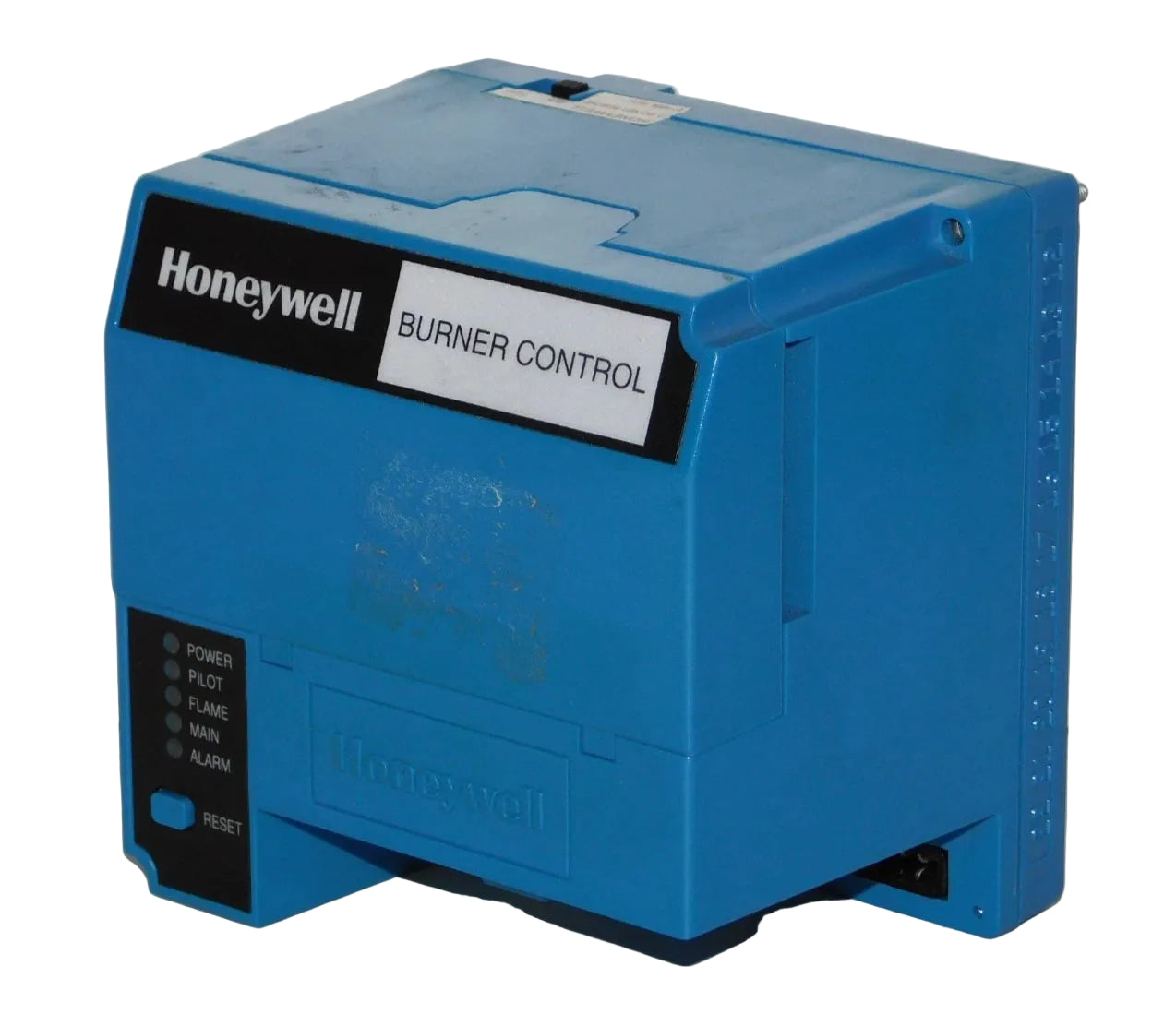

RM7896C1010 | Honeywell 7800 Series On-Off Primary Burner Control Interrupted Pilot
- Regular price
- $2,077.65
- Sale price
- $2,077.65
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RM7896C1010
Description
The Honeywell RM7896C1010 is an on-off primary burner control designed for automatic sequencing and flame supervision in industrial combustion systems. It supports interrupted pilot operation with pre- and post-purge functions to ensure safe and controlled burner operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Combustion Control |
| Part Number | RM7896C1010 |
| Subcategory | Burner Control Modules |
| Series | 7800 Series |
| Control Type | On-Off Primary Control |
| Pilot Type | Interrupted Pilot |
| Main Valve Operation | Delayed Main Valve |
| Supply Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Pre-Purge | Required (via purge card) |
| Post-Purge Time | 15 seconds |
| Main Flame Establishing Period | 10 seconds |
| Pilot Flame Establishing Period | 4 or 10 seconds (selectable) |
| Flame Amplifier Type | Interchangeable Plug-In |
| Indicators | 5 Status LEDs |
| Memory Type | Non-Volatile |
| Operating Temperature Range | -40 °F to 140 °F |
| Required Accessories | Subbase, Flame Amplifier, Purge Timer |
| Weight | 2.0 lbs |
Information About RM7896C1010
The RM7896C1010 is part of the Honeywell 7800 Series, which is widely used in commercial and industrial burner management systems. This relay module is designed to manage on-off burner applications with interrupted pilot operation, supporting safe ignition and shutdown sequences. It provides automatic burner sequencing, flame supervision, airflow switch checking, and delayed main valve control to meet demanding safety requirements. The module supports multiple optional accessories, including display modules, communication interfaces, and annunciators, allowing system expansion and enhanced diagnostics.
Key Features
- Automatic Burner Sequencing: Manages the complete burner startup and shutdown sequence, including pre-purge, ignition, flame proving, and post-purge stages.
- Interrupted Pilot Control: Supports interrupted pilot applications with selectable pilot flame establishing periods for flexible system configuration.
- Advanced Flame Supervision: Uses interchangeable plug-in flame amplifiers to monitor flame presence and respond rapidly to flame failure conditions.
- Comprehensive Diagnostics: Built-in system and self-diagnostics with five LED indicators provide clear visual status and troubleshooting information.
- Non-Volatile Memory Storage: Retains lockout status, sequencing information, and history files after power loss for improved fault analysis.
- Selectable Safety Responses: Allows configuration for recycle or lockout on loss of flame or airflow to match application safety requirements.
- Expandable System Integration: Supports optional keyboard display modules, remote annunciation, Modbus or data bus interfaces, and report generation tools.
The RM7896C1010 delivers the reliability and precision required for safe burner management in industrial combustion and heating systems.
