RMS-6T-EXP | Potter Explosion-Proof Single Action Pull Station, NEMA 4X Rated
- Regular price
- $652.00
- Sale price
- $652.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

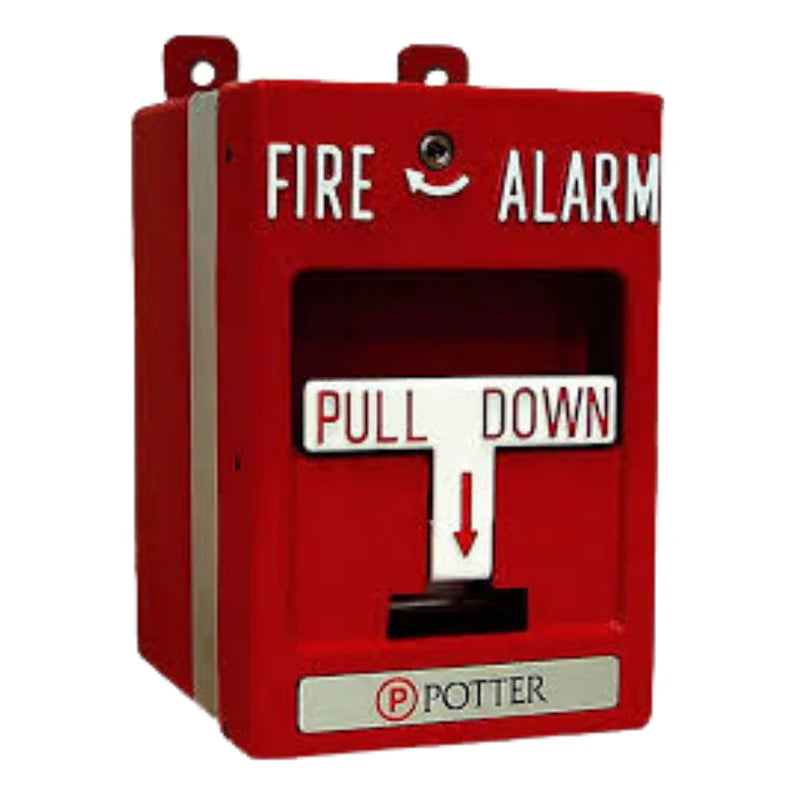

Product Description P/N: RMS-6T-EXP
Description
The Potter RMS-6T-EXP is a single-action explosion-proof manual pull station designed for use in hazardous and demanding environments. Built with a high-strength die-cast alloy housing, it ensures durability and reliable activation of fire alarm systems in industrial and marine applications. With UL, FM, CSFM, and MEA approvals, the RMS-6T-EXP provides both safety and compliance in extreme conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Fire Safety |
| Part Number | RMS-6T-EXP |
| Subcategory | Pull Station |
| Type | Manual Fire Alarm Pull Station |
| Style | Single Action |
| Construction | Die-Cast Alloy |
| Operation | Explosion-Proof / Weatherproof |
| Contacts | DPDT (Double Pole Double Throw) |
| Switch Capacity | 10 Amp Snap Action |
| Connection Type | Terminal Connection |
| Access Options | Hex Screw or Optional Key Lock |
| Optional Features | Lift-and-Pull Mechanism, Break Glass Cover |
| Compliance | UL, FM, CSFM, MEA, ADA |
| NEMA Rating | 4X |
| Color Options | Red (standard), multiple optional finishes |
| Certifications | Marine Approved |
| Dimensions | 4 × 3.2 × 5 in |
| Weight | 4.27 lbs |
Information About RMS-6T-EXP
The RMS-6T-EXP is part of Potter’s RMS-EX-WP series of explosion- and weather-proof manual pull stations. Constructed with a rugged die-cast metal alloy, it is rated for Class I, Division I, Groups B, C, and D, as well as Class II and III hazardous environments. This unit supports outdoor installations with its NEMA 4X weatherproof rating, ensuring long-lasting operation in harsh climates. The device is widely compatible with standard fire alarm systems and offers flexible features such as terminal connections, DPDT contacts, and optional accessories for added functionality.
Key Features:
- Explosion-Proof Design: Certified for Class I, II, and III hazardous locations with UL, FM, and CSFM approvals.
- Weatherproof Protection: NEMA Type 4X rating ensures reliable performance in outdoor and marine environments.
- Durable Housing: Die-cast alloy construction with high-gloss red enamel for maximum strength and visibility.
- Reliable Switching: Equipped with a 10-amp snap-action DPDT switch for consistent operation.
- Flexible Access Options: Available with hex screw or optional institutional key lock access.
- Optional Accessories: Lift-and-pull mechanism and break glass cover can be added for enhanced security.
- Multiple Color Options: Offered in red, blue, green, yellow, white, black, gray, purple, and orange finishes.
The RMS-6T-EXP delivers the reliability and precision required for manual fire alarm activation in hazardous and outdoor environments.
