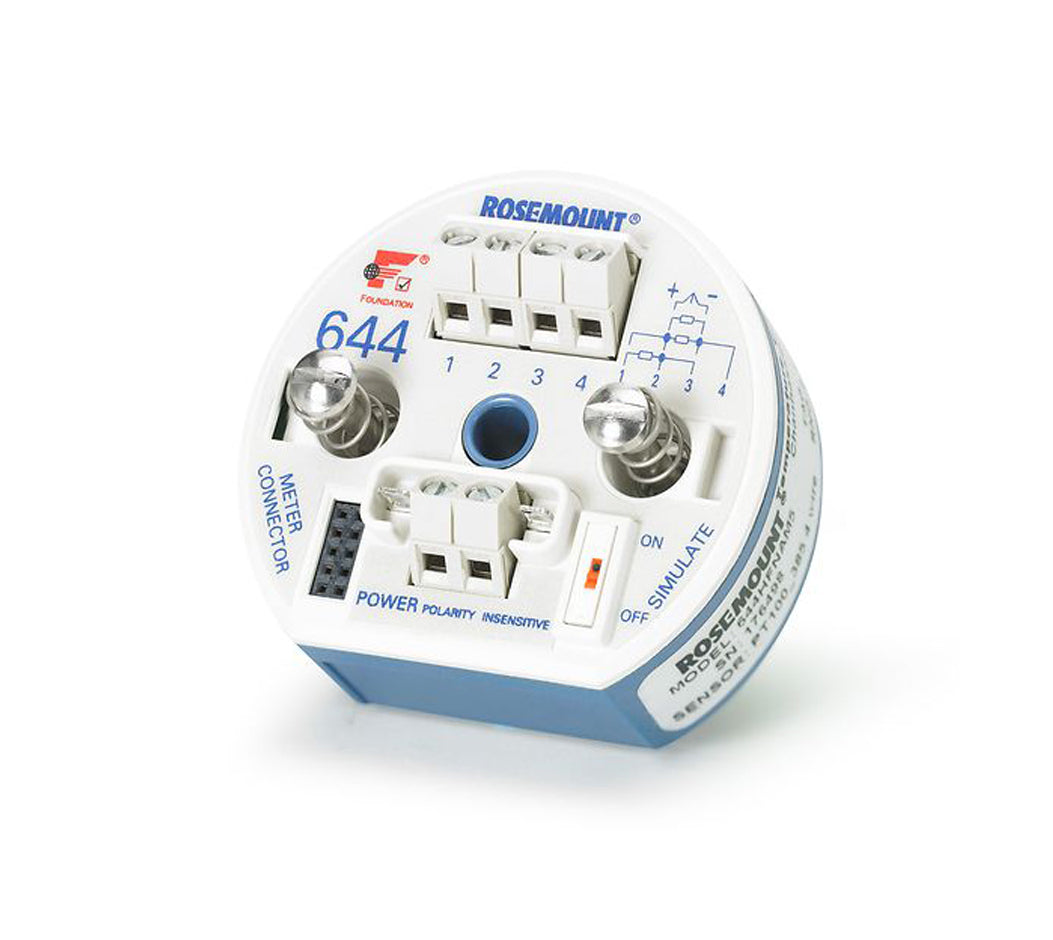

Rosemount 644HANAQ4 Smart Temperature Transmitter 4–20 mA HART
- Regular price
- $2,025.00
- Sale price
- $2,025.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 644HANAQ4
Description
The Rosemount 644HANAQ4 is a smart temperature transmitter designed to convert compatible temperature sensor inputs into a standardized 4–20 mA signal with HART digital communication. This configuration uses a DIN A head-mount design with a single sensor input and includes a three-point calibration certificate for documented measurement verification.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Rosemount |
| Category | Process Instrumentation |
| Part Number | 644HANAQ4 |
| Subcategory | Temperature Transmitters |
| Product Series | Rosemount 644 |
| Product Type | Smart Temperature Transmitter |
| Mounting Configuration | DIN A Head Mount |
| Sensor Configuration | Single Sensor Input |
| Output Signal | 4–20 mA with HART Digital Signal |
| Wiring Configuration | 2-Wire |
| Sensor Input | User-Selectable |
| Sensor Terminal Rating | 42.4 VDC |
| Update Time | ≤0.5 Second |
| Humidity Range | 0–95% RH |
| Calibration Option | Q4 Three-Point Calibration with Certificate |
| Calibration Points | 0%, 50%, and 100% |
| Hazardous Location Approval | NA – No Hazardous Location Approval |
| Weight | 0.2 lb (0.09 kg) |
Information About 644HANAQ4
The 644HANAQ4 is a Rosemount 644 Series smart temperature transmitter configured for DIN A head mounting and single-sensor measurement. It accepts user-selectable temperature sensor inputs and provides a two-wire 4–20 mA output with HART digital communication for integration into industrial process control systems. The head-mount construction allows installation in compatible connection or universal heads, with optional hardware supporting DIN-rail mounting applications. The Q4 option specifies three-point calibration at 0%, 50%, and 100% of the configured range with a calibration certificate.
Key Features:
- DIN A Head Mount: Compact configuration designed for installation in compatible temperature sensor connection heads.
- Single Sensor Input: H configuration provides one user-selectable temperature sensor input.
- 4–20 mA Output: Produces a standard analog current signal for industrial monitoring and control equipment.
- HART Communication: Superimposes digital HART communication on the 4–20 mA signal for configuration and diagnostics.
- Two-Wire Operation: Uses a two-wire transmitter architecture for power and process signal transmission.
- Q4 Calibration Option: Includes three-point calibration at 0%, 50%, and 100% with a calibration certificate.
- Input/Output Isolation: Transmitter circuitry provides electrical isolation between sensor input and process output.
- Fast Measurement Update: Provides an update time of 0.5 second or less for temperature measurement response.
The 644HANAQ4 delivers the reliability and precision required for industrial temperature measurement, process monitoring, and control-system integration.
