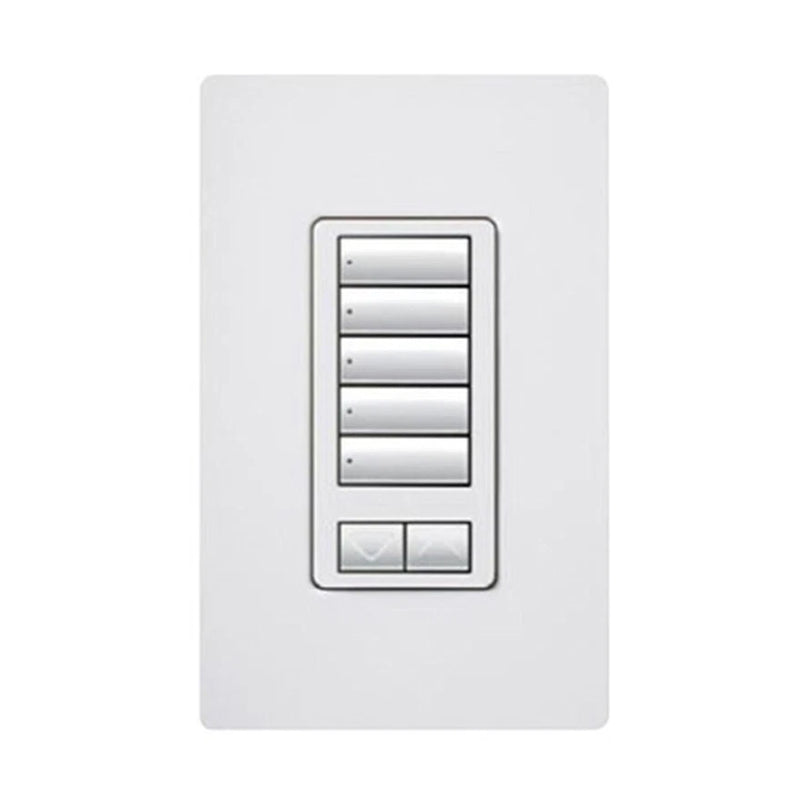

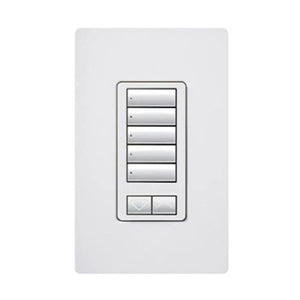

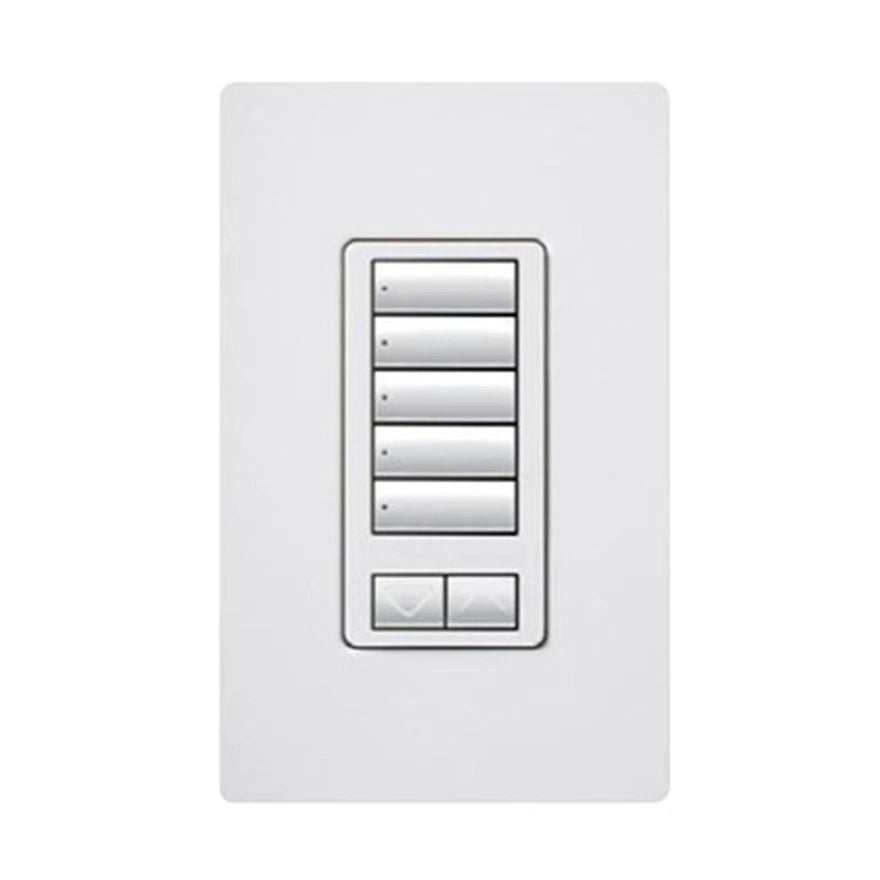

RRD-W5BRL-WH | Lutron RadioRA2 seeTouch Wall-Mount Designer Keypad – 5 Button Raise/Lower White
- Regular price
- $479.00
- Sale price
- $479.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: RRD-W5BRL-WH
Description
The RRD-W5BRL-WH is a 5-button wall-mounted keypad designed for the Lutron RadioRA2 system. It provides homeowners intuitive control over lights, shades, and motorized screens with large, backlit buttons for easy use day or night. Its elegant design allows for customization of button configuration and engraving after installation.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Lutron |
| Category |
Lighting
|
| Part Number | RRD-W5BRL-WH |
| Subcategory | Wall-Mount Keypads |
| Series | RadioRA2 seeTouch Keypads |
| Power Input | 120 V~, 50/60 Hz, 0.5 A |
| Typical Power Consumption | 0.6 W (backlights medium, 2 LEDs on) |
| Communication Frequency | 431.0 – 437.0 MHz RF |
| Operating Temperature | 0 – 40 °C (32 – 104 °F) |
| Humidity Range | 0 – 90 % non-condensing |
| Mounting Requirements | U.S. wallbox, 3½ in (89 mm) depth recommended |
| Wiring Requirements | Neutral wire required |
| Approvals | UL, CSA, FCC, IC, COFETEL, ANATEL |
| ESD Protection | IEC 61000-4-2 compliant |
| Surge Protection | IEEE C62.41-1991 compliant |
| Weight | Approx. 0.5 lbs (not specified exact) |
Information About RRD-W5BRL-WH
The RRD-W5BRL-WH is a RadioRA 2 seeTouch keypad compatible only with Lutron RadioRA2 systems, not RadioRA 2 Select. It communicates via RF within a 30 ft range to a repeater and features durable backlit buttons with upward angled engraving for enhanced readability. The keypad supports power failure memory to restore settings after outages. It requires a neutral wire and mounts in standard U.S. wallboxes with dedicated Lutron wallplates for a seamless finish.
Key Features:
- Five Large Buttons: for controlling up to five scenes or functions with raise/lower capabilities
- Backlit Engraving: unique upward angled engraving enhances visibility in low light
- Customizable Layout: button count, color, and engraving can be changed post-installation
- RF Communication: operates between 431.0 MHz and 437.0 MHz within 30 ft of a repeater
- Power Failure Memory: retains previous state after power interruptions
- Safety Approvals: UL, CSA, FCC, IC, COFETEL, ANATEL certified
- ESD and Surge Protection: tested to IEC and IEEE standards for durability
- Installation Ready: fits standard U.S. wallboxes and requires neutral wiring
The RRD-W5BRL-WH offers elegant, reliable control for RadioRA2 smart home lighting.
