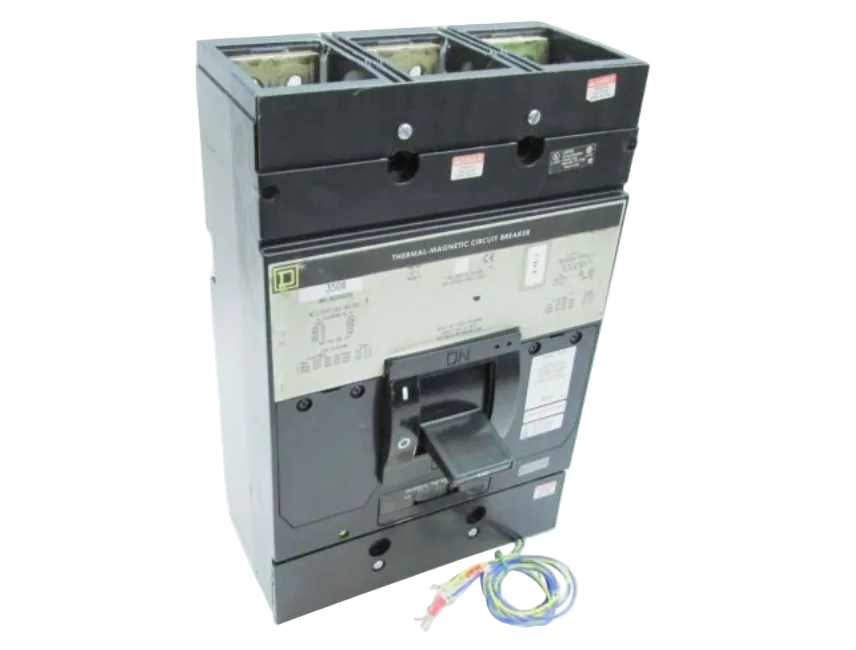

MAL36000M | Square D 1000A Molded Case Circuit Breaker 3-Pole 600VAC
- Regular price
- $7,499.00
- Sale price
- $7,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MAL36000M
Description
The Square D MAL36000M is a high-capacity molded case circuit breaker engineered for overcurrent protection in large industrial and commercial power systems. Rated at 1000 amps with support for up to 600 VAC and 250 VDC, this 3-pole breaker is designed for demanding electrical distribution and motor control applications. Its magnetic-only trip mechanism provides fast fault response in high-power circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D (Schneider Electric) |
| Category | Circuit Breaker |
| Part Number | MAL36000M |
| Subcategory | Molded Case Circuit Breaker |
| Rated Current | 1000 A |
| Rated Voltage (AC) | Up to 600 VAC |
| Rated Voltage (DC) | Up to 250 VDC |
| Number of Poles | 3 |
| Trip Type | Magnetic only |
| Application Type | Industrial and commercial power protection |
| Mounting Style | Panel / switchgear mounted |
| Operating Mechanism | Manual (RT-1 compatible) |
| Protection Function | Short-circuit protection |
| Weight | 32.35 lbs |
Information About MAL36000M
The MAL36000M is part of Square D’s heavy-duty molded case circuit breaker lineup developed for large-frame electrical installations. It features a robust construction suitable for switchgear, motor control centers, and industrial distribution panels. This breaker utilizes a magnetic-only trip unit, making it ideal for motor circuits where thermal overload protection is provided separately. Its design supports manual operation, often paired with an RT-1 operating mechanism for controlled switching of high-current loads.
Key Features:
- 1000 Amp Current Rating: Supports high-load industrial power distribution systems.
- High Voltage Capability: Rated for up to 600 VAC and 250 VDC applications.
- 3-Pole Configuration: Provides comprehensive protection across three-phase circuits.
- Magnetic-Only Trip Unit: Enables rapid response to short-circuit conditions.
- Motor Circuit Protection: Commonly used where external thermal overload devices are installed.
- Heavy-Duty Frame Design: Built for long-term operation in demanding environments.
- Manual Operating Mechanism: Compatible with RT-1 style operators for large breakers.
The MAL36000M delivers the reliability and precision required for high-current industrial power protection applications.
