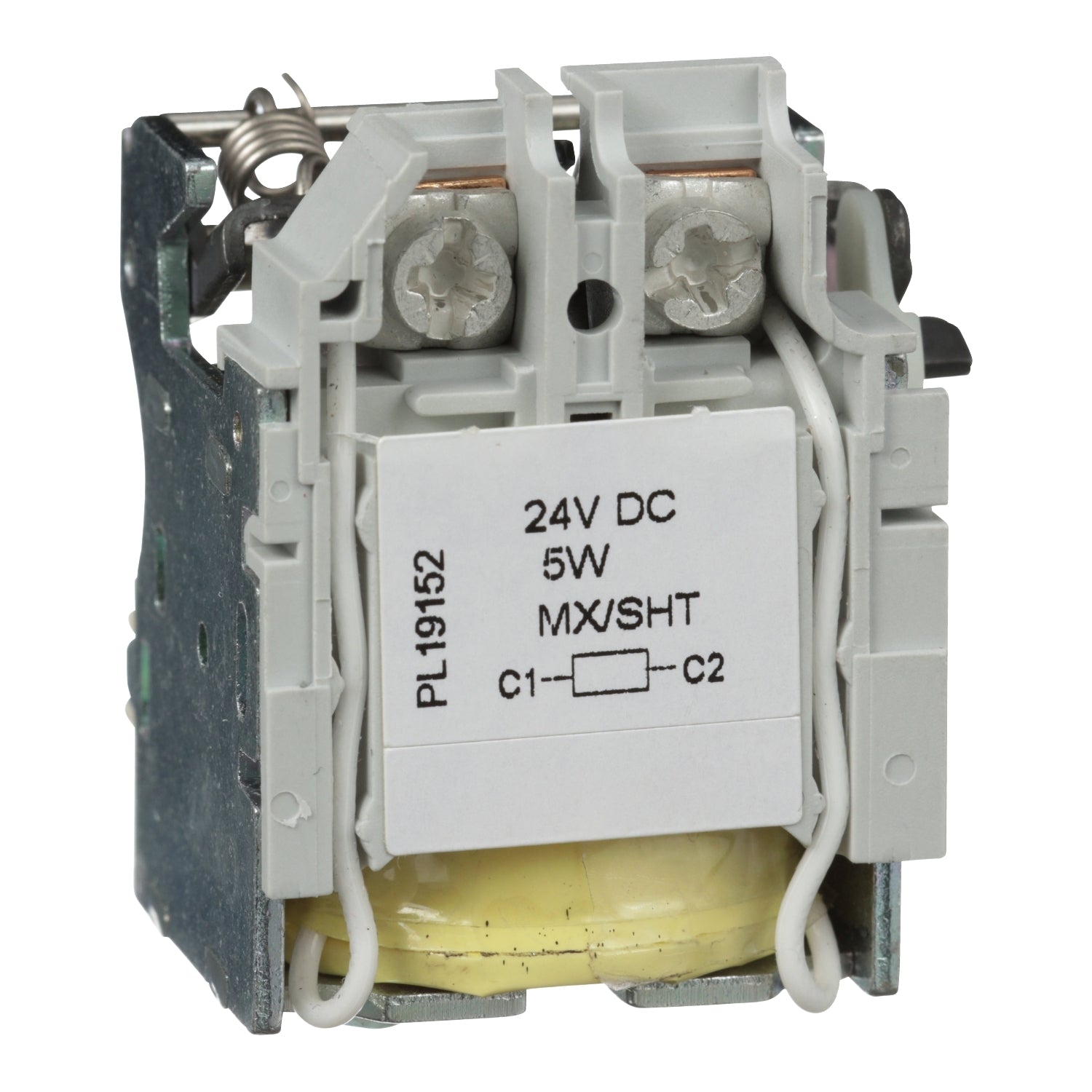

S29390 | Schneider Electric Circuit Breaker Accessory
- Regular price
- $107.00
- Sale price
- $107.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: S29390
Description
S29390 is a circuit breaker accessory designed for use with PowerPacT™ H-, J-, and L-frame circuit breakers. These accessories enhance functionality by allowing the circuit breaker to trip when the control voltage exceeds 70% of its rated voltage. The accessory supports impulse type signals of ≥ 20 ms or maintained control signals. AC shunt trips can also be utilized for ground-fault protection when paired with a Class I ground-fault sensing element. The accessory features a continuous duty rated coil, ensuring reliable performance in various electrical protection applications.
Technical Specifications
|
Part # |
S29390 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product or Component Type |
Shunt trip |
|
Rated voltage |
24 V DC |
|
Tightening torque |
12.39 lbf.in (1.4 N.m) 0.00…0.00 in² (0.82…2.5 mm²) (AWG 18...AWG 14) |
Information About S29390
The S29390 circuit breaker accessory is designed for use with PowerPacT™ H-, J-, and L-frame circuit breakers, which are integral to safeguarding electrical systems from potential damage due to overloads and short circuits. H- and J-frame variants of these circuit breakers are equipped with either thermal-magnetic or Micrologic™ electronic trip units, offering versatile protection capabilities. In contrast, L-frame circuit breakers exclusively feature Micrologic electronic trip units.
The S29390 accessory is a Shunt Trip (MX) device designed to trip the circuit breaker automatically when the control voltage exceeds 70% of its rated voltage. This function is activated by impulse types of ≥ 20 ms or by maintained control signals. AC shunt trips serve a dual purpose, being particularly suitable for ground-fault protection when coupled with a Class I ground-fault sensing element.
Key features of the S29390 include a continuous duty rated coil, ensuring reliable operation over extended periods without compromising performance. This accessory is crucial in enhancing the functionality of PowerPacT™ circuit breakers by providing additional safety measures against electrical faults.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
