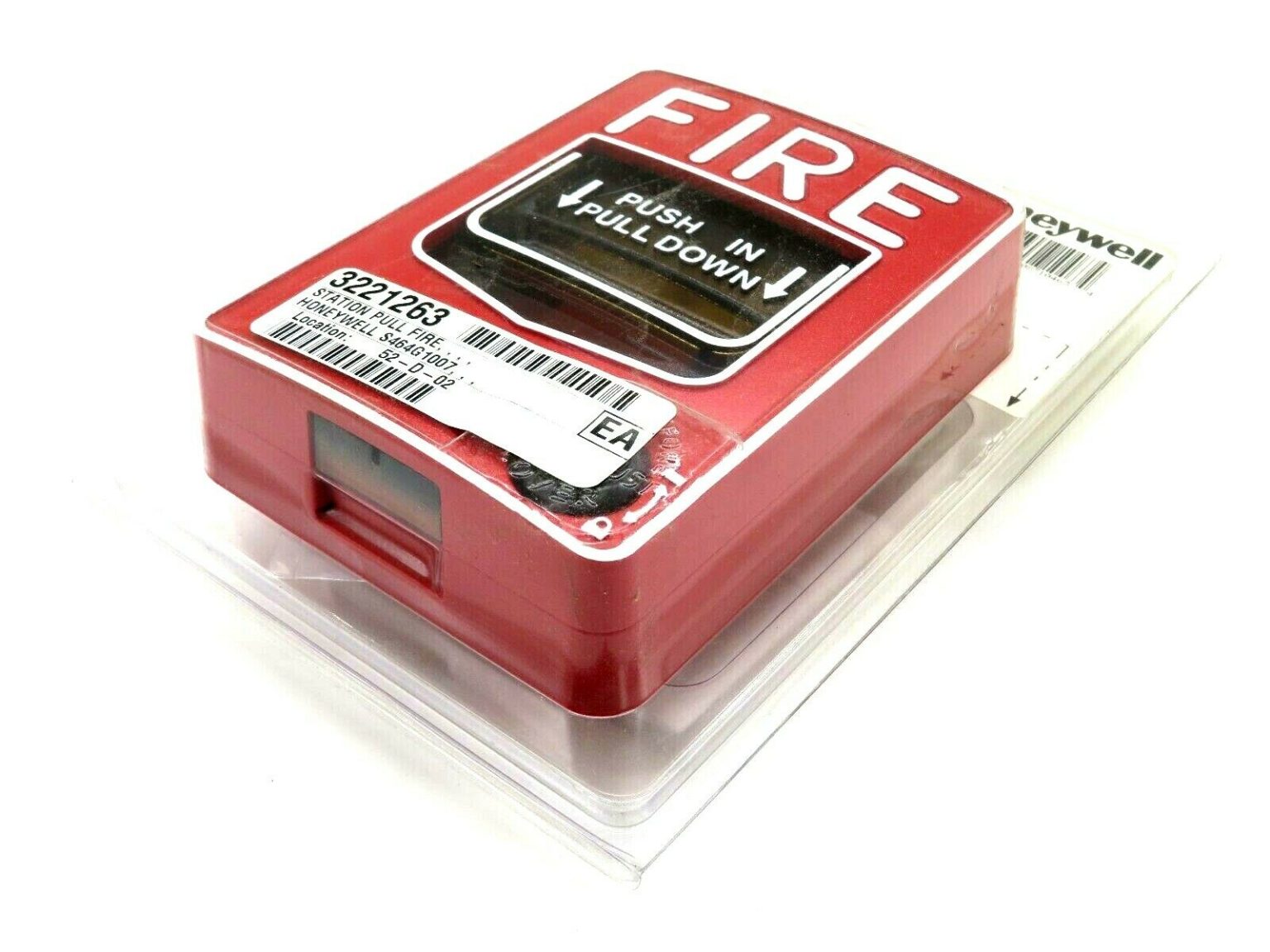

S464G1007 | Honeywell Dual-Action Addressable Fire Alarm Pull Station
- Regular price
- $407.00
- Sale price
- $407.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: S464G1007
Description
The Honeywell S464G1007 is a dual-action, addressable pull station designed for integration with intelligent fire alarm control panels. It provides precise alarm location reporting, key-reset functionality, and a durable polycarbonate housing for reliable fire safety operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Fire Safety |
| Part Number | S464G1007 |
| Subcategory | Fire Alarm |
| Type | Dual-Action Pull Station |
| Construction | Red polycarbonate housing |
| Operation | Dual-action with key reset |
| Programming | Rotary dials for address setting |
| Protocol | CLIP and FlashScan compatible |
| Status Indicator | Built-in dual-color LED |
| Voltage | 24 VDC nominal (max 28 VDC) |
| Max Loop Current | 375 µA |
| Mounting Options | Surface or semi-flush with SB-10/SB-I/O or electrical box |
| Temperature Range | 32 °F to 120 °F (0 °C to 49 °C) |
| Humidity Range | 10%–93% RH, non-condensing |
| Approvals | UL S749, ULC S749, MEA 67-02-E Vol. II, CSFM 7150-1130:209, FM Approved |
| Accessibility | Braille text included on station handle |
| Weight | 0.49 lbs |
Information About S464G1007
The S464G1007 is an intelligent dual-action pull station, part of Honeywell’s fire alarm accessory line. It is engineered with rotary dial programming for address setting and supports both CLIP and FlashScan communication protocols. Designed primarily for indoor use, it meets ADA guidelines with a maximum activation force of 5 lbs and features built-in dual-color LED indicators for system feedback. The station is UL, ULC, MEA, CSFM, and FM approved, making it suitable for a wide range of commercial and institutional fire safety applications.
Key Features:
- Dual-Action Activation: Requires two motions for added safety and to reduce false alarms.
- Addressable Design: Allows fire panels to pinpoint the exact alarm location.
- Key Reset Function: Enables authorized reset after activation.
- Built-In LED Indicator: Dual-color LED displays status and flashes during normal operation.
- Rotary Dial Programming: Easy address assignment for CLIP or FlashScan systems.
- ADA-Compliant Design: Meets ADAAG requirements for activation force and usability.
- Flexible Mounting Options: Supports surface, semi-flush, or electrical box mounting.
- Approvals: UL, ULC, MEA, CSFM, and FM listed for broad compliance.
The S464G1007 delivers the reliability and clarity required for effective fire alarm initiation in commercial facilities.
