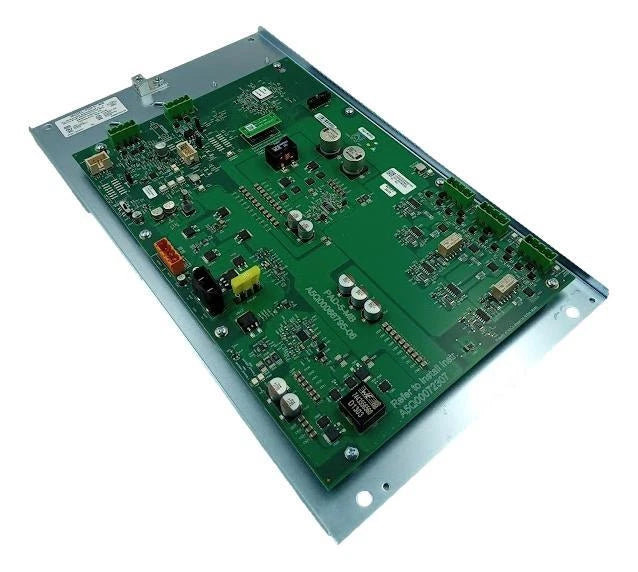

S54339-A5-A1 | Siemens PAD-5-MB Main Board for Notification Power Extender
- Regular price
- $1,057.00
- Sale price
- $1,057.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: S54339-A5-A1
Description
The Siemens S54339-A5-A1 is the PAD-5-MB main board designed for use with PAD-5 notification-extender units in Siemens Modular fire alarm systems. It provides remote auxiliary power for signaling appliances while supporting expansion of multiple notification appliance circuits (NACs). The module ensures reliable communication with the XDLC loop card and delivers robust functionality for life safety applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Fire Alarm Systems |
| Part Number | S54339-A5-A1 |
| Subcategory | Notification Appliance Extender Module |
| Model | PAD-5-MB |
| System Application | Siemens Modular Fire Alarm Panels (X-Series) |
| Communication | P2 loop via XDLC card |
| Addressing | 1 system address, programmed via DPU |
| NAC Circuits | 4 Class A or 8 Class B (configurable) |
| Wiring Isolation | Integrated Class X device |
| Relays | Trouble relay for supervision |
| Power Input | AC powered |
| Battery Support | Temperature-compensated charging circuits |
| Indicators | Diagnostic LEDs for status/faults |
| Capacity | Up to 32 PAD-5 boards per XDLC |
| Compatibility | Siemens XDLC and PAD-5 notification extenders |
| Weight | 1.25 lbs |
Information About S54339-A5-A1
The S54339-A5-A1 is the PAD-5-MB main board for Siemens PAD-5 notification power extender units, engineered to expand notification capacity in X-Series modular fire alarm control systems. It connects directly to the P2 loop of a Siemens XDLC (Device Loop Card) and can support up to 32 interconnected PAD-5 units or expansion boards per loop. With one programmable address set through the Siemens DPU device programmer, the PAD-5-MB enables flexible and scalable notification power distribution. Its design incorporates advanced features such as Class A/B NAC wiring support, Class X isolation, onboard diagnostics, and temperature-compensated battery charging, making it a critical element in expanding large-scale fire alarm installations.
Key Features:
- Remote Auxiliary Power: Supplies additional power to notification appliances in Siemens fire alarm systems.
- Expandable NAC Support: Provides four Class A or eight Class B circuits with mix-and-match configuration.
- XDLC Loop Integration: Connects via P2 loop to Siemens Modular fire-alarm control panels.
- Addressable Programming: Supports one system address configured through the Siemens DPU programmer.
- Built-In Isolation: Class X wiring isolator enhances circuit fault tolerance.
- Battery Charging: Includes temperature-compensated charging circuits for reliable backup power.
- System Monitoring: Equipped with “trouble” relay outputs for remote supervision.
- Diagnostic LEDs: Provides clear visual indicators for status and fault conditions.
The S54339-A5-A1 delivers the reliability and scalability required for extending notification circuits in Siemens Modular fire alarm systems.
