S7800A1142 | Honeywell 7800 Series Keyboard Display Module 40-Character
- Regular price
- $697.00
- Sale price
- $697.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

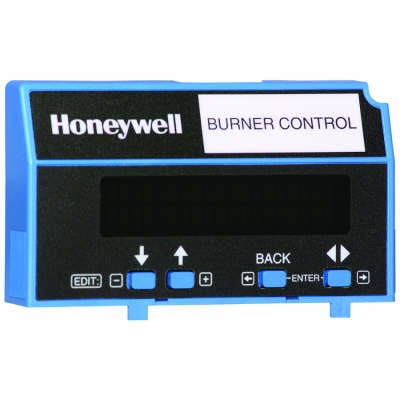

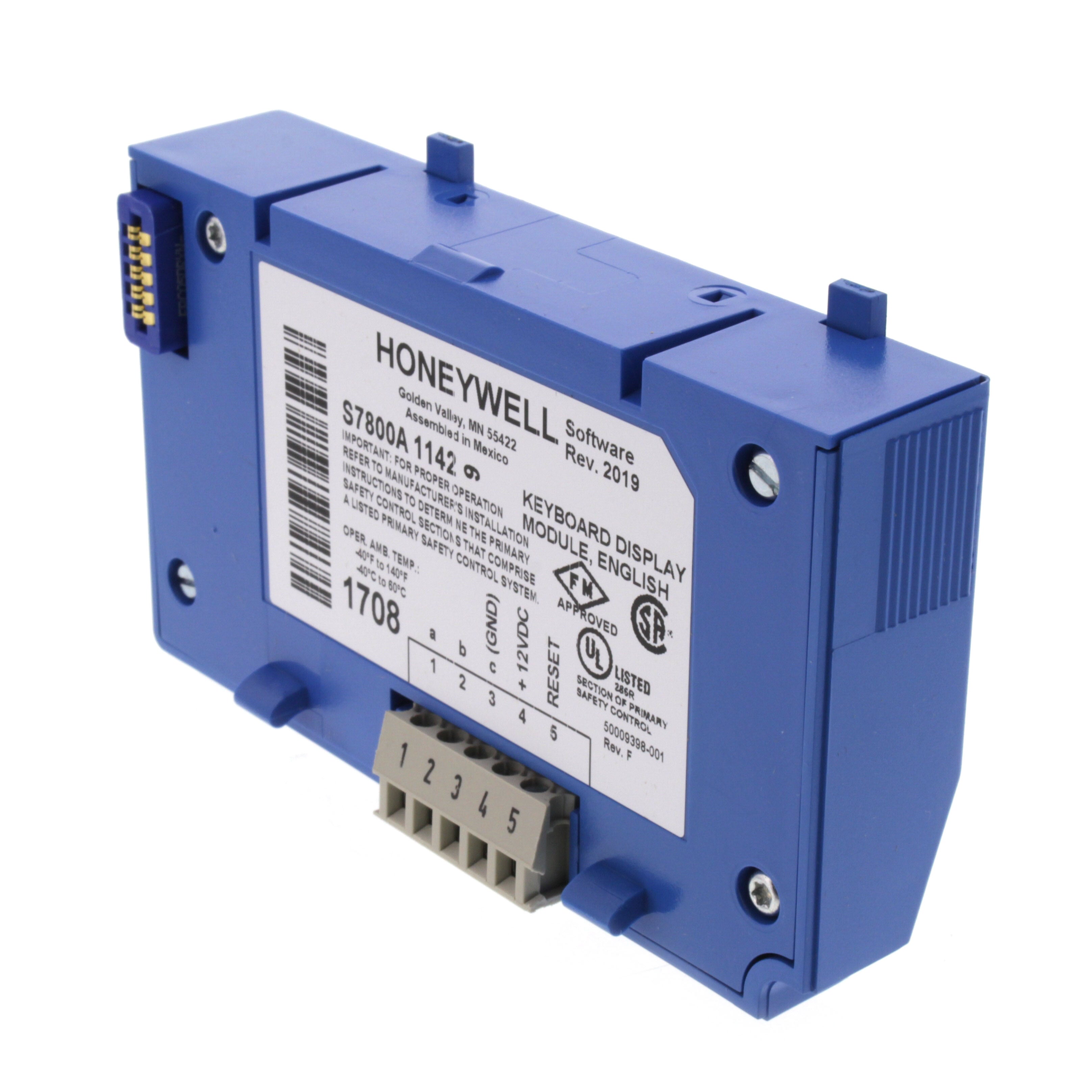

Product Description P/N: S7800A1142
Description
The Honeywell S7800A1142 is a keyboard display module designed for use with the Honeywell 7800 Series relay modules. It features a 40-character English language LCD display for system setup, monitoring, and diagnostics, operating on 13 VDC full-wave rectified power for dependable burner management communication.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Burner Management Systems |
| Part Number | S7800A1142 |
| Subcategory | Keyboard Display Module |
| Series Compatibility | Honeywell 7800 Series |
| Display Type | 40-Character English LCD Display |
| Application | System Configuration, Status Monitoring, and Diagnostics |
| Power Supply | 13 VDC Peak, Full-Wave Rectified (+20/-15%) |
| Power Consumption | 7 W, 2 VA |
| Interface Type | Plug-In Connection to Relay Module |
| User Input | Keypad Interface for Setup and Navigation |
| Operating Temperature Range | -40°F to +140°F (-40°C to +60°C) |
| Vibration Rating | 0.5 G Environment |
| Communication Capability | Direct Connection to 7800 Series Control Base |
| Compliance | FCC Part 15, Class B (Emissions) |
| Housing Material | Industrial Thermoplastic Enclosure |
| Mounting Style | Front-Mounted to Relay Module |
| Protection Type | Panel-Mounted, Indoor Rated |
| Dimensions (W × H × D) | 123 mm × 73 mm × 23 mm (4.84 in × 2.87 in × 0.91 in) |
| Weight | 0.25 lb (4 oz / 0.11 kg) |
Information About S7800A1142
The S7800A1142 is part of Honeywell’s trusted 7800 Series of flame safeguard and burner control systems, providing a user-friendly interface for system configuration, real-time monitoring, and diagnostics. Its 40-character alphanumeric display offers clear communication of burner status, faults, and operating parameters in English. Designed for compatibility with the full line of 7800 Series relay modules, this keyboard display module simplifies setup through menu-driven programming and immediate fault retrieval without external tools. The durable enclosure and broad operating temperature range ensure reliable performance in industrial and commercial burner management environments. With FCC Class B certification, the S7800A1142 ensures low electromagnetic interference and compliance with industrial communication standards.
Key Features:
- 40-Character LCD Display: Provides clear English text for setup, status, and diagnostics.
- Full 7800 Series Compatibility: Interfaces directly with all Honeywell 7800 relay modules for seamless integration.
- Menu-Driven Programming: Simplifies system configuration and reduces commissioning time.
- Low Power Consumption: Operates at 13 VDC full-wave rectified with only 7W draw.
- Durable Industrial Design: Engineered for reliable operation in harsh burner room environments.
- Wide Temperature Range: Operates from -40°F to +140°F for indoor or mechanical room installations.
- Real-Time Fault Display: Allows quick identification of lockout conditions and system faults.
- Plug-and-Play Connection: Directly attaches to 7800 Series control bases without additional wiring.
- FCC Class B Certified: Complies with emission standards for low electrical interference.
- Compact Form Factor: Lightweight and easy to install in tight control panels.
The S7800A1142 delivers the reliability and precision required for modern burner management systems, providing intuitive control, efficient setup, and dependable operational feedback.
