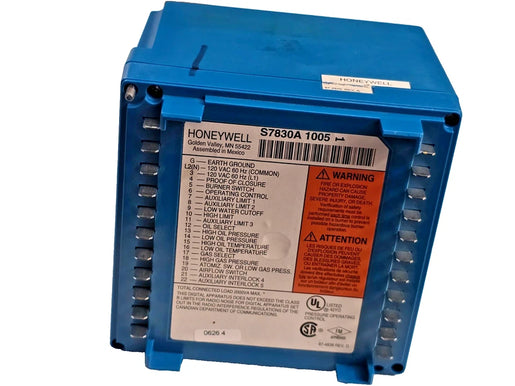

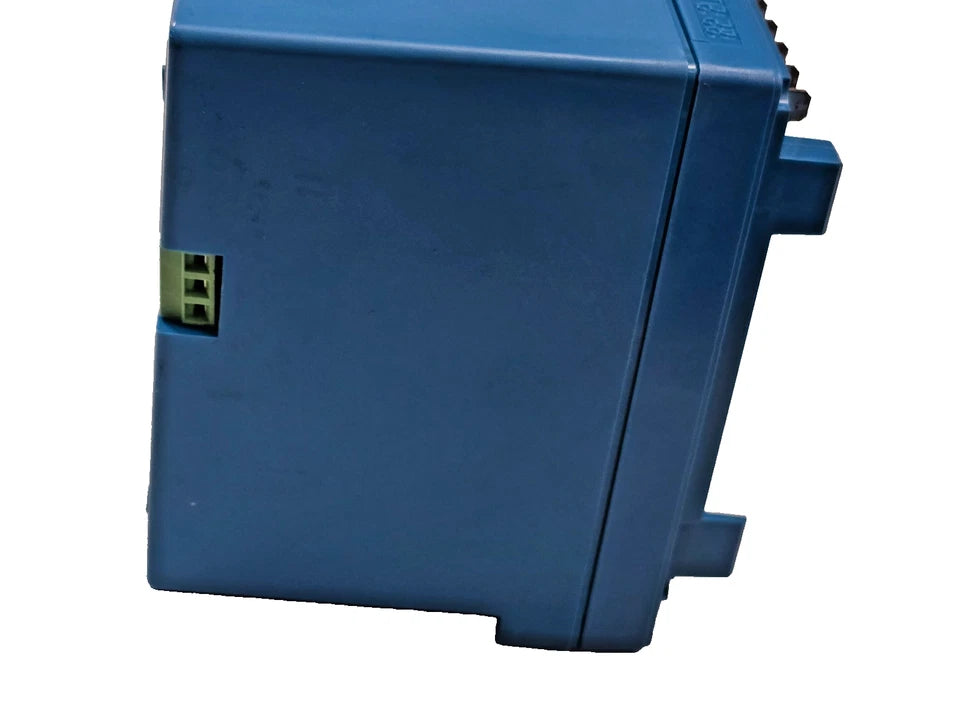

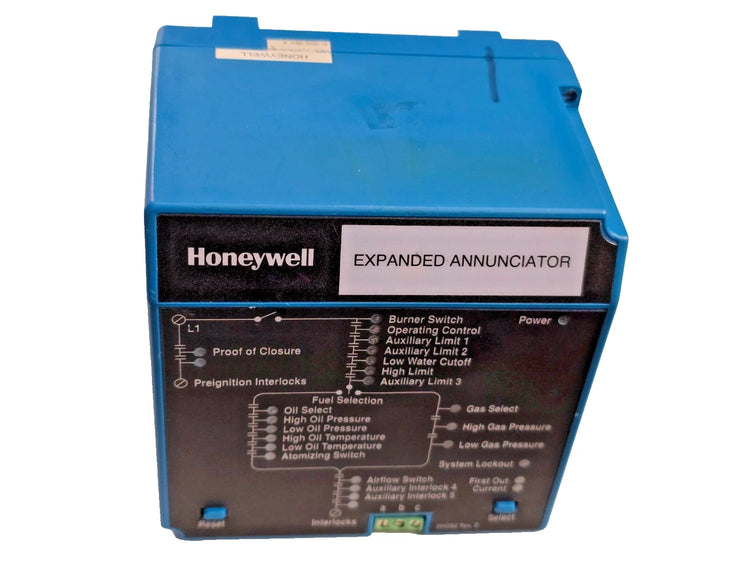

S7830A1005 | Honeywell Expanded Annunciator Sub Base 120 VAC Blue NEMA 4
- Regular price
- $4,295.00
- Sale price
- $4,295.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: S7830A1005
Description
The Honeywell S7830A1005 is a microprocessor-based expanded annunciator designed for use with the 7800 Series relay modules. It provides first-out annunciation, sequencing, and system diagnostics to support troubleshooting and safe burner management operation. Engineered for reliability, it features a rugged NEMA 4 enclosure and a 120 VAC power input for demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Controls & Indicators |
| Subcategory | Indicator/Display |
| Part Number | S7830A1005 |
| Type | Expanded Annunciator |
| Mounting | Sub Base |
| Voltage | 120 VAC |
| Frequency | 50/60 Hz (±10%) |
| Color | Blue |
| Enclosure Rating | NEMA 4 |
| Mounting Dimensions (H × W × D) | 5 × 5 × 5-5/16 to 6-9/64 in. |
| Shipping/Storage Temperature (F) | –40°F to +140°F |
| Shipping/Storage Temperature (C) | –40°C to +60°C |
| Monitored Contact Points | 21 |
| Status Indicators | 26 LEDs |
| Compatibility | Honeywell 7800 Series Relay Modules |
| Communication | Interface-capable |
| KDM Support | Yes (with S7800A1142) |
Information About S7830A1005
The S7830A1005 is part of Honeywell’s advanced 7800 Series control platform, offering enhanced annunciation capabilities for burner and combustion systems. This expanded annunciator monitors up to 21 contact points, providing real-time status through a structured LED array that clearly indicates the flow of line voltage across limits, interlocks, and control circuits. Designed with an intuitive display layout, it allows operators to quickly pinpoint system conditions and identify first-out faults to reduce downtime. Built for durability and field reliability, the S7830A1005 is housed in a NEMA 4 enclosure, making it suitable for harsh indoor environments where moisture, dust, or mechanical impact may be present. Its sub-base mounting design allows easy integration into existing control panels using the Q7800A or Q7800B universal mounting subbases. The annunciator also supports communication interface capability and works with the S7800A1142 Keyboard Display Module (KDM) for programmable messages and enhanced diagnostics.
Key Features:
- 26-LED status array: Provides clear indication of system conditions and voltage flow.
- First-out annunciation: Identifies initial failure points for faster troubleshooting.
- Supports 7800 Series relay modules: Integrates seamlessly with Honeywell burner controls.
- NEMA 4 enclosure: Suitable for demanding industrial environments.
- 21 monitored contact points: Delivers comprehensive system oversight.
- Compatible with Q7800 universal subbases: Simplifies installation and replacement.
- KDM support: Enables programmable limit/interlock messages when used with S7800A1142.
- LED operational test: Allows functional verification of annunciator display.
The S7830A1005 delivers the reliability and precision required for advanced burner management diagnostics and annunciation.
