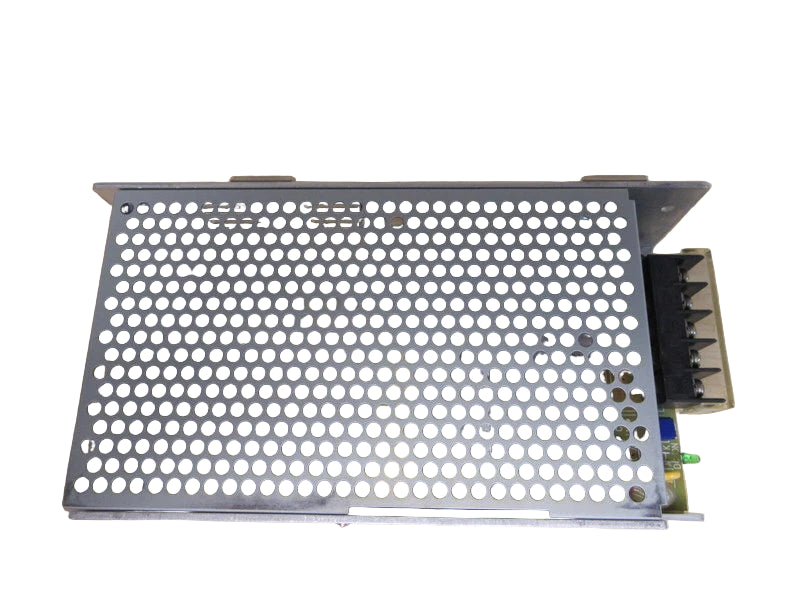

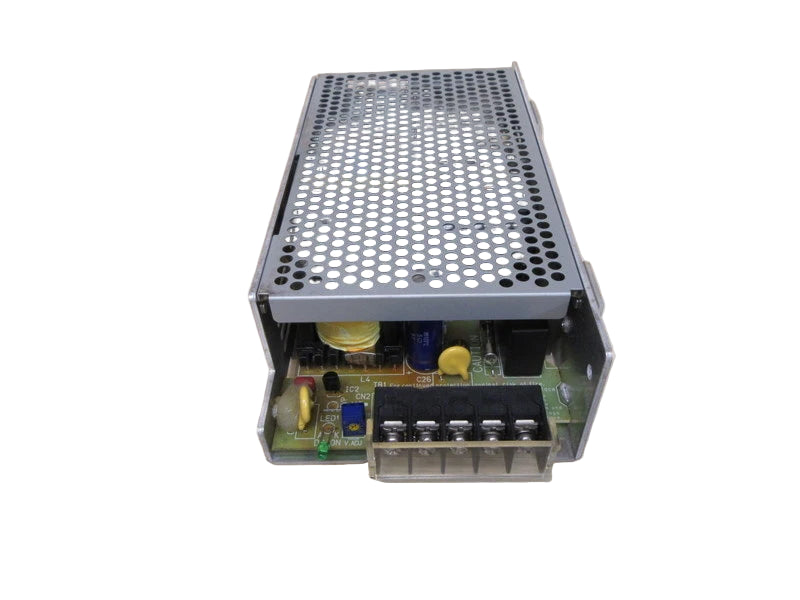

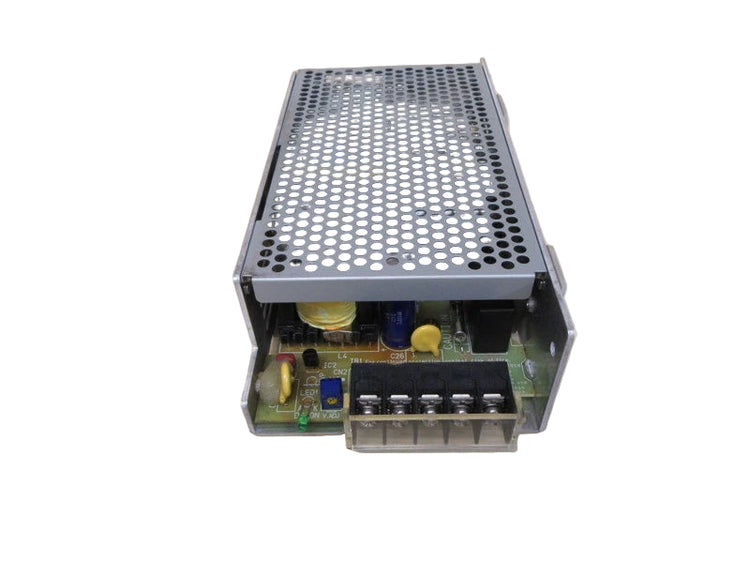

S82J-15024D | Omron S82J Series 24 VDC 6.5 A Single-Phase Industrial Power Supply
- Regular price
- $512.00
- Sale price
- $512.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: S82J-15024D
Description
The Omron S82J-15024D is a single-phase AC to DC power supply designed to deliver stable 24 VDC output for industrial automation and control systems. With dual input voltage capability (100–120/200–240 VAC) and a rated output current of 6.5 A, it provides reliable and efficient power conversion in a compact, durable enclosure. Featuring screw terminal connections and an indicator LED, it ensures simple installation and clear operation status visibility.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | S82J-15024D |
| Subcategory | Power Supplies |
| Series | S82J Series |
| Type | Single-Phase AC to DC Power Supply |
| Input Voltage Range | 100–120 VAC / 200–240 VAC (selectable) |
| Input Frequency | 50/60 Hz |
| Input Current | 3.5 A (100–120 VAC) / 2.1 A (200–240 VAC) |
| Rated Output Voltage | 24 VDC |
| Rated Output Current | 6.5 A |
| Rated Output Power | 150 W |
| Output Voltage Adjustment Range | ±10% of rated voltage |
| Output Indicator | LED (ON when output voltage is present) |
| Efficiency | Typically 80% or higher |
| Ripple Voltage | ≤ 100 mVp-p |
| Protection Functions | Overload, Overvoltage, Short-Circuit |
| Cooling Method | Natural Convection |
| Connection Type | Screw Terminal |
| Mounting Type | Panel Mount / DIN Rail (via optional bracket) |
| Insulation Resistance | ≥ 100 MΩ (500 VDC) |
| Dielectric Strength | 2,000 VAC for 1 minute (input to output) |
| Operating Temperature Range | -10°C to +60°C (derating above 45°C) |
| Storage Temperature Range | -25°C to +85°C |
| Operating Humidity | 10–90% RH (non-condensing) |
| Vibration Resistance | 10–55 Hz, 0.75 mm amplitude for 2 hours in X/Y/Z directions |
| Shock Resistance | 300 m/s², 3 times each in X/Y/Z directions |
| Protection Rating | IP20 (open frame) |
| Compliance | CE, UL, CSA, RoHS Certified |
| Weight | Approx. 0.85 kg (1.87 lb) |
Information About S82J-15024D
The S82J-15024D belongs to Omron’s S82J Series of general-purpose power supplies, developed for stable and noise-free DC output in industrial environments. This model supports both low and high input voltages (100–240 VAC), automatically selecting the appropriate range for worldwide compatibility. It delivers a 24 VDC, 6.5 A output suitable for powering PLCs, sensors, relays, and other automation components. Designed with screw terminal connections, integrated protection circuitry, and a status LED indicator, the unit provides efficient and safe DC power delivery in control panels and machine systems.
Key Features:
- Dual Input Voltage: Operates on 100–120 VAC or 200–240 VAC, 50/60 Hz.
- 24 VDC Output: Supplies up to 6.5 A continuous current for industrial devices.
- Compact Enclosure: Space-saving design suited for control cabinet mounting.
- Built-In Indicator LED: Displays output status for easy visual monitoring.
- High Efficiency & Reliability: Provides stable and clean DC output for sensitive equipment.
- Screw Terminal Connections: Ensures secure and simple wiring installation.
- Integrated Protection Circuits: Safeguards against overload, overvoltage, and short circuits.
- Omron Quality Assurance: Designed for dependable performance in automation and control environments.
The S82J-15024D delivers the reliability and precision required for industrial power distribution, automation panels, and control system applications.
