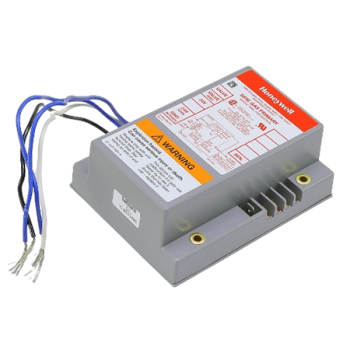

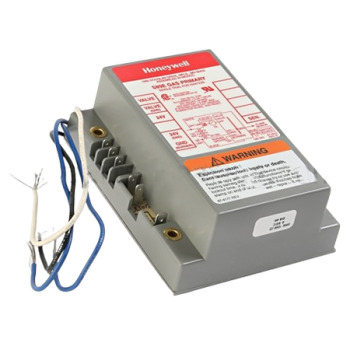

S89E1058 | Honeywell 24V Direct Spark Ignition Control Module Two-Rod System
- Regular price
- $424.00
- Sale price
- $424.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: S89E1058
Description
The Honeywell S89E1058 is a 24V direct spark ignition control module designed to manage gas valve operation and ignition sequence in direct spark systems. It operates with a separate 120V spark generator, features a two-rod sensing system, and includes a 4-second ignition trial with automatic lockout protection for safe and reliable burner ignition control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Heating Controls |
| Part Number | S89E1058 |
| Subcategory | Direct Spark Ignition Module |
| Control Voltage | 24 VAC |
| Frequency | 60 Hz |
| Ignition Source | External 120 VAC high-voltage spark generator |
| Ignition Type | Direct spark ignition |
| Igniter-Sensor Rods | Dual rod configuration |
| Ignition Trial Time | 4 seconds |
| Lockout Timing | 4 seconds |
| Ignition Trials to Lockout | 1 trial before lockout occurs |
| Reset Method | Manual reset from thermostat after lockout |
| Pre-Purge Delay | Up to 10 seconds maximum timing delay |
| Flame Failure Response Time | 2.0 seconds @ 2.5 microamps |
| Thermostat Anticipator Rating | 0.2A plus gas control current |
| Maximum Valve Load | 2A |
| Fuel Type | Natural Gas or LPG |
| Typical Gas Controls | Compatible with Honeywell VR8205, VR8305 valves |
| Mounting Type | Universal (any orientation) |
| Product Depth | 1.94 in (49 mm) |
| Enclosure Rating | UL recognized, CSA certified |
| Application | Direct spark ignition systems for furnaces and heating appliances |
| Approvals | UL File No. MP268; CSA Certified 158158-1047805 |
| Weight | 1.00 lbs |
Information About S89E1058
The S89E1058 is part of Honeywell’s S89 Series of direct spark ignition control modules, designed to provide safe, reliable ignition and flame monitoring for gas-fired heating systems. It uses a 24V control circuit to regulate gas valve and ignition timing, while a separate 120V spark generator delivers the high-voltage energy required for main burner ignition. The module conducts a single 4-second trial for ignition and enters a lockout mode if flame is not detected, ensuring enhanced system safety. The thermostat reset feature allows quick recovery from lockout conditions. Compatible with Honeywell VR8205 and VR8305 gas controls, the S89E1058 is ideal for furnaces and power burners operating on natural gas or LPG.
Key Features
- Two-Rod Ignition Design: Separate ignition and flame-sensing rods enhance reliability and flame detection accuracy.
- Integrated Lockout Protection: Automatically locks out the system after one failed ignition attempt, preventing unsafe gas accumulation.
- Fast Ignition and Response: Features a 4-second ignition trial and 2-second flame failure response for quick startup and safety assurance.
- Thermostat Reset Capability: Allows lockout reset directly from the thermostat without manual intervention at the control.
- Compatible Gas Valves: Designed to operate with Honeywell VR8205 and VR8305 series gas controls rated up to 2A.
- Universal Mounting: Compact design enables mounting in any position within the appliance for installation flexibility.
- Durable and Certified: UL and CSA approved for use in residential and commercial heating systems using natural gas or LPG.
- External Spark Source: Uses a 120V high-voltage spark generator for dependable ignition performance in direct spark applications.
The S89E1058 delivers the reliability and precision required for safe burner ignition control in furnaces, boilers, and heating appliances using direct spark ignition technology.
