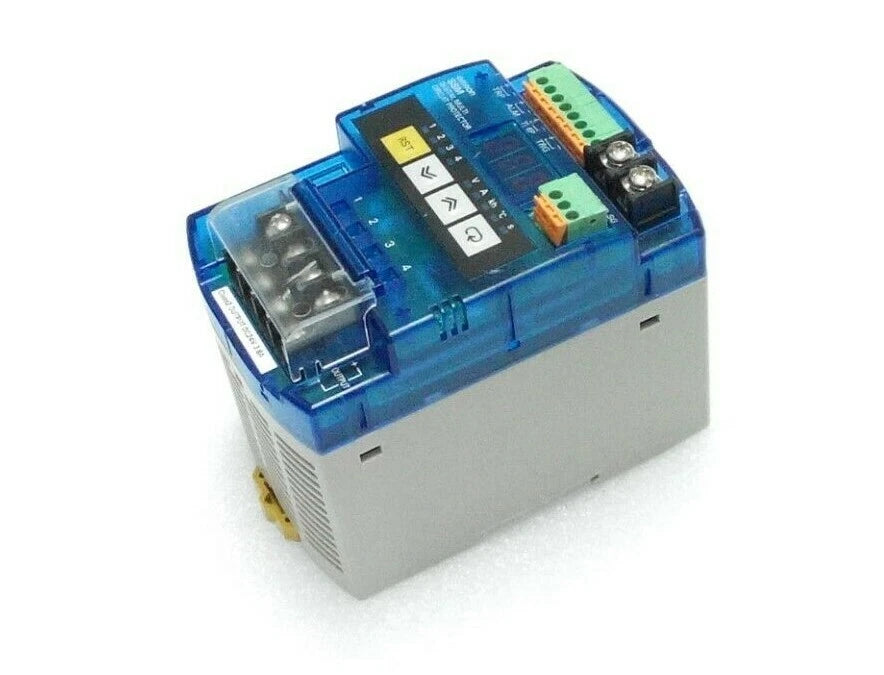

S8M-CP04-RS | Omron Multi-Circuit DC Protector with 4 Isolated Outputs
- Regular price
- $917.00
- Sale price
- $917.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: S8M-CP04-RS
Description
The Omron S8M-CP04-RS is a multi-circuit DC protection and distribution module designed to safeguard multiple DC loads from overcurrent and voltage faults. It provides isolated protection for up to four circuits while ensuring stable operation in industrial control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Power Distribution |
| Part Number | S8M-CP04-RS |
| Subcategory | Circuit Protectors |
| Series | S8M Series |
| Input Voltage Range | 19.2–26.4 VDC |
| Nominal Input Voltage | 24 VDC |
| Number of Outputs | 4 |
| Output Voltage | 30 VDC |
| Output Current per Channel | 3.8 A |
| Total Output Power | 15 W |
| Isolation | Electrically isolated outputs |
| Mounting Style | DIN Rail |
| Connection Type | Screw terminals |
| Compliance | UL60950-1 |
| Dimensions (W×H×D) | 75 × 115 × 86.5 mm |
| Weight | 1.00 lb |
Information About S8M-CP04-RS
The S8M-CP04-RS is part of Omron’s S8M Series multi-circuit protectors, developed for reliable DC power distribution in industrial environments. It integrates electronic circuit protection and isolated DC/DC conversion into a compact DIN rail–mounted unit. The module monitors voltage and current conditions to prevent faults from propagating across connected loads. It is commonly used in control panels to maintain system uptime by isolating failures to individual branches.
Key Features:
-
Multi-circuit protection: Provides independent protection for up to four DC output circuits
-
Isolated outputs: Electrically isolates loads to prevent fault propagation
-
Electronic current limiting: Uses internal digital fuses for precise protection
-
DIN rail mounting: Designed for fast installation in control cabinets
-
DC input compatibility: Operates from standard 24 VDC control power supplies
-
Sequential load handling: Supports controlled startup and restart behavior
-
Compact industrial design: Optimized for space-efficient panel layouts
The S8M-CP04-RS delivers the reliability and fault isolation required for industrial DC power distribution and load protection.
