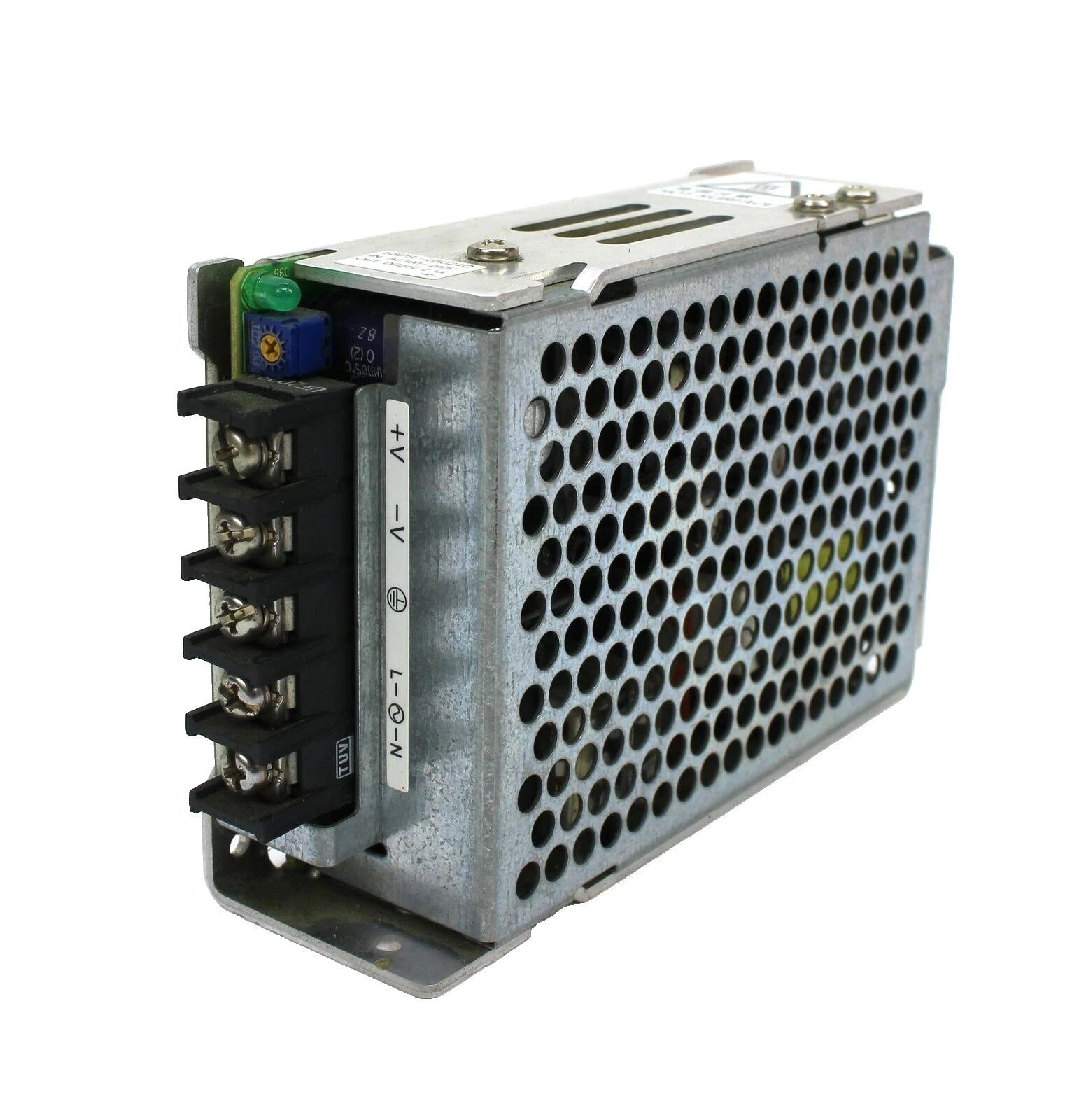

S8PS-05024CD | Omron 50W 24VDC DIN Rail Switch Mode Power Supply
- Regular price
- $379.00
- Sale price
- $379.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: S8PS-05024CD
Description
The Omron S8PS-05024CD is a 50 W switch mode power supply designed to convert 100–240 VAC input into a regulated 24 VDC output at up to 2.1 A. Built in a covered enclosure with a DIN rail mounting bracket, it provides stable DC power for industrial and commercial control systems. Its universal AC input capability and adjustable output voltage support flexible installation across various automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Power Supplies |
| Part Number | S8PS-05024CD |
| Subcategory | DIN Rail Mount Power Supply |
| Series | S8PS (50W) |
| Product Type | Switch Mode Power Supply |
| Input Type | AC |
| Input Voltage Range | 85–264 VAC |
| Input Frequency | 50/60 Hz |
| Output Voltage | 24 VDC |
| Output Current (Max) | 2.1 A |
| Rated Power | 50 W |
| Number of Outputs | 1 |
| Efficiency | 80% |
| Isolation Voltage | 3 kV |
| Operating Temperature | -10°C to +60°C (with derating) |
| Features | Adjustable Output, Universal Input |
| Dimensions (L x W x H) | 5.00" x 1.57" x 3.35" (127.0mm x 40.0mm x 85.0mm) |
| Mounting Type | Covered Type with DIN Rail Mount Bracket |
| Approvals | CE, CSA, UR, VDE |
| Weight | 1.10 lbs |
Information About S8PS-05024CD
The S8PS-05024CD belongs to the Omron S8PS (50W) series of compact enclosed power supplies engineered for panel-mounted applications. It features a single 24 VDC output and supports a wide AC input range of 85 to 264 VAC at 50/60 Hz, making it suitable for global use. With 3 kV isolation and 80% typical efficiency, the unit ensures safe and efficient power conversion in ITE (commercial) and industrial environments. Designed with an integrated DIN rail mounting bracket, it allows straightforward installation inside control cabinets and electrical enclosures.
Key Features:
- 50 W Output Rating: Provides up to 50 watts of continuous DC power.
- 24 VDC Single Output: Delivers regulated 24 VDC at a maximum of 2.1 A.
- Universal AC Input: Accepts 85–264 VAC for flexible worldwide operation.
- Adjustable Output Voltage: Enables fine-tuning of output voltage for application requirements.
- 3 kV Isolation: Ensures electrical separation between input and output circuits.
- DIN Rail Mounting Bracket: Facilitates secure and efficient panel installation.
- Covered Enclosure Design: Protects internal components in control cabinet environments.
- Certified to International Standards: Approved by CE, CSA, UR, and VDE agencies.
The S8PS-05024CD delivers the reliability and precision required for stable 24 VDC power distribution in industrial and commercial control systems.
