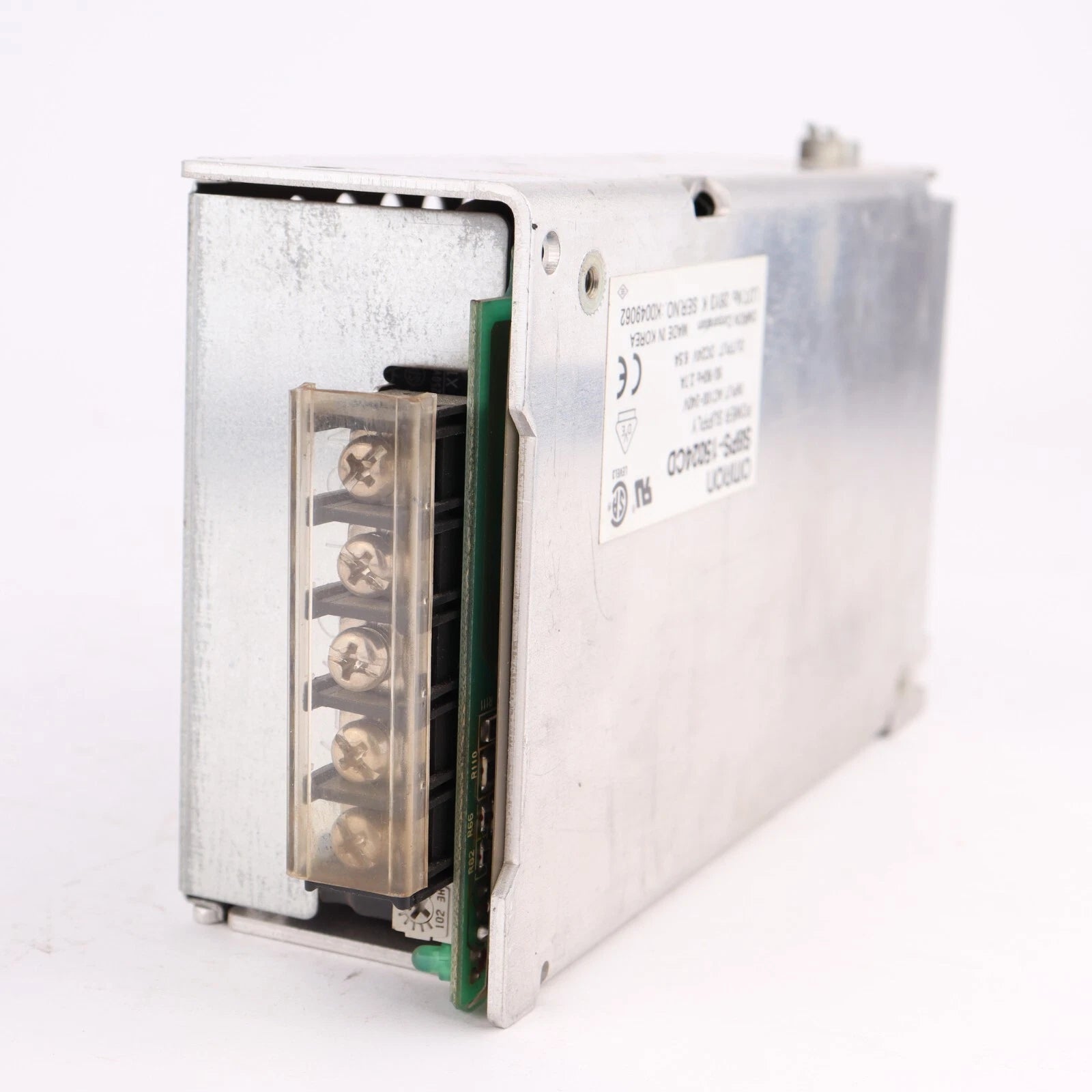

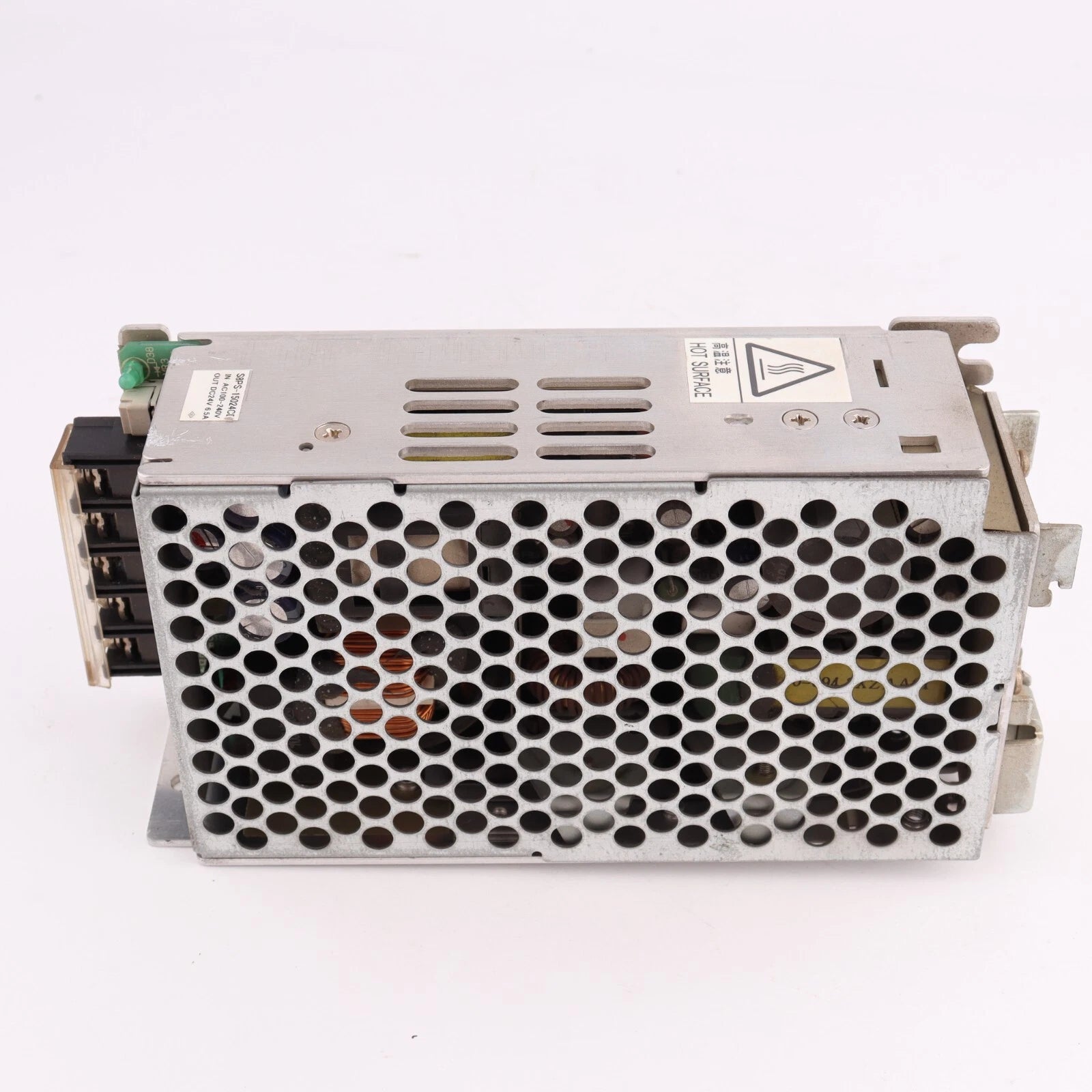

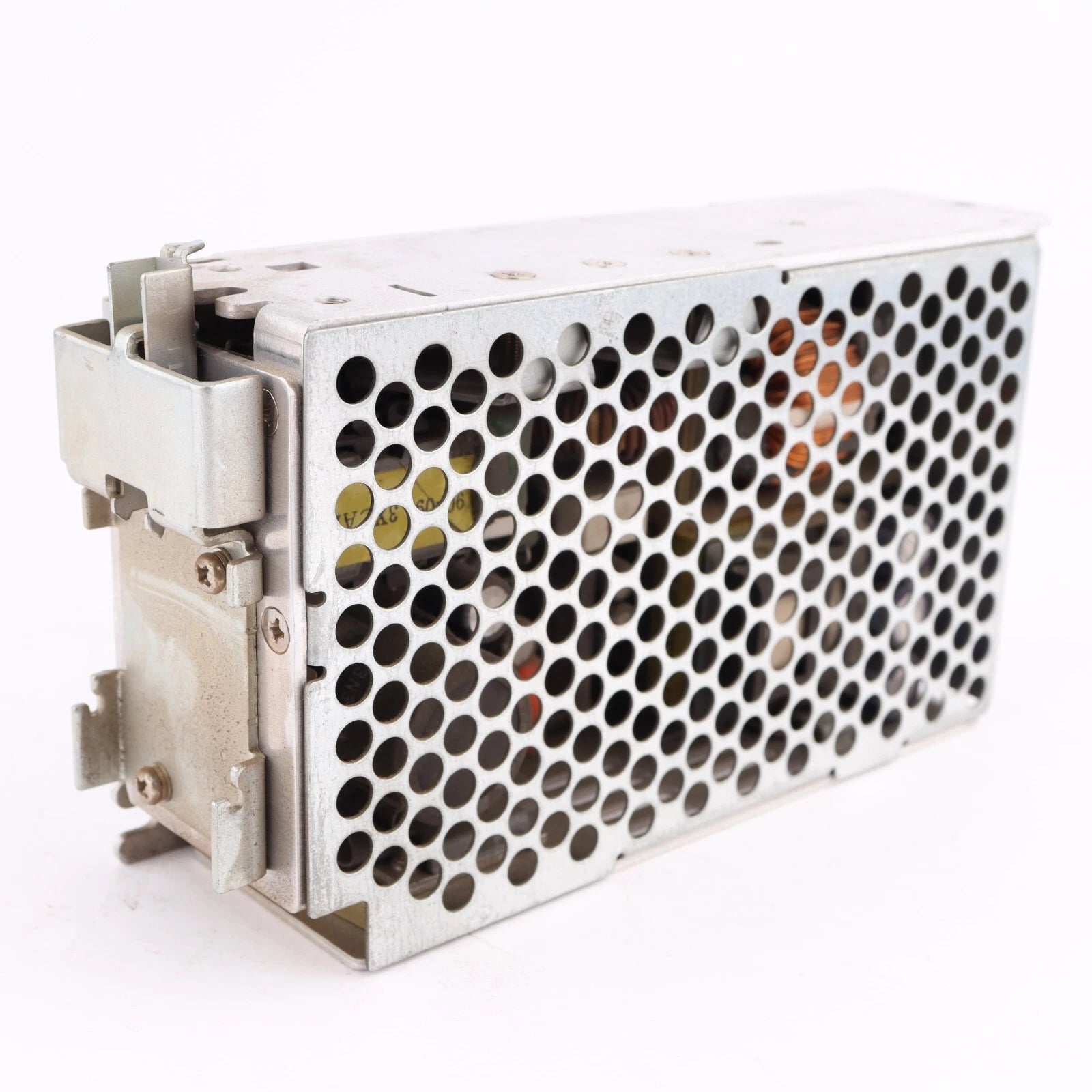

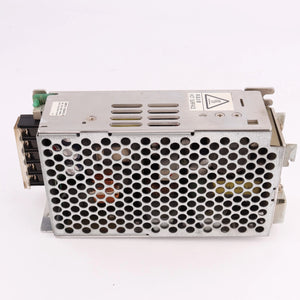

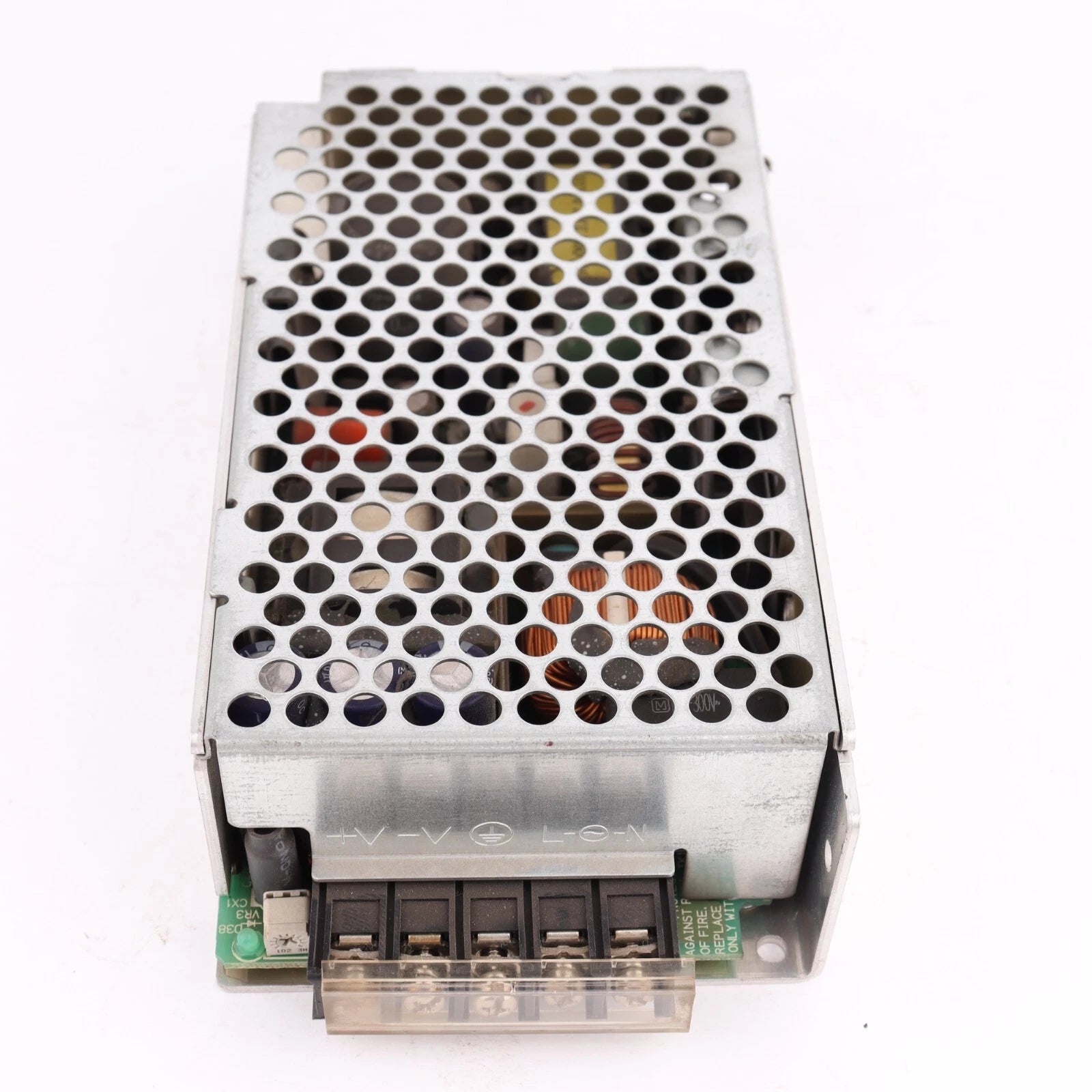

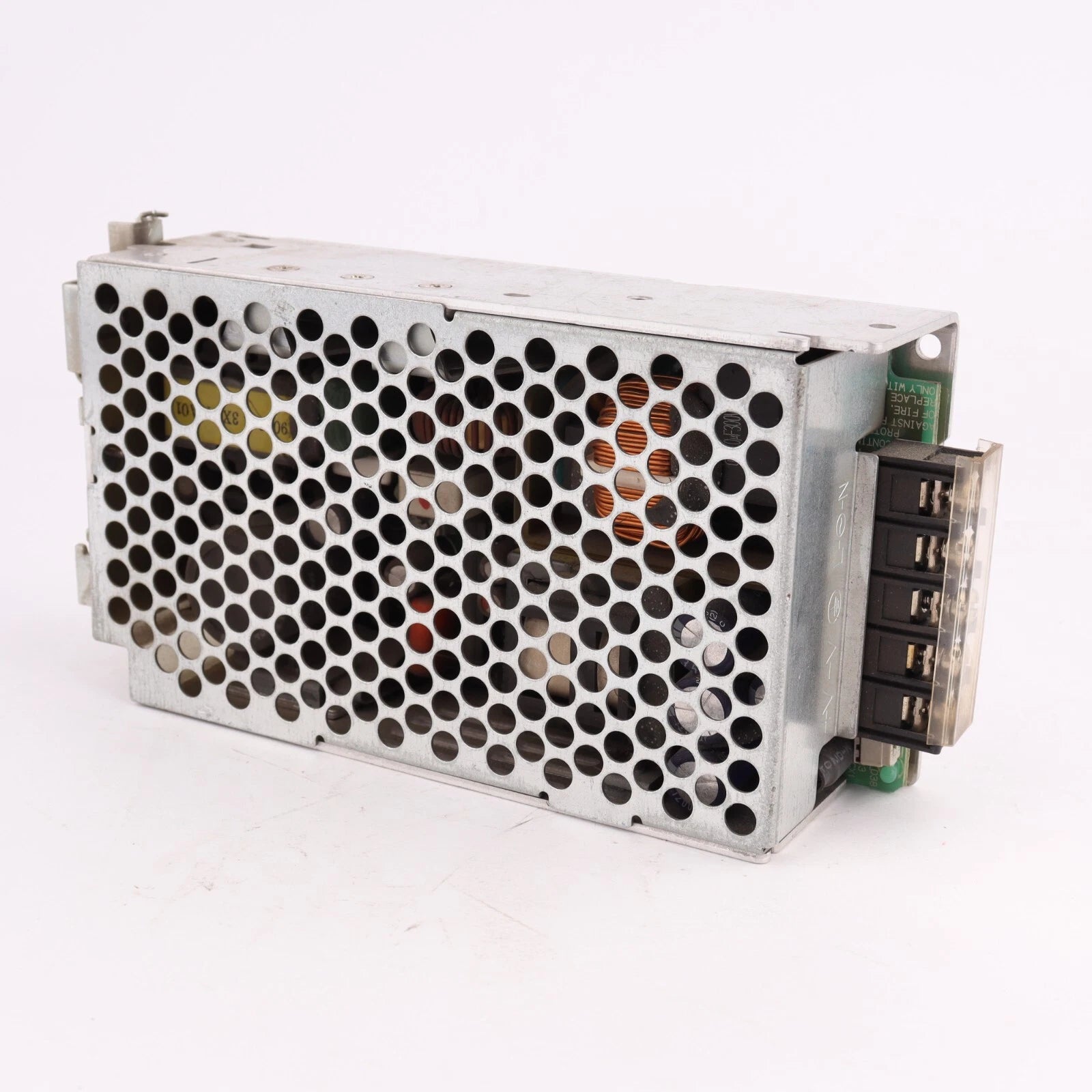

S8PS-15024CD | Omron 150W 24VDC DIN Rail Switch Mode Power Supply
- Regular price
- $384.00
- Sale price
- $384.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: S8PS-15024CD
Description
The Omron S8PS-15024CD is a 150 W switch mode power supply designed to convert 100–240 VAC input into a stable 24 VDC output for industrial control systems. With a maximum output current of 6.5 A, it provides reliable DC power for PLCs, sensors, relays, and automation components. Its enclosed DIN rail design and integrated protection features ensure dependable performance in demanding panel environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Power Supplies |
| Part Number | S8PS-15024CD |
| Subcategory | DIN Rail Mount Power Supply |
| Product Type | Switch Mode Power Supply |
| Rated Power Output | 150 W |
| Output Voltage | 24 VDC |
| Output Current | 6.5 A |
| Input Voltage Range | 100–240 VAC (85–264 VAC tolerance) |
| Input Frequency Range | 47–450 Hz |
| Input Current | Max 2.7 A / 1.4 A |
| Power Factor (Typical) | 0.95 |
| Efficiency | 75%–87% (model dependent) |
| Inrush Current | Max 25 A / 50 A (cold start at 25°C) |
| Leakage Current | 0.5–1.0 mA max |
| Adjustable Voltage Range | -5% to +10% |
| Ripple Voltage | Max 2% peak-to-peak |
| Mounting Type | Enclosed design with DIN Rail Mounting |
| Output Overvoltage Protection | Present |
| Weight | 0.63 lbs (0.28 kg) |
Information About S8PS-15024CD
The S8PS-15024CD is part of Omron’s S8PS series of enclosed switch mode power supplies engineered for industrial automation applications. It is built with a compact metal enclosure suitable for DIN rail mounting inside control cabinets and distribution panels. The unit supports a wide AC input range and incorporates output overvoltage protection to safeguard connected devices. Designed for stable 24 VDC power delivery, it is compatible with PLC systems, HMIs, I/O modules, and other low-voltage industrial equipment requiring consistent and regulated DC supply.
Key Features:
- Wide AC Input Range: Accepts 100 to 240 VAC (85 to 264 VAC tolerance) for global application compatibility.
- 150 W Power Rating: Delivers up to 150 watts of continuous output power for industrial loads.
- 24 VDC Regulated Output: Provides stable 24 VDC output with adjustable range from -5% to +10%.
- High Output Current Capacity: Supplies up to 6.5 A for demanding control system requirements.
- Integrated Overvoltage Protection: Protects downstream equipment from excessive voltage conditions.
- DIN Rail Mounting Design: Enclosed construction allows secure and efficient installation in control panels.
- High Power Factor: Typical 0.95 power factor supports efficient power utilization.
- Controlled Ripple Voltage: Maintains ripple at a maximum of 2% peak-to-peak for stable operation.
The S8PS-15024CD delivers the reliability and precision required for industrial automation power distribution systems.
