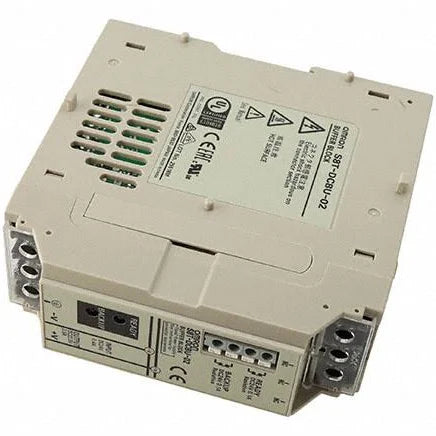

S8T-DCBU-02 | Omron Buffer Block
- Regular price
- $577.00
- Sale price
- $577.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: S8T-DCBU-02
Description
The S8T-DCBU-02 Buffer Block serves as a buffer block specifically designed for use with S8TS power supplies. It provides a crucial function in stabilizing power delivery and ensuring uninterrupted power supply in industrial settings. This buffer block is engineered to enhance the reliability and performance of S8TS power supplies by effectively managing power fluctuations and preventing disruptions in power output. Its compatibility with S8TS power supplies makes it an essential component for maintaining stable and reliable power distribution systems in industrial applications.
Technical Specifications
|
Part # |
S8T-DCBU-02 |
|
Manufacturer |
OMRON |
|
Category |
Power Supplies |
|
Subcategory |
Power Supply |
|
Input Voltage |
24 to 28 VDC |
|
Current Charging |
0.4 A |
|
Standby Current |
0.18 A |
|
Output Voltage |
For 24 V: 22.5 V typ., 22.0 V min. |
|
Output Current |
2.5 A |
|
Backup Time |
Time until voltage drops to 21.6 VDC |
|
Backup Time |
- 1,000 ms min. (output current: 1.2 A) |
|
READY Indicator |
Yes (color: green) |
|
READY Output |
Yes (relay: 24 VDC, 0.1 A max.) |
|
Backup Indicator |
Yes (color: red) |
|
Backup Output |
Yes (relay: 24 VDC, 0.1 A max.) |
|
Overcurrent Protection |
Reverse-L dropping, automatic reset, |
|
Overvoltage Protection |
Yes |
|
Parallel Operation |
Yes (Up to 4 Blocks) |
|
Series Operation |
No |
|
Ambient Operating Temperature |
Refer to the derating curve in Engineering |
|
Storage Temperature |
-25 to 65°C |
|
Ambient Humidity |
Operating: 25% to 85%; Storage: 25% to 90% |
|
Dielectric Strength |
1.0 kVAC for 1 minute (DC terminals to PE) |
|
Dielectric Strength |
500 VAC for 1 minute (DC terminals/PE to |
|
Insulation Resistance |
100 MΩ min. at 500 VDC |
|
Vibration Resistance |
10 to 55 Hz, 0.375-mm single amplitude for |
|
Vibration Resistance |
2 h each in X, Y, and Z directions |
|
Shock Resistance |
150 m/s², 3 times each in ±X, ±Y, and ±Z |
|
EMI Conducted Emission |
Conforms to EN61204-3 EN55011 Class B and |
|
Radiated Emission |
Conforms to EN61204-3 EN55011 Class B |
|
EMS |
Conforms to EN61204-3 High severity levels |
|
Approved Standards |
UL508, cUL, CSA, EN62477-1, SEMI F47-0200 |
|
Weight |
450 g max. |
Information About S8T-DCBU-02
The S8T-DCBU-02 Buffer Block is designed to complement the S8TS power supply units. It serves as a buffer block to ensure stable power supply in applications where uninterrupted power is critical.
This buffer block operates within a voltage range of 24 to 28 VDC. It features a charging current of 0.4 A and a standby current of 0.18 A. With its robust design, it provides reliable backup power to safeguard against power interruptions or fluctuations.
The output voltage of the S8T-DCBU-02 varies depending on the input voltage, ensuring compatibility with different power supply configurations. For 24 V input, the typical output voltage is 22.5 V, with a minimum of 22.0 V. For 28 V input, the typical output voltage is 26.4 V, with a minimum of 25.8 V.
With an output current of 2.5 A, this buffer block offers sufficient power to support critical loads during power outages. It ensures continuity of operation by providing backup power for a specified duration until the voltage drops to a predefined level. The backup time varies based on the output current, with a minimum duration of 500 ms for an output current of 2.5 A.
The S8T-DCBU-02 is equipped with various output functions to facilitate monitoring and control. It includes indicators for system readiness and backup operation, with corresponding relay outputs for status indication. Additionally, it features overcurrent and overvoltage protection mechanisms to prevent damage to connected equipment.
This buffer block supports parallel operation, allowing multiple units to be connected in parallel for increased redundancy and load sharing. It is designed to withstand harsh environmental conditions, with operating temperatures ranging from -25°C to +55°C and humidity levels of 25% to 85% during operation and 25% to 90% during storage.
Manufacturer information
OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
Description
The S8T-DCBU-02 Buffer Block serves as a buffer block specifically designed for use with S8TS power supplies. It provides a crucial function in stabilizing power delivery and ensuring uninterrupted power supply in industrial settings. This buffer block is engineered to enhance the reliability and performance of S8TS power supplies by effectively managing power fluctuations and preventing disruptions in power output. Its compatibility with S8TS power supplies makes it an essential component for maintaining stable and reliable power distribution systems in industrial applications.
Technical Specifications
|
Part # |
S8T-DCBU-02 |
|
Manufacturer |
OMRON |
|
Category |
Power Supplies |
|
Subcategory |
Power Supply |
|
Input Voltage |
24 to 28 VDC |
|
Current Charging |
0.4 A |
|
Standby Current |
0.18 A |
|
Output Voltage |
For 24 V: 22.5 V typ., 22.0 V min. |
|
Output Current |
2.5 A |
|
Backup Time |
Time until voltage drops to 21.6 VDC |
|
Backup Time |
- 1,000 ms min. (output current: 1.2 A) |
|
READY Indicator |
Yes (color: green) |
|
READY Output |
Yes (relay: 24 VDC, 0.1 A max.) |
|
Backup Indicator |
Yes (color: red) |
|
Backup Output |
Yes (relay: 24 VDC, 0.1 A max.) |
|
Overcurrent Protection |
Reverse-L dropping, automatic reset, |
|
Overvoltage Protection |
Yes |
|
Parallel Operation |
Yes (Up to 4 Blocks) |
|
Series Operation |
No |
|
Ambient Operating Temperature |
Refer to the derating curve in Engineering |
|
Storage Temperature |
-25 to 65°C |
|
Ambient Humidity |
Operating: 25% to 85%; Storage: 25% to 90% |
|
Dielectric Strength |
1.0 kVAC for 1 minute (DC terminals to PE) |
|
Dielectric Strength |
500 VAC for 1 minute (DC terminals/PE to |
|
Insulation Resistance |
100 MΩ min. at 500 VDC |
|
Vibration Resistance |
10 to 55 Hz, 0.375-mm single amplitude for |
|
Vibration Resistance |
2 h each in X, Y, and Z directions |
|
Shock Resistance |
150 m/s², 3 times each in ±X, ±Y, and ±Z |
|
EMI Conducted Emission |
Conforms to EN61204-3 EN55011 Class B and |
|
Radiated Emission |
Conforms to EN61204-3 EN55011 Class B |
|
EMS |
Conforms to EN61204-3 High severity levels |
|
Approved Standards |
UL508, cUL, CSA, EN62477-1, SEMI F47-0200 |
|
Weight |
450 g max. |
Information About S8T-DCBU-02
The S8T-DCBU-02 Buffer Block is designed to complement the S8TS power supply units. It serves as a buffer block to ensure stable power supply in applications where uninterrupted power is critical.
This buffer block operates within a voltage range of 24 to 28 VDC. It features a charging current of 0.4 A and a standby current of 0.18 A. With its robust design, it provides reliable backup power to safeguard against power interruptions or fluctuations.
The output voltage of the S8T-DCBU-02 varies depending on the input voltage, ensuring compatibility with different power supply configurations. For 24 V input, the typical output voltage is 22.5 V, with a minimum of 22.0 V. For 28 V input, the typical output voltage is 26.4 V, with a minimum of 25.8 V.
With an output current of 2.5 A, this buffer block offers sufficient power to support critical loads during power outages. It ensures continuity of operation by providing backup power for a specified duration until the voltage drops to a predefined level. The backup time varies based on the output current, with a minimum duration of 500 ms for an output current of 2.5 A.
The S8T-DCBU-02 is equipped with various output functions to facilitate monitoring and control. It includes indicators for system readiness and backup operation, with corresponding relay outputs for status indication. Additionally, it features overcurrent and overvoltage protection mechanisms to prevent damage to connected equipment.
This buffer block supports parallel operation, allowing multiple units to be connected in parallel for increased redundancy and load sharing. It is designed to withstand harsh environmental conditions, with operating temperatures ranging from -25°C to +55°C and humidity levels of 25% to 85% during operation and 25% to 90% during storage.
Manufacturer information
OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
