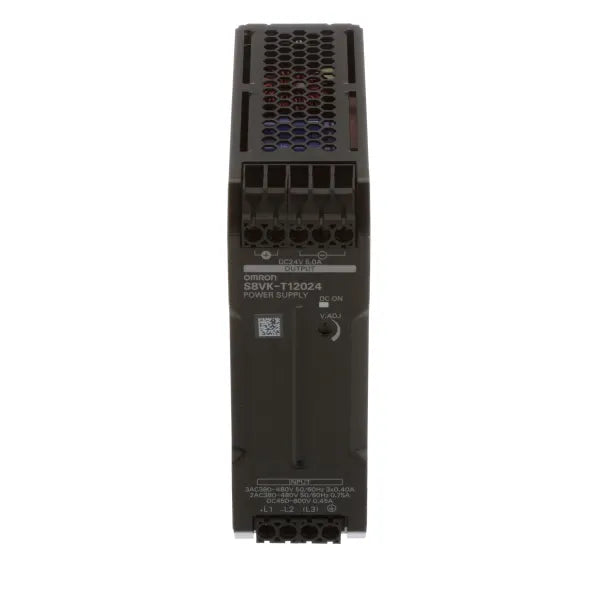

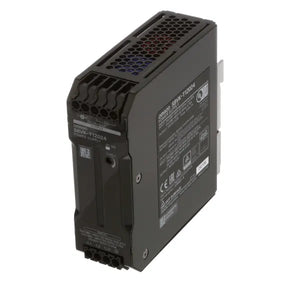

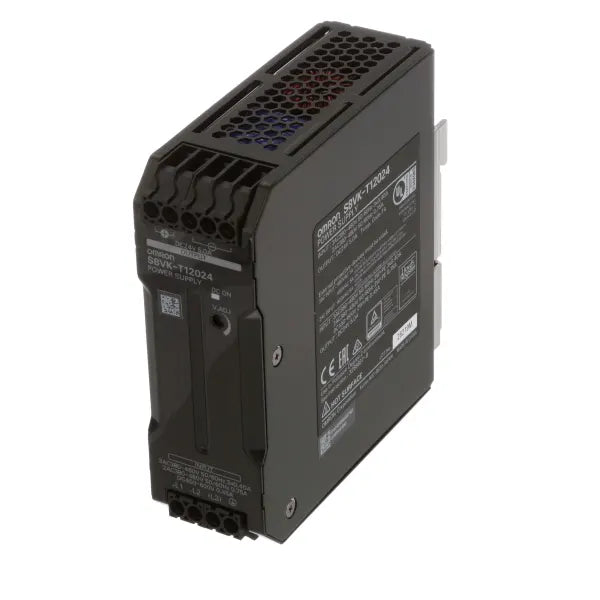

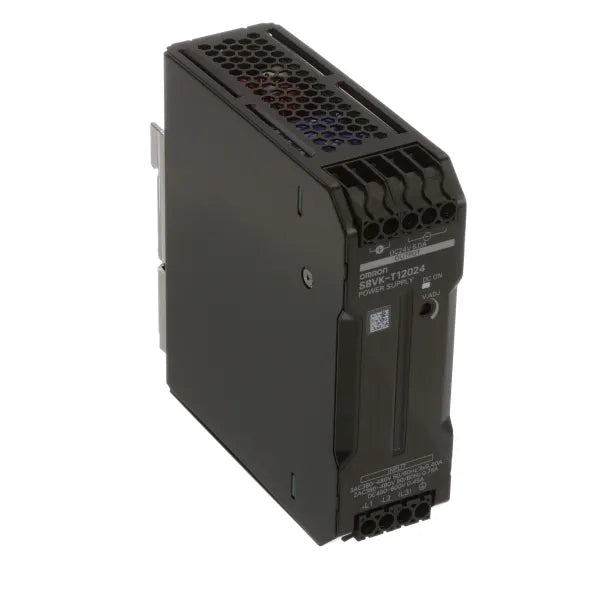

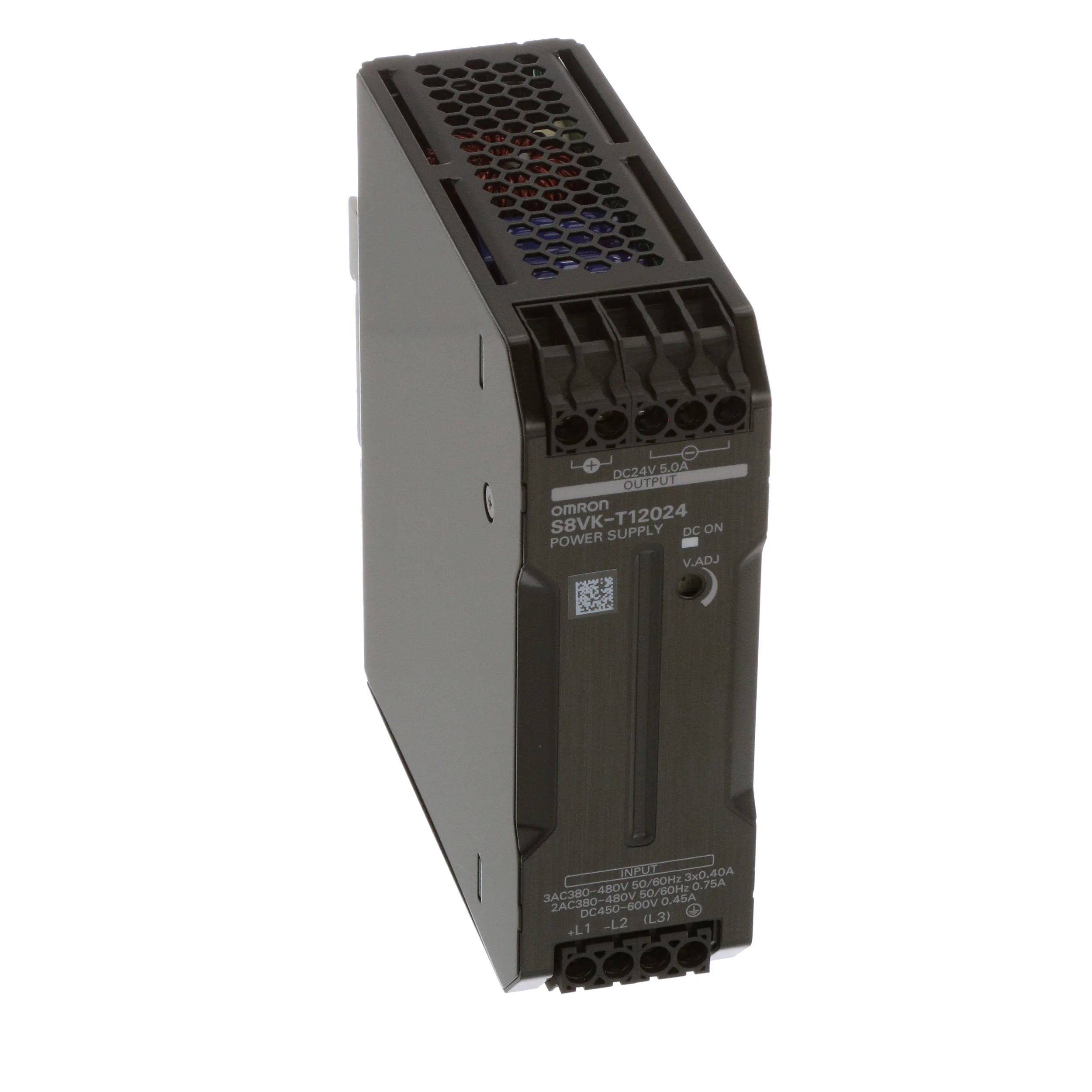

S8VK-T12024 | OMRON AC-DC Power Supply, 3-Ph, 480V, 24VDC 5A, S8VS Series
- Regular price
- $182.00
- Sale price
- $182.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: S8VK-T12024
Description
AC/DC Switch-mode power supply (SMPS PSU) - OMRON (S8VK-T series) - 5A / 24Vdc / 120W output - 3-phase (3AC) or DC or 2-phase (2AC) or DC input (320-576Vac / 340-576Vac (380Vac / 480Vac nom.) / 450-600Vdc (500Vdc / 575Vdc nom.)) - Screw connections - DIN rail mounting - rated for -40°C...+70 °C ambient - IP20 - replaces S8VT-F12024E - equivalent to S8VKT12024
Technical Specifications
| Brand | OMRON |
| Category | Power Supplies |
| Part Number | S8VK-T12024 |
| Subcategory | Power Supply |
| Type | Book type |
| Mounting method | DIN rail |
| Phase | Three |
| Power output | 120 W |
| Efficiency | 89 % |
| Output voltage | 24 V |
| Rated output current | 5 A |
| Power boost ratio | 120 % |
| Temperature range | -40-70 °C |
| Terminal | Screw |
| Rated supply voltage at AC 50 Hz | 380-480 V |
| Allowable supply voltage AC | 320-576 V |
| Allowable supply voltage DC | 450-810 V |
| Product Width (unpacked) | 40 mm |
| Product Height (unpacked) | 125 mm |
| Product Depth (unpacked) | 113 mm |
Information About S8VK-T12024
Omron S8VK-T Series — Switch Mode Power Supply | 120/240/480/960 W Models:

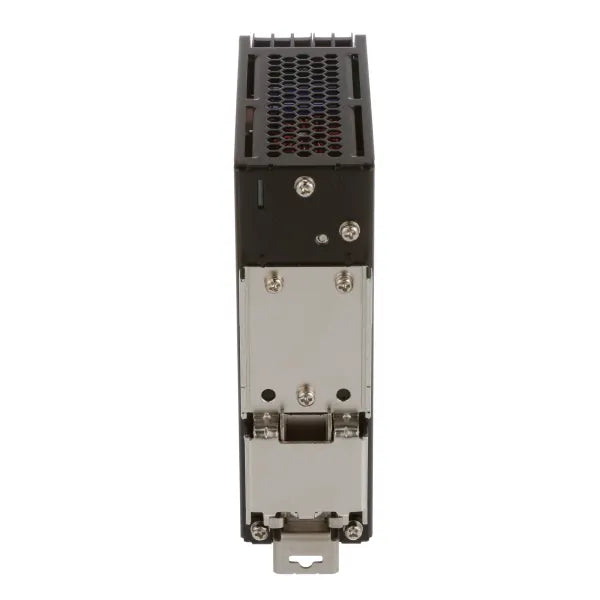

Omron has developed a new and exciting family of compact power supplies. With the same high quality and practical design that made our previous Series safe, reliable, and easy to install, the new S8VK Series is even tougher, more compact and easier to use. The S8VK Series not only offers you greater flexibility when designing your machine, it also saves you time and reduces costs thanks to the minimal wiring requirements and easy one-handed mounting provided by the enhanced DIN-rail mounting clip.
To ensure that they provide the perfect solution to match every customer’s need, Omron has launched 4 different families: the cost effective S8VK-C, the standard with single-phase input S8VK-G, the standard with three-phase input S8VK-T, and the redundancy unit S8VK-R. Designed to international safety standards for global markets, the S8VK even has approvals for marine applications (S8VK-G/T/R) and carries an across-the-board, warranty on all models no matter which country your machine is exported to! Because of high MTBF figures, your S8VK will keep running in stable condition for a long term.
Features:
380 to 480 VAC (320 to 576 VAC)
Possible for 2-phase input usage: 380 to 480 VAC (340 to 576 VAC) When using the 960 W at 2-phase input, the power rating is 768 W
DC input can be available: 450 to 600 VDC (450 to 810 VDC) *Excluding 960 W
High efficiency 91% typ. at 480 W model
Wide operation temperature range: –40 to 70C
Power Boost function at 120%
Meets LR maritime standards
EMS: Conforms to EN 61204-3
EMI: EN61204-3 Class B
RoHS Compliant
Manufacturer information
OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
Description
AC/DC Switch-mode power supply (SMPS PSU) - OMRON (S8VK-T series) - 5A / 24Vdc / 120W output - 3-phase (3AC) or DC or 2-phase (2AC) or DC input (320-576Vac / 340-576Vac (380Vac / 480Vac nom.) / 450-600Vdc (500Vdc / 575Vdc nom.)) - Screw connections - DIN rail mounting - rated for -40°C...+70 °C ambient - IP20 - replaces S8VT-F12024E - equivalent to S8VKT12024
Technical Specifications
| Brand | OMRON |
| Category | Power Supplies |
| Part Number | S8VK-T12024 |
| Subcategory | Power Supply |
| Type | Book type |
| Mounting method | DIN rail |
| Phase | Three |
| Power output | 120 W |
| Efficiency | 89 % |
| Output voltage | 24 V |
| Rated output current | 5 A |
| Power boost ratio | 120 % |
| Temperature range | -40-70 °C |
| Terminal | Screw |
| Rated supply voltage at AC 50 Hz | 380-480 V |
| Allowable supply voltage AC | 320-576 V |
| Allowable supply voltage DC | 450-810 V |
| Product Width (unpacked) | 40 mm |
| Product Height (unpacked) | 125 mm |
| Product Depth (unpacked) | 113 mm |
Information About S8VK-T12024
Omron S8VK-T Series — Switch Mode Power Supply | 120/240/480/960 W Models:
Omron has developed a new and exciting family of compact power supplies. With the same high quality and practical design that made our previous Series safe, reliable, and easy to install, the new S8VK Series is even tougher, more compact and easier to use. The S8VK Series not only offers you greater flexibility when designing your machine, it also saves you time and reduces costs thanks to the minimal wiring requirements and easy one-handed mounting provided by the enhanced DIN-rail mounting clip.
To ensure that they provide the perfect solution to match every customer’s need, Omron has launched 4 different families: the cost effective S8VK-C, the standard with single-phase input S8VK-G, the standard with three-phase input S8VK-T, and the redundancy unit S8VK-R. Designed to international safety standards for global markets, the S8VK even has approvals for marine applications (S8VK-G/T/R) and carries an across-the-board, warranty on all models no matter which country your machine is exported to! Because of high MTBF figures, your S8VK will keep running in stable condition for a long term.
Features:
380 to 480 VAC (320 to 576 VAC)
Possible for 2-phase input usage: 380 to 480 VAC (340 to 576 VAC) When using the 960 W at 2-phase input, the power rating is 768 W
DC input can be available: 450 to 600 VDC (450 to 810 VDC) *Excluding 960 W
High efficiency 91% typ. at 480 W model
Wide operation temperature range: –40 to 70C
Power Boost function at 120%
Meets LR maritime standards
EMS: Conforms to EN 61204-3
EMI: EN61204-3 Class B
RoHS Compliant
Manufacturer information
OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
