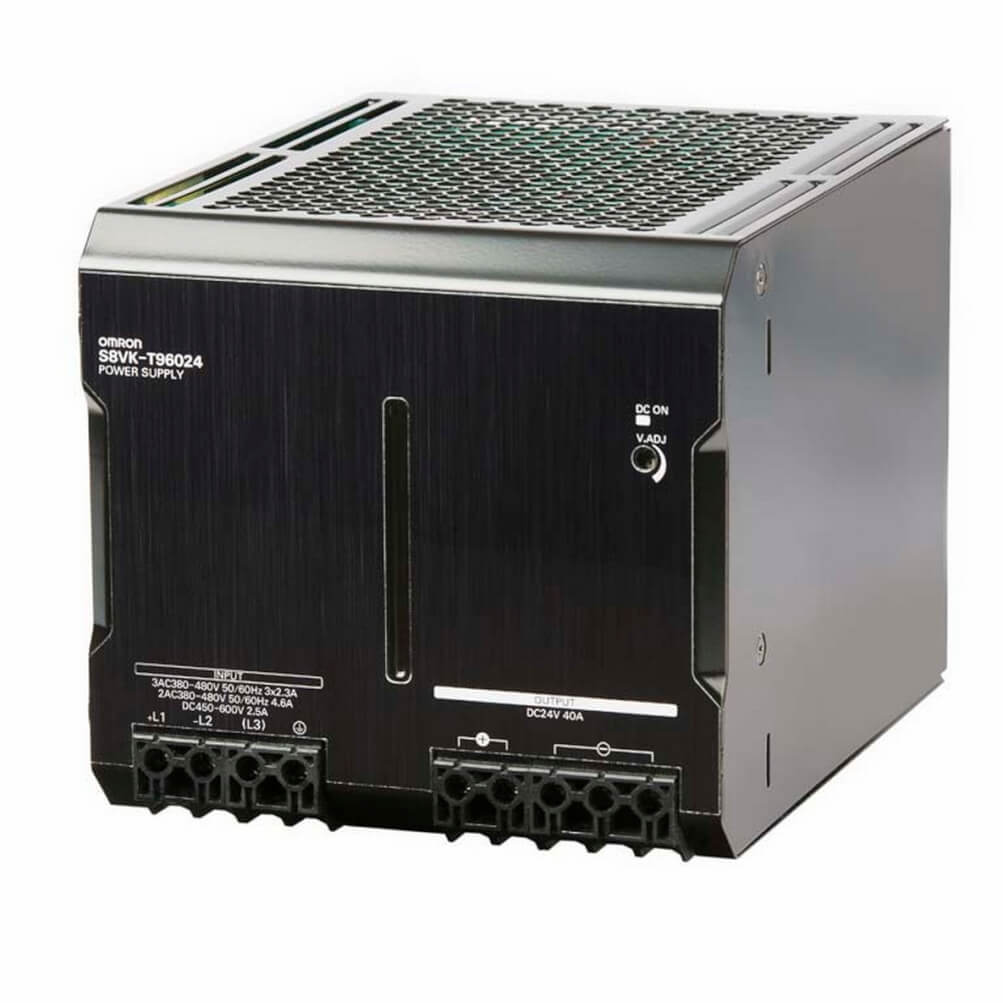

S8VK-T96024 | Omron S8VK-T Series 24VDC 40A Three-Phase Power Supply
- Regular price
- $577.00
- Sale price
- $577.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: S8VK-T96024
Description
The Omron S8VK-T96024 is a high-capacity AC-DC power supply designed to convert three-phase AC input into a stable 24 VDC output for industrial automation systems. It delivers up to 40 A of output current, supporting high-load control and automation equipment. This power supply is intended for panel-mounted applications requiring reliable and efficient DC power distribution.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron Automation and Safety |
| Category | Industrial Automation |
| Part Number | S8VK-T96024 |
| Subcategory | Power Supplies |
| Product Type | AC-DC power supply |
| Series | S8VK-T (960W) |
| Input Voltage | 320–576 VAC (3-phase) |
| Output Voltage | 24 VDC |
| Output Current | 40 A |
| Output Power | 960 W |
| Efficiency | Up to 92% |
| Isolation Voltage | 3 kV |
| Number of Outputs | 1 |
| Features | Adjustable output, load sharing |
| Degree of Protection | IP20 |
| Operating Temperature | -40°C to 70°C (with derating) |
| Dimensions | 7.09 × 3.74 × 4.92 in (180 × 95 × 125 mm) |
| Approvals | CE, TUV, UL |
| Weight | Approx. 6.5 lb (2.95 kg) |
Information About S8VK-T96024
The S8VK-T96024 is part of Omron Automation and Safety’s S8VK-T Series, engineered for high-power industrial and commercial automation environments. It operates on a wide-range three-phase AC input and provides a single regulated DC output with high efficiency. The unit supports adjustable output voltage and load sharing to enable parallel operation in high-demand systems. It is commonly used in control panels, manufacturing equipment, and ITE applications where continuous, high-current 24 VDC power is required.
Key Features:
- High-Power DC Output: Provides 24 VDC at up to 40 A for demanding automation loads.
- Three-Phase AC Input: Accepts 320–576 VAC (3-phase) for industrial power systems.
- High Efficiency Operation: Rated up to 92% efficiency to reduce heat and energy loss.
- Load Sharing Capability: Supports parallel operation for scalable power configurations.
- Adjustable Output Voltage: Enables fine-tuning to meet system voltage requirements.
- Industrial Protection Rating: IP20 design suitable for enclosed control panel installation.
- Wide Temperature Range: Operates from -40°C to 70°C with appropriate derating.
The S8VK-T96024 delivers the reliability and precision required for high-current DC power supply in industrial automation systems.
