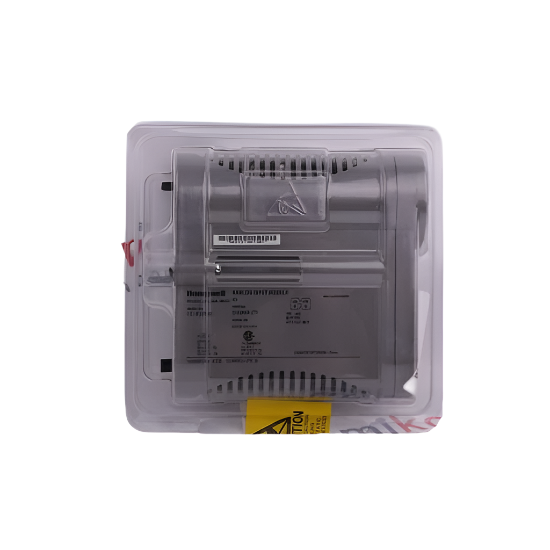

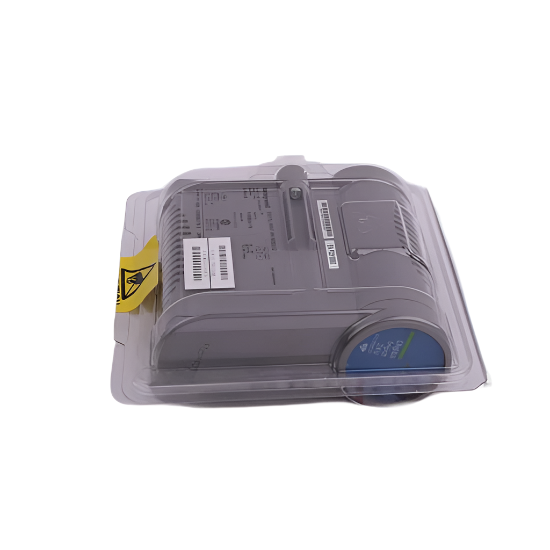

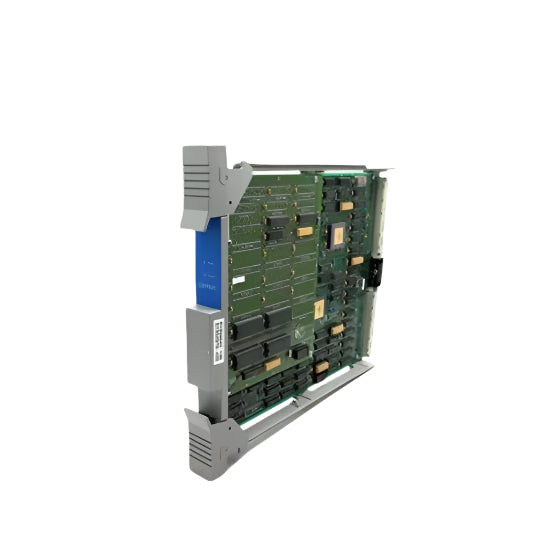

SC-TCMX01 | Honeywell Industrial Control Module
- Regular price
- $2,617.00
- Sale price
- $2,617.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SC-TCMX01
Description
The Honeywell SC‑TCMX01 (part number 51307198‑175) is a high‑precision industrial control module crafted for monitoring and managing temperature and pressure in demanding automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Gas Detection Equipment
|
| Part Number | SC-TCMX01 |
| Subcategory | Portable Multi-Gas Monitors |
| Series | ControlEdge RTU |
| Function | Remote Terminal Unit for Process Control & Data Acquisition |
| Processor | 400 MHz ARM Cortex-A8 |
| Memory | 256 MB RAM, 512 MB Flash |
| Power Supply Input | 10–36 VDC (typical: 24 VDC ±20%) |
| Power Consumption | Maximum 20 W |
| Operating Temperature | –40°C to +75°C |
| Storage Temperature | –40°C to +85°C |
| Humidity Range | 5%–95% RH (non-condensing) |
| Digital Inputs (DI) | 16 × 24 VDC |
| Analog Inputs (AI) | 8 × 16-bit (4–20 mA or 0–10 VDC) |
| Digital Outputs (DO) | 8 × 24 VDC, 0.5 A max |
| Analog Outputs (AO) | 4 × 4–20 mA, 12-bit resolution |
| Communication Ports | 2 × Ethernet (10/100 Mbps), 3 × Serial (RS-232/RS-485, up to 115.2 kbps) |
| Supported Protocols | Modbus RTU/TCP, DNP3, IEC 61850 |
| Enclosure Rating | IP66 |
| Surge Protection | 4 kV (Serial), 1.5 kV (Ethernet) |
| Shock Resistance | 30 g for 11 ms |
| Dimensions (H × W × D) | 210 mm × 135 mm × 75 mm |
| Weight | 1.8 kgs |
Information About SC-TCMX01
The SC-TCMX01 is part of Honeywell’s ControlEdge RTU series, specifically engineered for advanced process control and remote data acquisition in rugged industrial environments. Designed for critical infrastructure such as oil & gas, power, and water treatment systems, this compact RTU module delivers reliable, real-time monitoring with a high-performance ARM Cortex-A8 processor and extensive I/O capabilities. It supports multiple communication protocols including Modbus RTU/TCP, DNP3, and IEC 61850, and features a sealed IP66-rated enclosure for harsh outdoor and indoor applications. With robust power tolerance, wide temperature support, and built-in surge protection, the SC-TCMX01 is ideal for resilient automation deployments.
Key Features:
- Industrial-Grade Processing: Powered by a 400 MHz ARM Cortex-A8 processor with 256 MB RAM and 512 MB Flash, ensuring responsive real-time control in distributed environments.
- Versatile I/O Configuration: Includes 16 digital inputs (24 VDC), 8 analog inputs (16-bit), 8 digital outputs (24 VDC @ 0.5 A), and 4 analog outputs (4–20 mA, 12-bit)—supporting flexible process integration.
- Robust Communication Interfaces: Equipped with 2 Ethernet ports (10/100 Mbps) and 3 serial ports (RS-232/RS-485), supporting high-speed communications and integration with legacy and modern systems.
- Multi-Protocol Support: Supports Modbus RTU/TCP, DNP3, and IEC 61850 protocols for broad compatibility with SCADA and distributed control systems.
- Harsh Environment Operation: Functions across a wide operating temperature range from –40°C to +75°C and is enclosed in a corrosion-resistant IP66-rated housing with shock and vibration resistance.
- Efficient Power Management: Operates on 10–36 VDC (typical 24 VDC ±20%), with low power consumption (maximum 20 W) suitable for remote or solar-powered installations.
- High Surge and Isolation Protection: Features 4 kV isolation for serial ports and 1.5 kV for Ethernet, enhancing system resilience against surges and electrical noise.
- Real-Time Clock & Backup: Integrated RTC with 5-year battery backup at 25°C, ensuring time-stamped data integrity during power outages or communication loss.
The SC-TCMX01 combines rugged construction, powerful processing, and flexible I/O and communication features—making it a trusted choice for remote automation tasks in extreme conditions. Whether deployed in energy pipelines, treatment plants, or remote substations, it delivers the reliability, interoperability, and environmental durability essential for modern industrial control systems.
