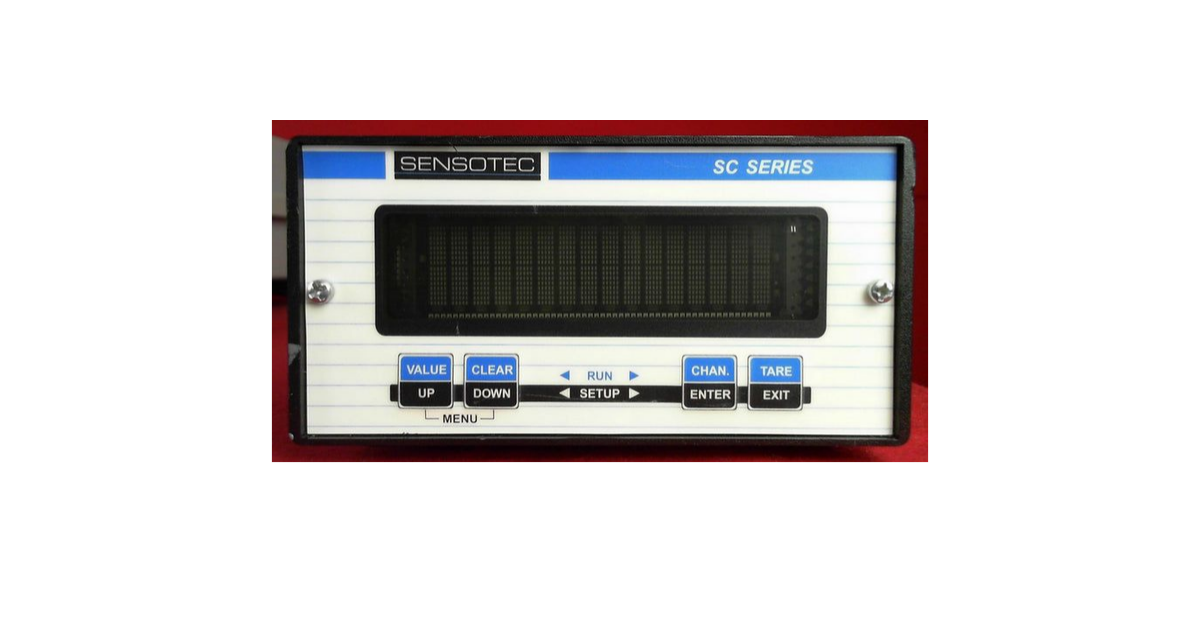

SC2000 | Honeywell Transducer Display 4 Strain Gage Input Channels
- Regular price
- $1,799.00
- Sale price
- $1,799.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SC2000
Description
The Honeywell SC2000 is a versatile and highly configurable transducer display and signal conditioning unit that supports up to four physical input channels and seven virtual channels. Engineered for precision measurement and system integration, it offers compatibility with a broad range of sensor types and provides advanced data processing and output features for dynamic testing environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
HVAC
|
| Part Number | SC2000 |
| Subcategory | HVAC Accessory & Rebuild Kit & Seal Kit |
| Input Channels | 1 to 4 physical, up to 7 virtual |
| Display Type | Dual-line, 16-character vacuum fluorescent display |
| Signal Conditioning | Excitation, gain, filtering, tare, scaling |
| Excitation Current | Up to 120 mA total |
| Analog Output | Isolated ±5 V, 0–10 V, 4–20 mA |
| Relay Outputs | Up to 16 configurable relay contact outputs |
| Serial Communication | RS-232 and RS-485 |
| Power Supply | 100–230 VAC (47–63 Hz) or optional 11–28 VDC |
| Operating Temperature | +4°C to +41°C |
| Weight | 1.81 kg (4 lb) |
Information About SC2000
The SC2000 is Honeywell’s premier signal conditioning and display solution for multi-channel sensor applications involving strain gages, displacement transducers, and temperature probes. It supports 1 to 4 physical sensor inputs, including unamplified strain gage transducers, amplified load and pressure sensors, AC/AC and DC/DC displacement transducers, and Pt100 RTDs. With its dual-line vacuum fluorescent display, operators can view live readings from up to four channels simultaneously. Signature Calibration simplifies setup by auto-recognizing compatible transducers.
Key Features:
- Multi-Channel Monitoring: Supports 1–4 physical channels and 7 virtual channels for expanded sensing applications.
- Broad Sensor Compatibility: Works with unamplified strain gages, amplified transducers, AC/AC and DC/DC LVDTs, and Pt100 RTDs.
- Signature Calibration: Enables automatic configuration with supported transducers for fast, error-free setup.
- Vacuum Fluorescent Display: Dual-line, 16-character display shows up to four real-time values simultaneously.
- Rich Output Capabilities: Provides isolated ±5 V, 0–10 V, or 4–20 mA analog outputs, plus up to 16 relay contact outputs.
- Advanced Data Functions: Includes peak/valley tracking, tare function, and individual high/low alarm limits per channel.
- Multiple Communication Ports: Equipped with RS-232 and RS-485 serial communication interfaces for system integration.
- Flexible Power Input: Operates on 100–230 VAC or optional 11–28 VDC for mobile or backup applications.
The SC2000 is an intelligent, rugged display and conditioning system optimized for demanding measurement applications requiring accuracy, flexibility, and real-time monitoring.
