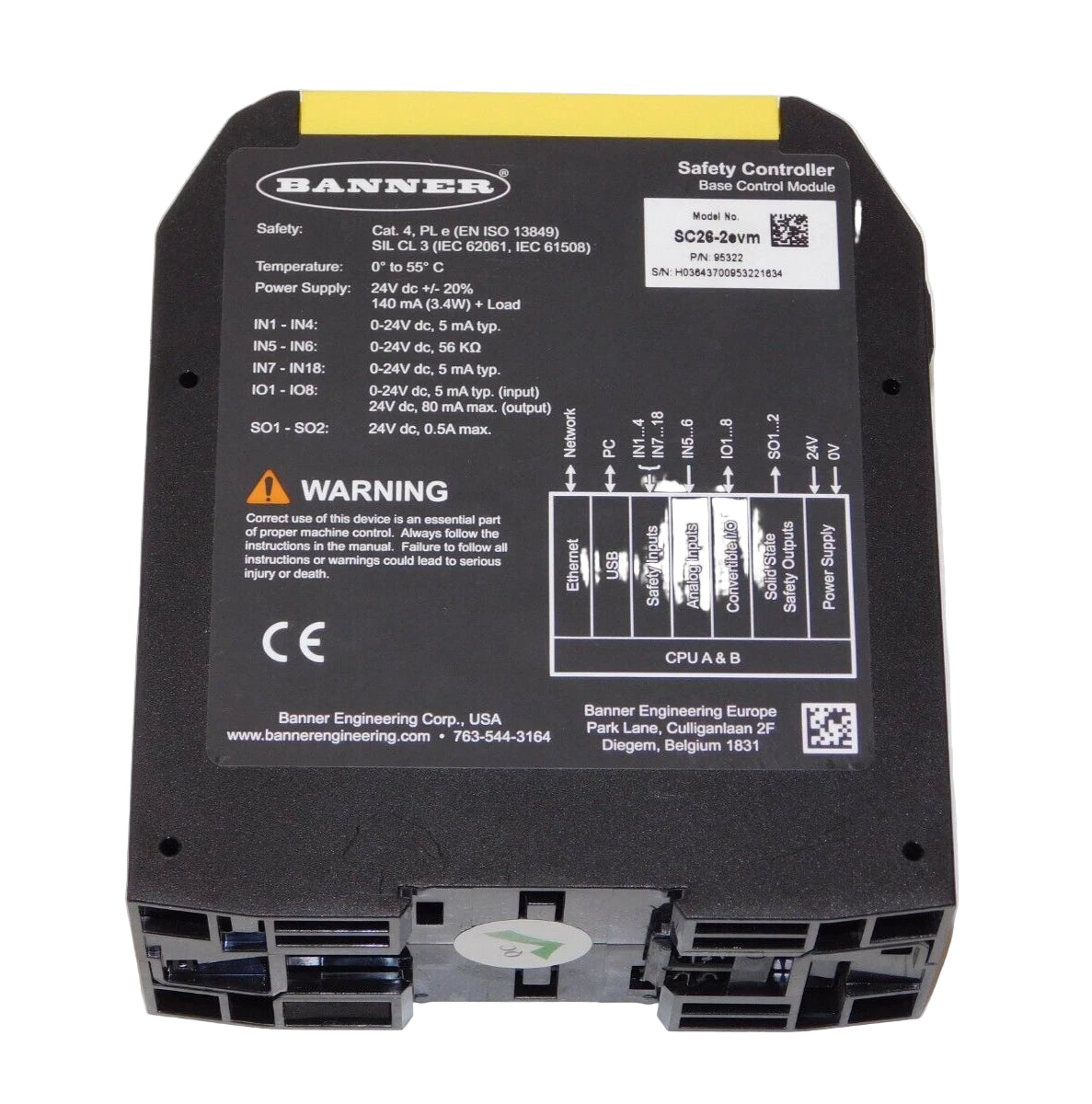

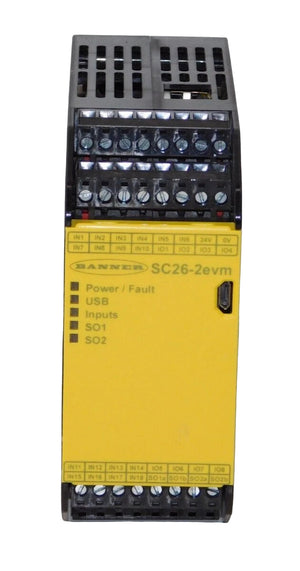

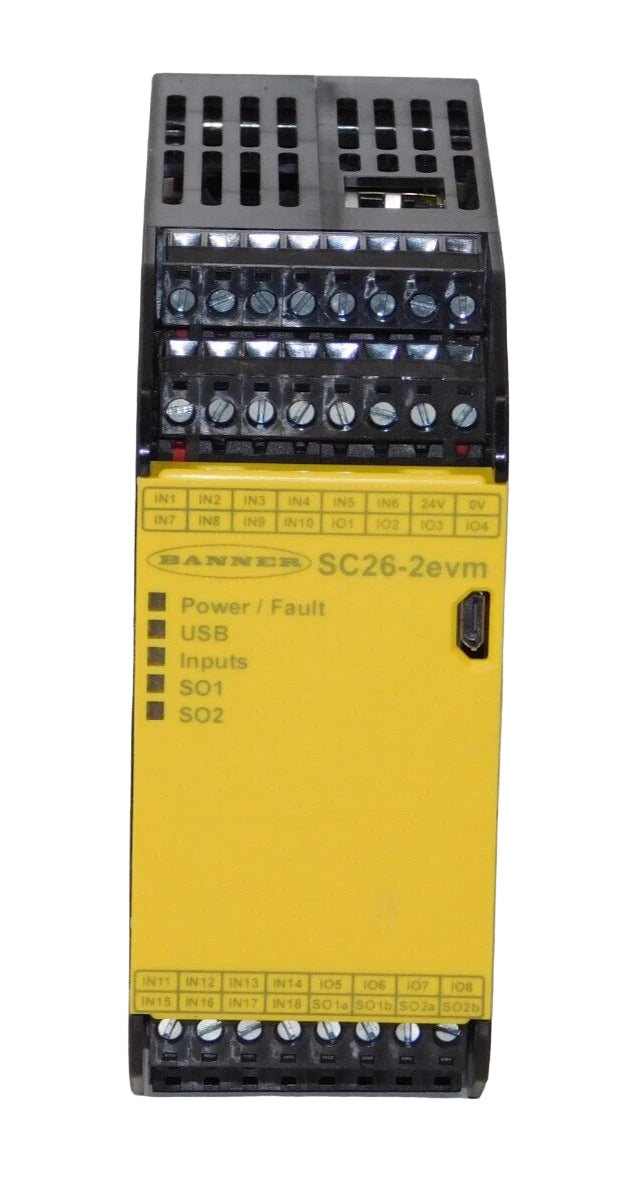

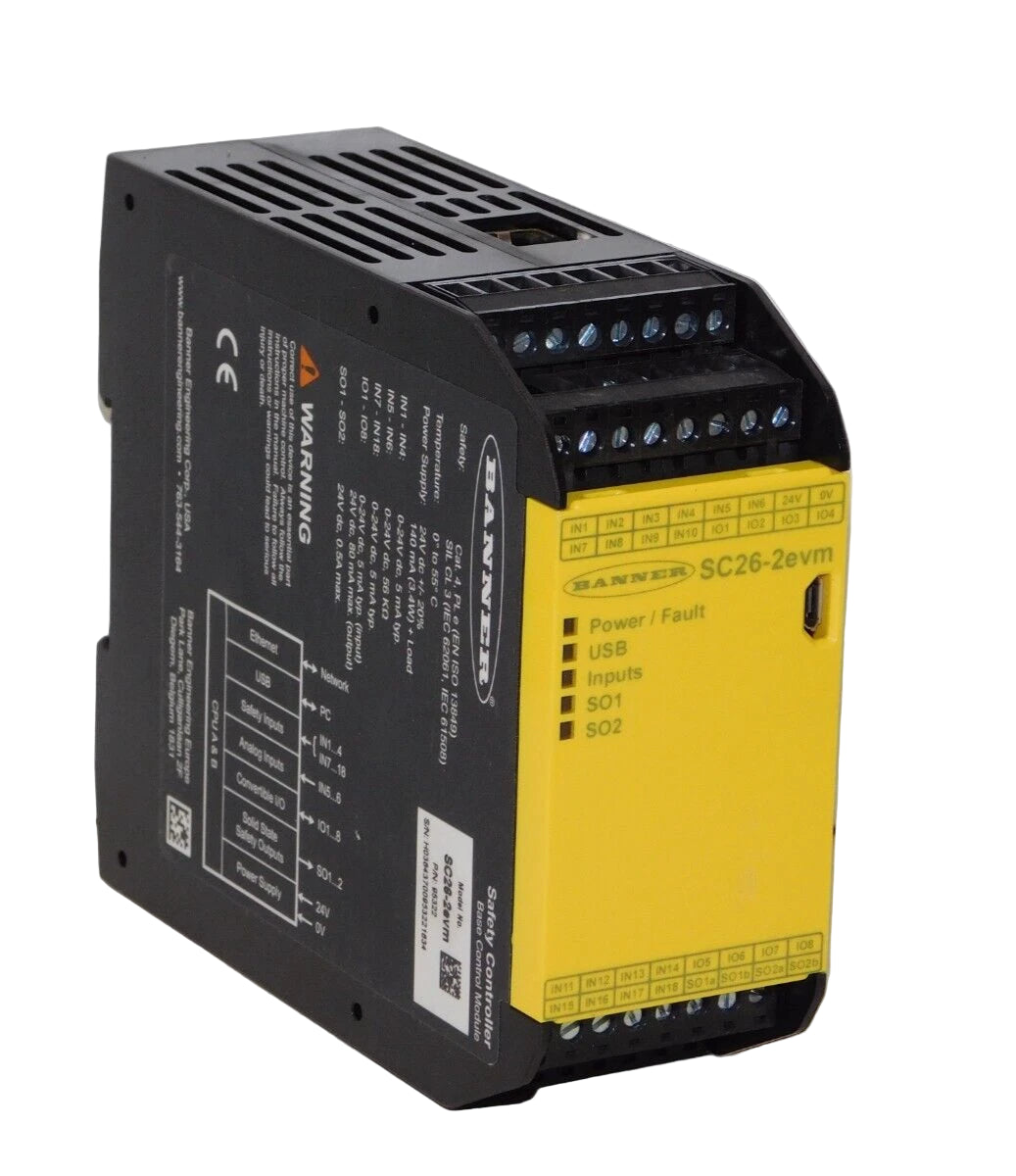

SC26-2EVM | Banner Ethernet Safety Controller
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
$1,989.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: SC26-2EVM
Description
The Banner SC26-2EVM Ethernet Safety Controller is a programmable safety device designed to monitor multiple safety inputs and provide reliable outputs. Featuring built-in Ethernet connectivity, the SC26-2EVM allows integration into industrial networks for diagnostics and control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner |
| Category | Safety Devices |
| Part Number | SC26-2EVM |
| Subcategory | Safety Controllers |
| Series | SC Series |
| Function | Programmable safety controller with Ethernet |
| Inputs | Up to 26 safety inputs |
| Safety Outputs | 2 solid-state redundant outputs |
| Auxiliary Outputs | Configurable status/diagnostic outputs |
| Communication Protocols | Ethernet/IP, Modbus TCP |
| Reset Modes | Manual and automatic reset options |
| Configuration | PC software, drag-and-drop logic programming |
| Supply Voltage | 24 V DC |
| Connection Type | Terminal block connections |
| Indicators | LED status indicators for power, inputs, and outputs |
| Housing Material | Industrial-grade enclosure |
| Mounting Type | DIN-rail |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +55°C |
| Safety Rating | SIL3, PL e (depending on configuration) |
| Certifications | CE, UL, TUV, CSA |
| Applications | Robotic cells, conveyors, packaging, automation safety systems |
| Weight | Approx. 400 g |
Information About SC26-2EVM
The SC26-2EVM is part of Banner’s SC Series of safety controllers, engineered to replace multiple safety relays with a single programmable platform. It supports up to 26 input devices and provides two independent safety outputs, enabling flexible configuration for diverse applications. The integrated Ethernet/IP and Modbus TCP communication capabilities allow real-time status reporting and network-level diagnostics. With its compact housing and simple configuration software, the SC26-2EVM is widely applied in robotic systems, conveyors, packaging machinery, and other automated processes.
Key Features:
- Programmable Safety Controller: Monitors multiple safety devices with configurable logic.
- Ethernet Connectivity: Supports Ethernet/IP and Modbus TCP for communication and diagnostics.
- Multiple Inputs: Accepts up to 26 input devices for comprehensive system coverage.
- Redundant Safety Outputs: Provides two independent solid-state safety outputs.
- Compact Housing: Saves panel space with DIN-rail mounting.
- Diagnostic Capability: Real-time status monitoring and fault detection via Ethernet.
- Simple Configuration: PC-based software for intuitive setup and logic programming.
- Compliance Ready: Meets international safety standards for machine safeguarding.
The SC26-2EVM delivers the reliability and precision required for advanced machine guarding and network-integrated safety control.
