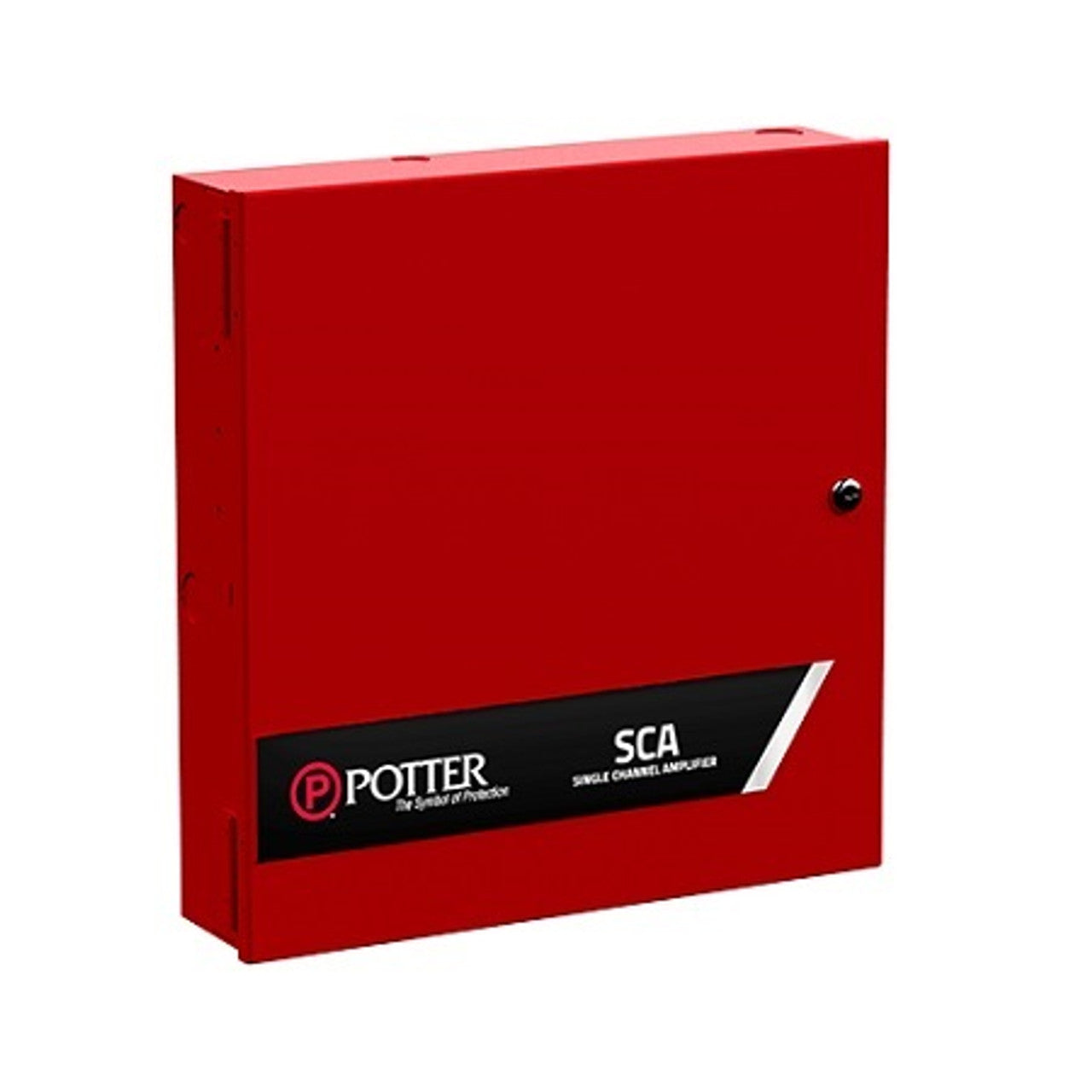

SCA-10070 | Potter 100W Single-Channel Amplifier, 25V/70V Selectable, P-Link Compatible
- Regular price
- $2,588.00
- Sale price
- $2,588.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: SCA-10070
Description
The Potter SCA-10070 is a 100W single-channel amplifier designed for use with fire alarm and voice evacuation systems. It delivers selectable 25VRMS and 70VRMS audio output, supporting both Class A and Class B speaker circuits. This amplifier ensures reliable audio distribution across multiple speaker zones in small, medium, and high-rise applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Part Number | SCA-10070 |
| Category | Fire Alarm Accessories |
| Subcategory | Amplifiers |
| Series | SCA Series |
| Product Type | Single-Channel Amplifier |
| Output Power | 100W |
| Voltage Output | 25VRMS / 70VRMS selectable |
| Audio Channels | 1 |
| Classification | AB |
| Speaker Circuits | 8 Class A or 8 Class B outputs |
| Power Input | 120VAC or 240VAC with battery charger circuit |
| Standby Current | 60 mA |
| Alarm Current | 766 mA |
| Operating Temperature | 0°C–49°C (32°F–120°F) |
| Humidity Range | 10%–93% @ 30°C, noncondensing |
| Maximum P-Link Length | 6500 ft |
| Maximum V-Link Length | 6500 ft |
| Maximum Amplifiers Supported | 31 |
| Dimensions (WxHxD) | 16" x 17" x 3 7/8" |
| Color | Red |
| Weight | 1 lb |
Information About SCA-10070
The SCA-10070 is part of Potter’s SCA Series and integrates seamlessly with the company’s proprietary P-Link communication protocol. It provides one audio channel and can support up to 31 amplifiers in a system, making it highly scalable for large installations. Each unit includes a stacker terminal block for up to 8 Class A or 8 Class B speaker outputs, ensuring installation flexibility. Built for dependable life safety performance, the amplifier is designed to operate in demanding environments with wide temperature and humidity tolerances.
Key Features:
- 100W Output Power: Delivers consistent audio performance for fire alarm and voice evacuation systems.
- Selectable Voltage: Supports both 25VRMS and 70VRMS outputs for flexible installations.
- Single-Channel Design: Provides one dedicated audio channel for reliable signal distribution.
- Speaker Circuit Options: Accommodates 8 Class A or 8 Class B speaker outputs with included terminal block.
- P-Link Communication: Integrates into Potter’s proprietary P-Link network for simplified connectivity.
- Scalable Deployment: Supports up to 31 amplifiers per system for large-scale applications.
- Rugged Construction: Operates within 0°C–49°C and up to 93% noncondensing humidity.
- Wide Application Range: Designed for small, medium, and high-rise building safety systems.
The SCA-10070 delivers the reliability and precision required for professional fire alarm audio distribution.
