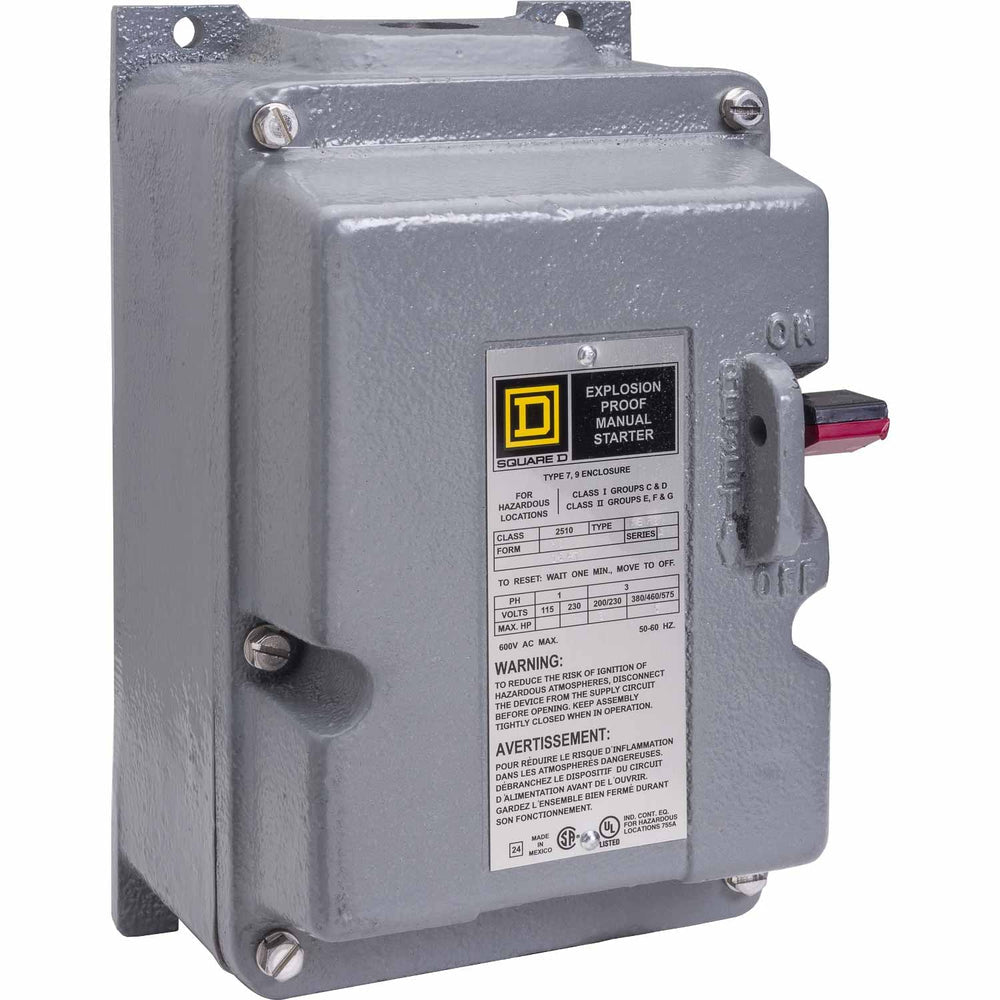

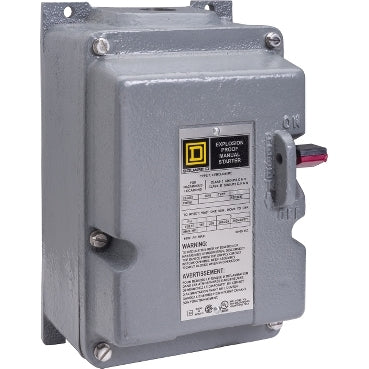

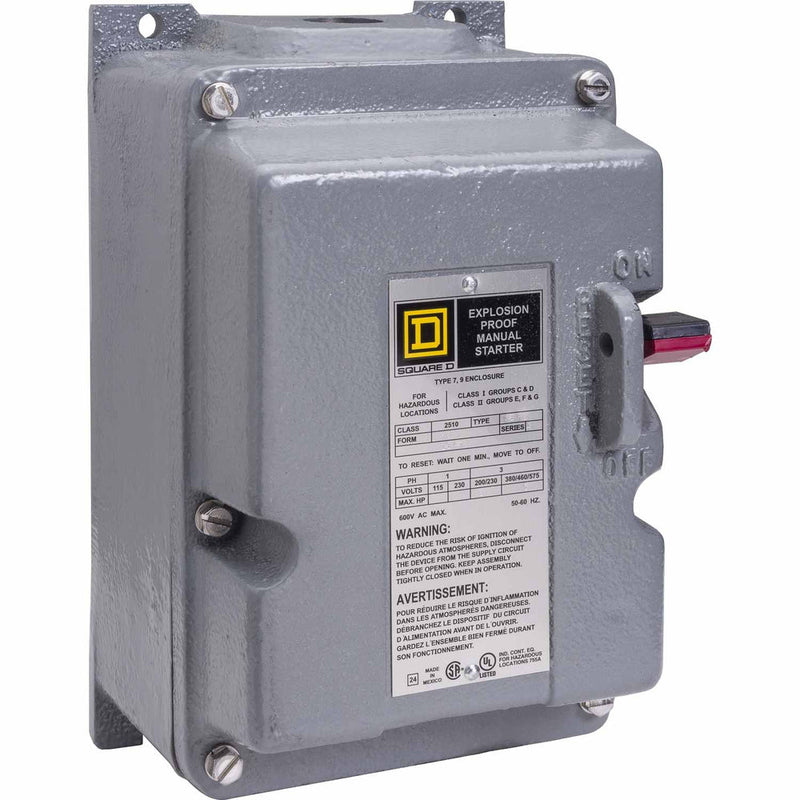

Schneider Electric 2510MBR2 Manual Motor Starter 18A NEMA 7/9 Hazardous Location
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 2510MBR2
Description
The Schneider Electric 2510MBR2 is a manual motor starter designed for direct control and overload protection of three-phase motors. It features an 18A rating with support for up to 600 VAC systems and is housed in a rugged NEMA 7/9 enclosure for hazardous environments. This unit provides dependable manual operation and thermal protection for industrial motor applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Motor Control |
| Part Number | 2510MBR2 |
| Subcategory | Manual Motor Starters |
| Series | Square D 2510 |
| Starter Type | Non-Reversing Manual Starter |
| NEMA Size | M-0 |
| Poles | 3 |
| Rated Current | 18 A |
| Rated Voltage | 600 VAC / 250 VDC |
| Horsepower Rating | 3 HP at 200–230 VAC; 5 HP at 380–575 VAC |
| Control Type | Push-button |
| Overload Protection | Melting alloy thermal units |
| Enclosure Type | NEMA 7/9 Cast Iron |
| Connection Type | Pressure wire clamp |
| Certifications | UL, CSA, NEMA |

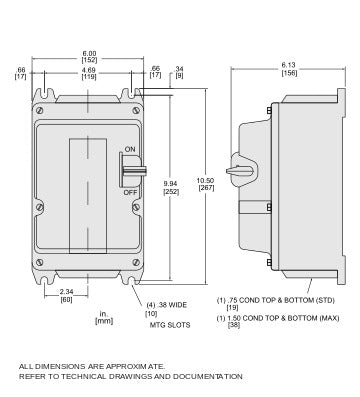

| Dimensions (H x W x D) | 10.5 x 6 x 6.13 in |
| Weight | 32.13 lb |
Information About 2510MBR2
The 2510MBR2 is part of Schneider Electric’s Square D 2510 series of manual starters, engineered for integral horsepower motor control. It incorporates a 3-pole configuration with melting alloy thermal overload units that detect and respond to excessive current conditions. Designed for use in hazardous locations, the cast iron NEMA 7/9 enclosure provides durability and environmental protection in demanding industrial settings. The device uses pressure wire clamp terminals and push-button control, making it suitable for standalone motor control applications without auxiliary contacts.
Key Features:
- Manual Motor Starter Design: Provides direct on/off control for three-phase motors with integrated overload protection
- 18A Current Rating: Supports motor loads up to 18 amps for industrial applications
- Thermal Overload Protection: Uses melting alloy thermal units to protect motors from overheating and overload conditions
- Hazardous Location Enclosure: Cast iron NEMA 7/9 enclosure suitable for Class I and II hazardous environments
- 3-Pole Configuration: Ensures full three-phase motor control capability
- Push-Button Operation: Includes built-in start/stop push-button control for manual operation
- High Voltage Capacity: Rated for up to 600 VAC and 250 VDC operation
- Pressure Clamp Terminals: Provides secure and reliable wiring connections
The 2510MBR2 delivers the reliability and precision required for manual motor control and overload protection in hazardous industrial environments.
