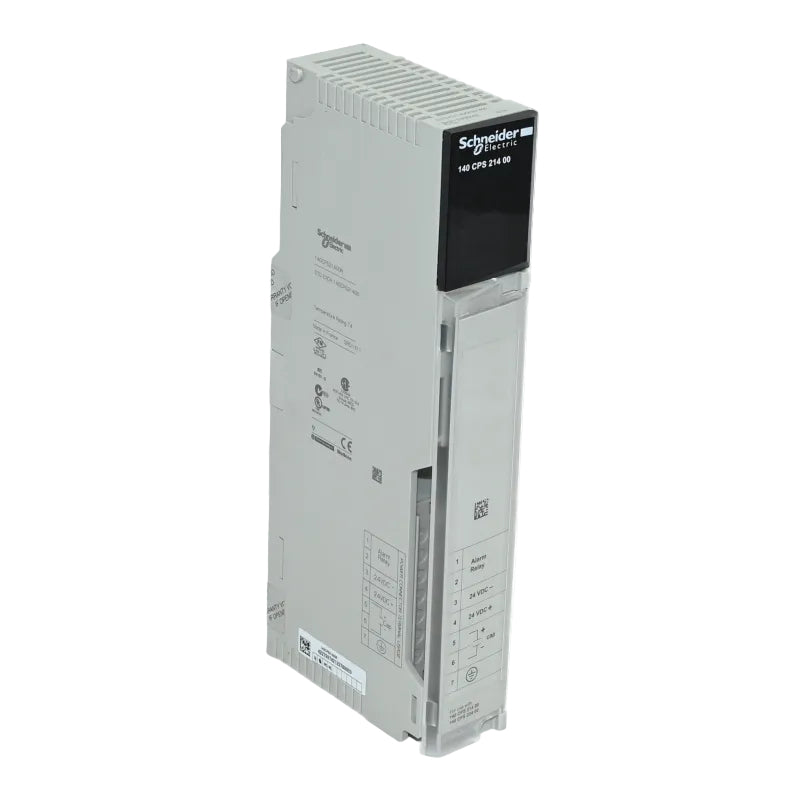

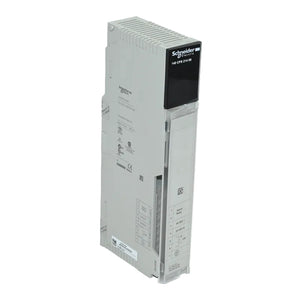

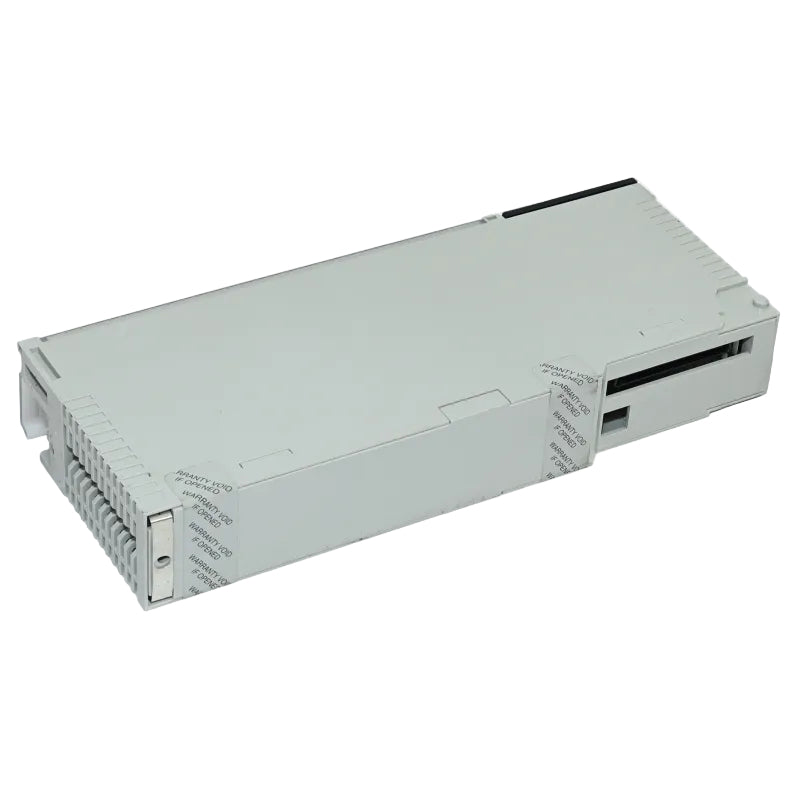

Schneider Electric 140-CPS-214-00 Modicon Quantum Power Supply
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 140-CPS-214-00
Description
The Schneider Electric 140-CPS-214-00 is a 24 V DC power supply module designed for the Modicon Quantum programmable logic controller (PLC) platform. It converts the incoming 20–30 V DC supply into a regulated 5.1 V DC output, delivering up to 8 A to power the PLC backplane and compatible modules. Its summable design supports power supply configurations requiring additional capacity within industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | PLC & Automation |
| Part Number | 140-CPS-214-00 |
| Subcategory | PLC Power Supply Module |
| Product Family | Modicon Quantum |
| Device Type | Summable Power Supply Module |
| Input Voltage | 24 V DC (20–30 V DC) |
| Maximum Input Current | 3.8 A |
| Inrush Current | 14 A at 20 V DC; 25 A at 24 V DC |
| Output Voltage | 5.1 V DC |
| Output Protection | Internal Overvoltage and Overcurrent Protection |
| Power Status Indicator | Green PWR OK LED |
| Alarm Output | 1 Normally Closed Relay Contact |
| Relay Contact Rating | 6 A at 220 V AC / 5 A at 30 V DC |
| Field Wiring Connector | 7-Point Terminal Strip |
| Module Format | Standard Modicon Quantum Module |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Weight | 0.65 kg |
Information About 140-CPS-214-00
The 140-CPS-214-00 belongs to the Schneider Electric Modicon Quantum automation platform. It provides a regulated 5.1 V DC output with a maximum current capacity of 8 A for compatible Quantum PLC racks. The module includes internal overvoltage and overcurrent protection, along with a green PWR OK LED that indicates when power is supplied to the bus. A normally closed relay contact provides a signal for power failure monitoring, supporting integration into industrial control and diagnostic systems.
Key Features:
-
Modicon Quantum Compatibility: Designed to supply power to compatible Modicon Quantum PLC racks and modules.
-
24 V DC Input: Accepts an input voltage range of 20–30 V DC.
-
Regulated 5.1 V DC Output: Supplies the PLC backplane with the required operating voltage.
-
8 A Output Capacity: Provides up to 8 A of summable output current.
-
Internal Protection: Includes overvoltage and overcurrent protection for the power supply output.
-
Power Status Indicator: Features a green PWR OK LED for local power status monitoring.
-
Fault Signaling Contact: Provides a normally closed relay contact for power failure indication.
-
Industrial Installation: Uses a standard module format for installation in compatible Modicon Quantum racks.
The 140-CPS-214-00 delivers regulated power and essential status monitoring for Modicon Quantum PLC systems used in industrial automation and process control.
