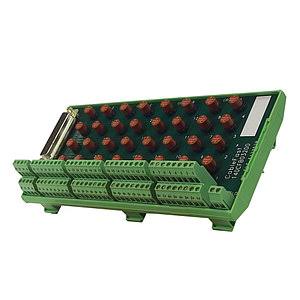

Schneider Electric 140CFB03200 Modicon Quantum Fused Terminal Block
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 140CFB03200
Description

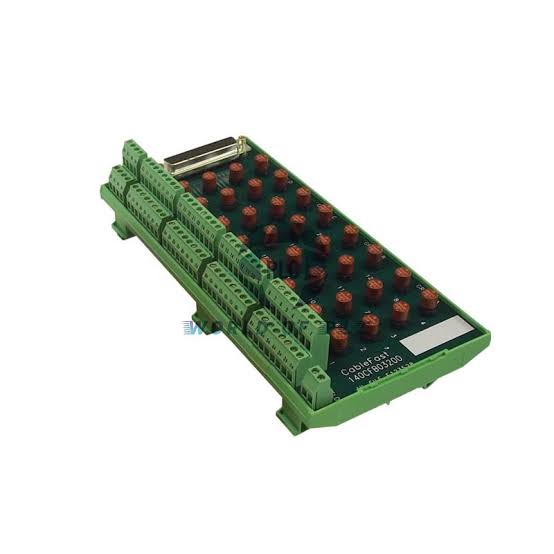

The Schneider Electric 140CFB03200 is a fused CableFast terminal block designed for use with compatible Modicon Quantum digital I/O modules. It provides 32 connection points arranged in four groups of eight, with individual 0.8 A fusing for each point to help isolate faults and prevent a single wiring failure from affecting other inputs. The block uses captive screw terminals and a 50-pin female SUB-D connector for organized field wiring in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | PLC & Automation |
| Part Number | 140CFB03200 |
| Subcategory | Fused Terminal Block |
| Product Range | Modicon Quantum |
| Product Type | CableFast Fused Terminal Block |
| Point Configuration | 4 Groups of 8 Points |
| Fuse Rating | 0.8 A per Point |
| Terminals per Point | 2 |
| Electrical Connection | Captive Screw Terminals |
| Connector | 50-Pin Female SUB-D |
| Mounting Type | DIN Rail |
| Dimensions (W × H × D) | 9.3 × 3.3 × 4.4 in |
| Weight | 0.45 kg |
Information About 140CFB03200
The 140CFB03200 belongs to the Schneider Electric Modicon Quantum automation platform and is a CableFast wiring accessory rather than a standalone PLC controller. It is designed primarily for two-wire digital input connections, with each point allocated two terminals. The terminal block groups 32 points into four sets of eight and provides 0.8 A fusing per point to help isolate individual circuit faults. It is compatible with selected Modicon Quantum I/O modules, including 140DAI35300, 140DAI45300, 140DAI55300, 140DDI35300, 140DDI85300, and 140DDO15310.
Key Features:
-
32 Connection Points: Provides organized field wiring for 32 compatible I/O points.
-
Individual Point Fusing: Includes 0.8 A fusing per point to help isolate faults.
-
Four Groups of Eight: Arranges connections into four clearly separated groups.
-
Two-Terminal Connection Per Point: Supports two-wire field wiring for compatible digital inputs.
-
CableFast Design: Simplifies wiring between field devices and Modicon Quantum I/O modules.
-
50-Pin SUB-D Connector: Provides a female connector interface for compatible I/O modules.
-
Captive Screw Terminals: Secure field wiring connections.
-
DIN Rail Mounting: Designed for installation in compatible industrial control cabinets.
The 140CFB03200 provides organized, individually fused field connections for compatible Modicon Quantum digital I/O applications.
Description
The Schneider Electric 140CFB03200 is a fused CableFast terminal block designed for use with compatible Modicon Quantum digital I/O modules. It provides 32 connection points arranged in four groups of eight, with individual 0.8 A fusing for each point to help isolate faults and prevent a single wiring failure from affecting other inputs. The block uses captive screw terminals and a 50-pin female SUB-D connector for organized field wiring in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | PLC & Automation |
| Part Number | 140CFB03200 |
| Subcategory | Fused Terminal Block |
| Product Range | Modicon Quantum |
| Product Type | CableFast Fused Terminal Block |
| Point Configuration | 4 Groups of 8 Points |
| Fuse Rating | 0.8 A per Point |
| Terminals per Point | 2 |
| Electrical Connection | Captive Screw Terminals |
| Connector | 50-Pin Female SUB-D |
| Mounting Type | DIN Rail |
| Dimensions (W × H × D) | 9.3 × 3.3 × 4.4 in |
| Weight | 0.45 kg |
Information About 140CFB03200
The 140CFB03200 belongs to the Schneider Electric Modicon Quantum automation platform and is a CableFast wiring accessory rather than a standalone PLC controller. It is designed primarily for two-wire digital input connections, with each point allocated two terminals. The terminal block groups 32 points into four sets of eight and provides 0.8 A fusing per point to help isolate individual circuit faults. It is compatible with selected Modicon Quantum I/O modules, including 140DAI35300, 140DAI45300, 140DAI55300, 140DDI35300, 140DDI85300, and 140DDO15310.
Key Features:
-
32 Connection Points: Provides organized field wiring for 32 compatible I/O points.
-
Individual Point Fusing: Includes 0.8 A fusing per point to help isolate faults.
-
Four Groups of Eight: Arranges connections into four clearly separated groups.
-
Two-Terminal Connection Per Point: Supports two-wire field wiring for compatible digital inputs.
-
CableFast Design: Simplifies wiring between field devices and Modicon Quantum I/O modules.
-
50-Pin SUB-D Connector: Provides a female connector interface for compatible I/O modules.
-
Captive Screw Terminals: Secure field wiring connections.
-
DIN Rail Mounting: Designed for installation in compatible industrial control cabinets.
The 140CFB03200 provides organized, individually fused field connections for compatible Modicon Quantum digital I/O applications.
