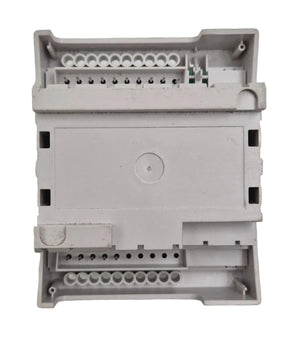

Schneider Electric 527-NPR TAC Xenta NetPlus Router
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 527-NPR
Description
The Schneider Electric 527-NPR is a TAC Xenta NetPlus Router designed to connect and manage communications between I/NET building automation systems and Ethernet networks. It enables remote network access and routing for building control applications, supporting communication between I/NET devices and connected management workstations. The unit is intended for building automation infrastr
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Building Automation |
| Part Number | 527-NPR |
| Subcategory | Network Router / Building Automation Gateway |
| Product Family | TAC Xenta |
| Device Type | NetPlus Router |
| Primary Application | I/NET Building Automation Networking |
| Operating Voltage | 24 V AC ±20%, 50/60 Hz, or 19–40 V DC |
| Power Consumption | Maximum 5 W |
| Transformer Sizing | 5 VA |
| Ethernet Interface | 10Base-T, RJ45, TCP/IP |
| RS-232 Interface | RJ45, 8-pin; 2400–57600 bps |
| RS-485 Interface | Asynchronous serial interface |
| Enclosure Material | ABS/PC |
| Enclosure Rating | IP20 |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +50°C |
| Weight | 0.2 kg |
Information About 527-NPR
The 527-NPR belongs to the Schneider Electric TAC Xenta family of building automation network devices. It provides NetPlus Router functionality for I/NET systems but does not include the web-based presentation capabilities available on the standard TAC Xenta 527. The device communicates with I/NET systems over Ethernet and can be configured through a web browser. Its serial communication ports support local connections for configuration and communication with compatible equipment.
Key Features:
-
NetPlus Router Functionality: Provides network routing capabilities for compatible I/NET building automation systems.
-
Ethernet Connectivity: Connects the building automation system to an Ethernet network using TCP/IP.
-
I/NET Integration: Supports communication between I/NET devices and connected workstations.
-
Web-Based Configuration: Allows configuration through a web browser.
-
Serial Communication: Provides RS-232 and RS-485 interfaces for supported communication and service connections.
-
Building Automation Application: Designed for integration into building control and management infrastructure.
-
Compact Enclosure: Supports installation in control panels and automation equipment locations.
-
Dedicated Router Design: Provides NetPlus Router capabilities without the web-based presentation features of the standard TAC Xenta 527.
The 527-NPR provides network connectivity and routing support for Schneider Electric building automation systems using I/NET communications.
