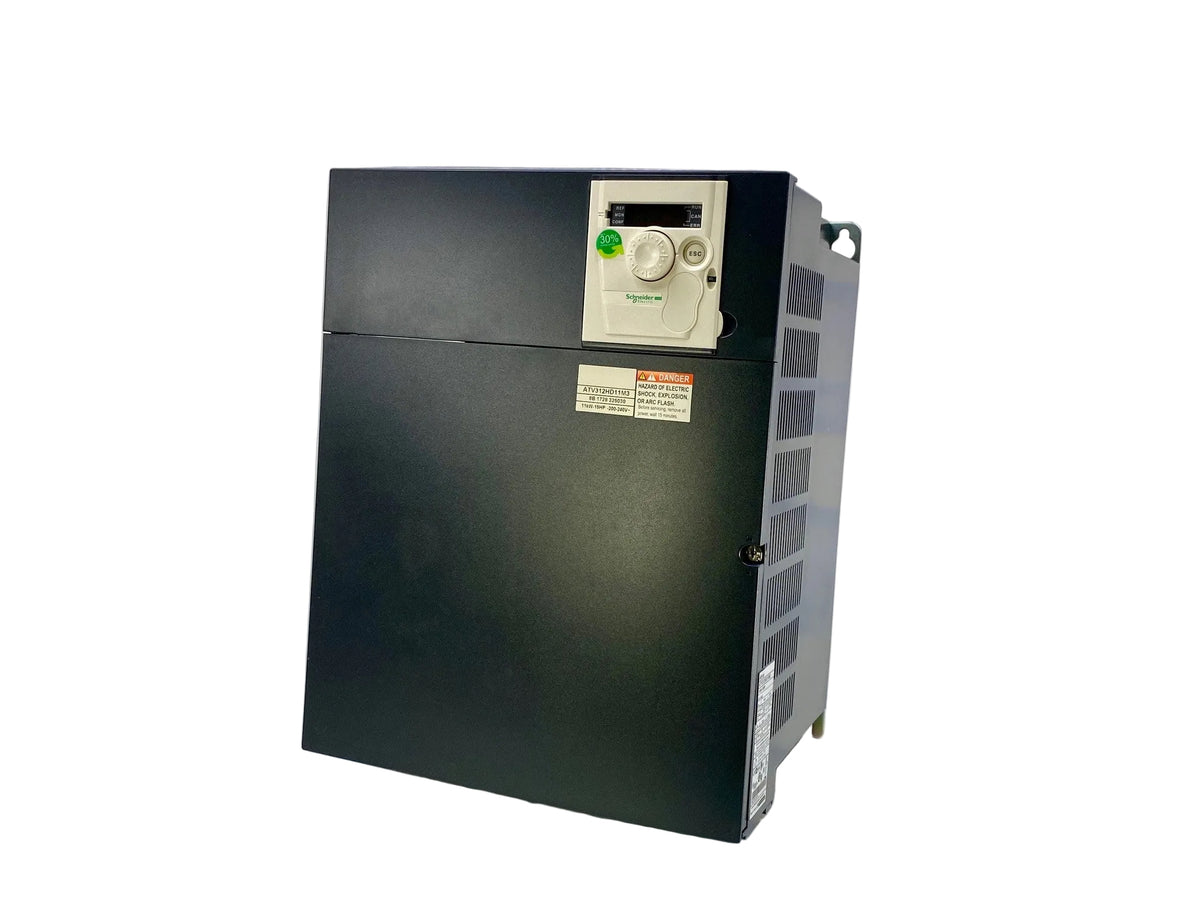

Schneider Electric ATV312HD11M3 Altivar 312 11 kW Variable Speed Drive
- Regular price
- $2,892.00
- Sale price
- $2,892.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ATV312HD11M3
Description
The Schneider Electric ATV312HD11M3 Altivar 312 Variable Speed Drive is an industrial frequency inverter designed to control the speed and torque of three-phase asynchronous motors. It delivers 11 kW (15 HP) of motor power and operates on a 200–240 V AC three-phase supply. The drive features sensorless flux vector control, integrated heatsink cooling, and Modbus and CANopen communication capabilities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Industrial Automation |
| Part Number | ATV312HD11M3 |
| Subcategory | Variable Frequency Drives |
| Product Family | Altivar 312 |
| Product Type | Variable Speed Drive (VFD) |
| Rated Motor Power | 11 kW (15 HP) |
| Rated Supply Voltage | 200–240 V AC |
| Supply Phase | Three-phase |
| Supply Frequency | 50–60 Hz |
| Continuous Output Current | 54 A at 4 kHz |
| Line Current | 63.5 A at 200 V / 55.6 A at 240 V |
| Maximum Transient Current | 81 A for 60 seconds |
| Apparent Power | 22 kVA |
| Control Method | Sensorless flux vector control with PWM |
| Communication Protocols | Modbus, CANopen |
| Protection Rating | IP20 base enclosure; higher protection depends on covers and installation |
| Dimensions (W × H × D) | 245 × 329.5 × 192 mm |
| Weight | 19.84 lb |
Information About ATV312HD11M3
The ATV312HD11M3 is part of Schneider Electric's Altivar 312 range of variable speed drives for industrial machinery. It supports asynchronous motor applications requiring adjustable speed and torque control. The drive provides a rated motor power of 11 kW, with a continuous output current of 54 A at a 4 kHz switching frequency. Its communication interfaces support Modbus and CANopen, allowing integration into compatible automation systems.
-
Manufacturer: Schneider Electric industrial automation equipment.
-
Product Family: Altivar 312 variable speed drives.
-
Rated Motor Power: 11 kW (15 HP).
-
Input Voltage: 200–240 V AC, three-phase.
-
Continuous Output Current: 54 A at 4 kHz.
-
Motor Control: Sensorless flux vector control with PWM.
-
Communication: Modbus and CANopen protocols.
-
EMC Filter: No integrated EMC filter.
The ATV312HD11M3 delivers the motor speed and torque control required for compatible industrial machinery and automation applications.
