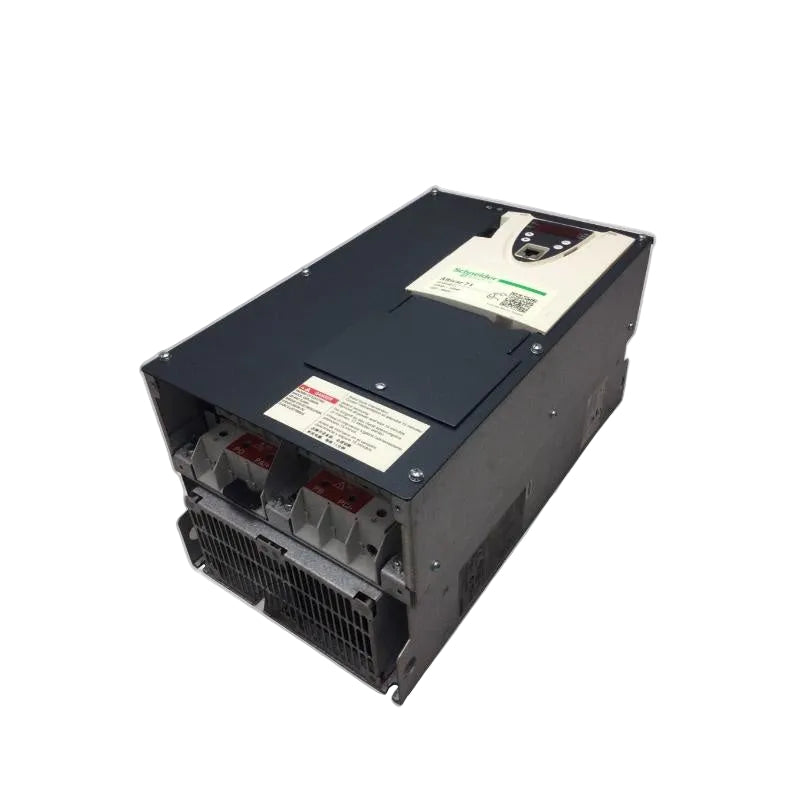

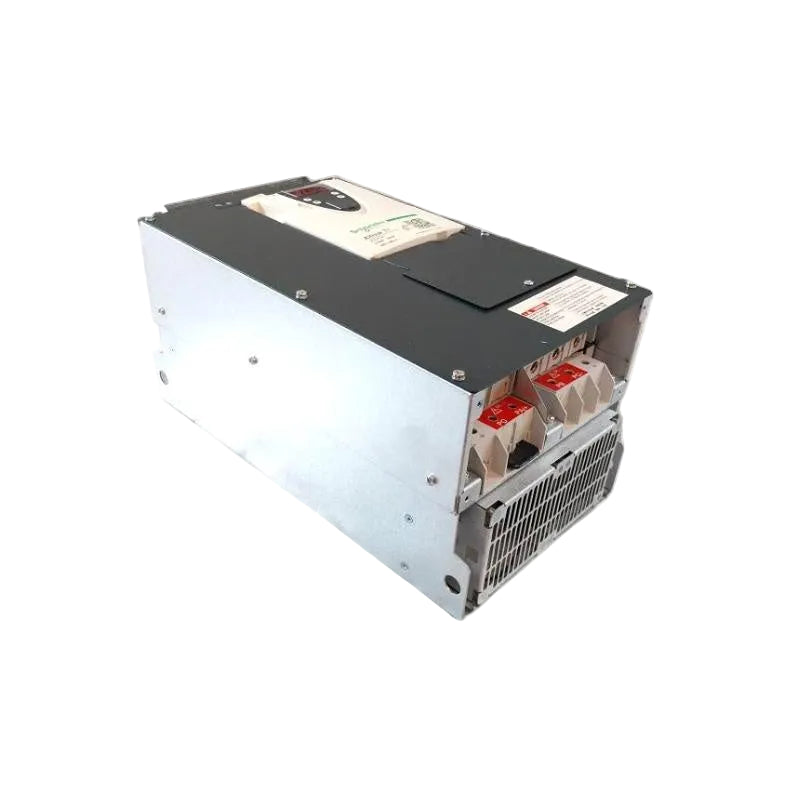

Schneider Electric ATV71HD22N4Z Altivar 71 22kW Variable Speed Drive
- Regular price
- $2,365.00
- Sale price
- $2,365.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ATV71HD22N4Z
Description
The Schneider Electric ATV71HD22N4Z Altivar 71 variable speed drive provides motor speed and torque control for industrial machinery. It supports advanced motor-control modes, Modbus and CANopen communications, and an adjustable switching frequency. Its integrated EMC filter helps reduce electromagnetic interference in compatible installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Drives & Motors |
| Part Number | ATV71HD22N4Z |
| Subcategory | Variable Frequency Drive |
| Product Range | Altivar 71 |
| Motor Power | 22 kW (30 HP) |
| Input Voltage | 380–480 V AC |
| Input Phases | 3 Phase |
| Line Current | 42 A at 480 V; 50 A at 380 V |
| Nominal Output Current | 40 A at 460 V; 48 A at 380 V |
| Output Frequency | 0.1–599 Hz |
| Switching Frequency | 1–16 kHz, subject to derating |
| Communication Protocols | Modbus, CANopen |
| Display Terminal | Remote Graphic Terminal Not Included |
| Dimensions (H × W × D) | 420 × 230 × 236 mm |
| Weight | 21 kg |
Information About ATV71HD22N4Z
The ATV71HD22N4Z is part of Schneider Electric’s Altivar 71 series of variable speed drives for complex, high-power machines. It is rated for 22 kW (30 HP) motors on a three-phase 380–480 V AC supply. The drive provides nominal output current of 40 A at 460 V or 48 A at 380 V under the specified operating conditions. It supports Modbus and CANopen communication protocols for integration with industrial automation systems.
Key Features:
-
22 kW Motor Capacity: Supports industrial motors rated up to 30 HP.
-
Three-Phase Power Supply: Operates with a 380–480 V AC input.
-
Advanced Motor Control: Supports vector control with or without speed feedback.
-
Integrated EMC Filter: Helps reduce electromagnetic interference.
-
Modbus Communication: Enables integration with compatible automation controllers.
-
CANopen Communication: Supports communication with industrial motion and control systems.
-
Adjustable Switching Frequency: Configurable from 1 to 16 kHz, subject to derating requirements.
-
High-Speed Operation: Supports an output frequency range of 0.1–599 Hz.
The ATV71HD22N4Z delivers flexible motor speed and torque control for demanding industrial machinery.
