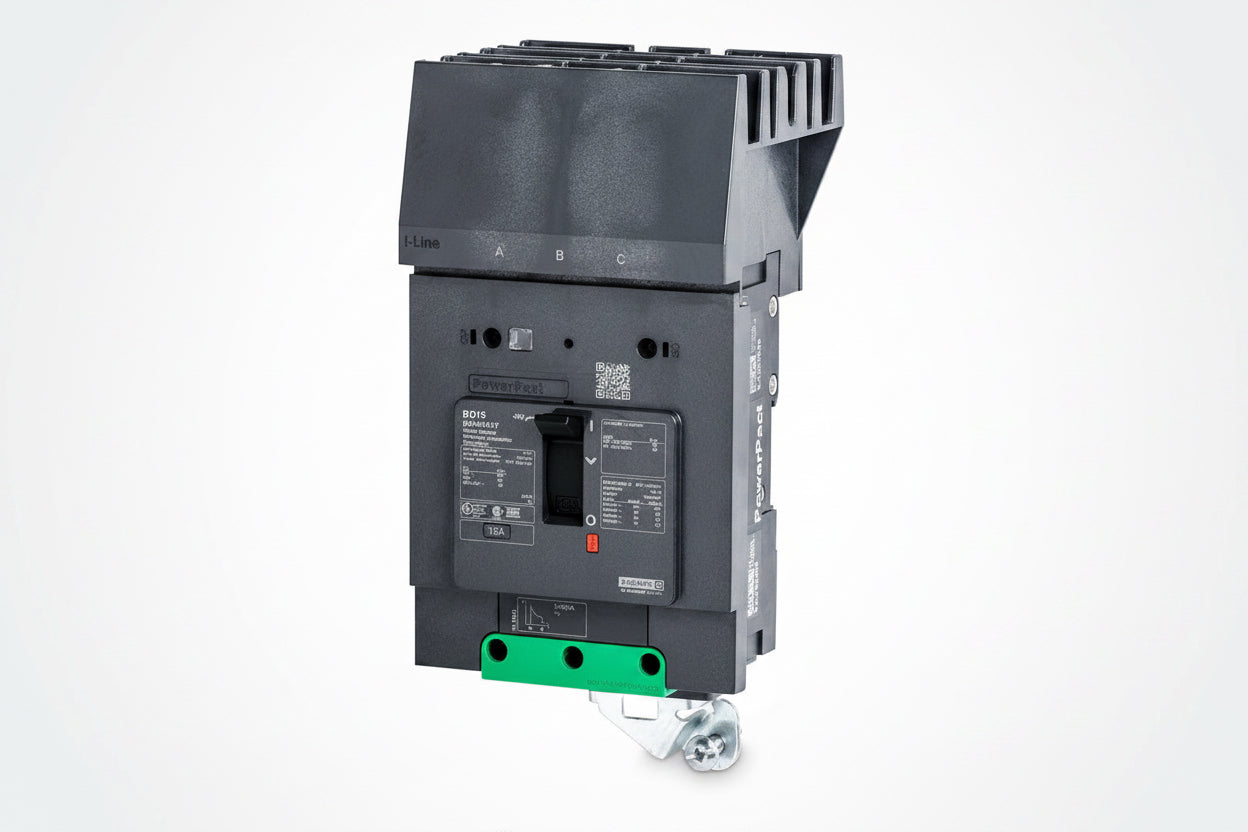

Schneider Electric BDA34015Y PowerPact B 15A 3-Pole Circuit Breaker
- Regular price
- $845.00
- Sale price
- $845.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BDA34015Y
Description
The Schneider Electric BDA34015Y is a PowerPact B molded case circuit breaker rated at 15 A, 3 poles, and 480Y/277 VAC. It uses thermal-magnetic protection with I-Line plug-in mounting and an 18 kA interrupt rating for industrial and commercial electrical distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | BDA34015Y |
| Subcategory | Molded Case |
| Manufacturer | Schneider Electric / Square D |
| Family | PowerPact B |
| Type | BDA |
| Product Type | Molded Case Circuit Breaker |
| Amperage | 15 A |
| Voltage | 480Y/277 VAC |
| Poles | 3 |
| Phase | 3 |
| Frequency | 50/60 Hz |
| Interrupt Rating at 480/277 VAC | 18 kA |
| Interrupt Rating at 240 VAC | 25 kA |
| Protection | Thermal Magnetic |
| Continuous Current Rating | 80% |
| Trip Functions | Long-Time and Instantaneous |
| Mounting Type | I-Line |
| Connection | I-Line / Mechanical Lug |
| Terminal Connection | I-Line ON End / Mechanical Lug OFF End |
| Frame Size | 125A/BD |
| Phase Connection | ABC |
| Wire Size | 14 AWG to 2/0 AWG Aluminum/Copper |
| Temperature Rating | -13°F to 158°F (-25°C to 70°C) |
| Dimensions (H × W × D) | 5.39 × 3.19 × 3.50 inches |
| Weight | 2.90 lbs (1.315 kg) |
Information About BDA34015Y
The BDA34015Y is part of the Schneider Electric PowerPact B circuit breaker family and is configured for three-phase electrical distribution systems. Its thermal-magnetic trip unit provides long-time and instantaneous trip functions with an 80% continuous current rating. The breaker uses I-Line style plug-in connection with an aluminum mechanical lug connection on the OFF end. It is designed for 480Y/277 VAC applications and is certified to applicable standards including UL 489.
Key Features:
- 15 A Rating: Provides a 15 A continuous circuit protection rating for compatible applications.
- Three-Pole Design: Provides three-pole switching and protection for three-phase electrical systems.
- 480Y/277 VAC: Rated for 480Y/277 VAC AC electrical distribution applications.
- 18 kA Interrupt Rating: Provides an 18 kA interrupt rating at the specified 480/277 VAC level.
- Thermal-Magnetic Protection: Combines thermal overload and instantaneous short-circuit protection.
- I-Line Mounting: Uses an I-Line style plug-in connection for compatible distribution equipment.
- PowerPact B Frame: Belongs to the PowerPact B family with a 125A/BD frame size.
- UL 489 Certified: Meets UL 489 requirements for molded case circuit breakers.
The BDA34015Y delivers the reliability and precision required for electrical distribution and circuit protection applications.
