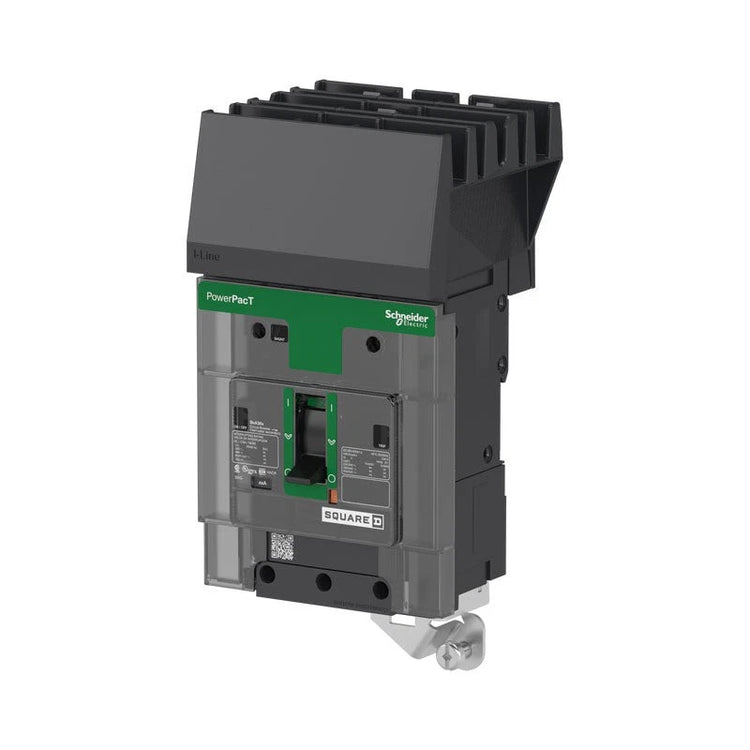

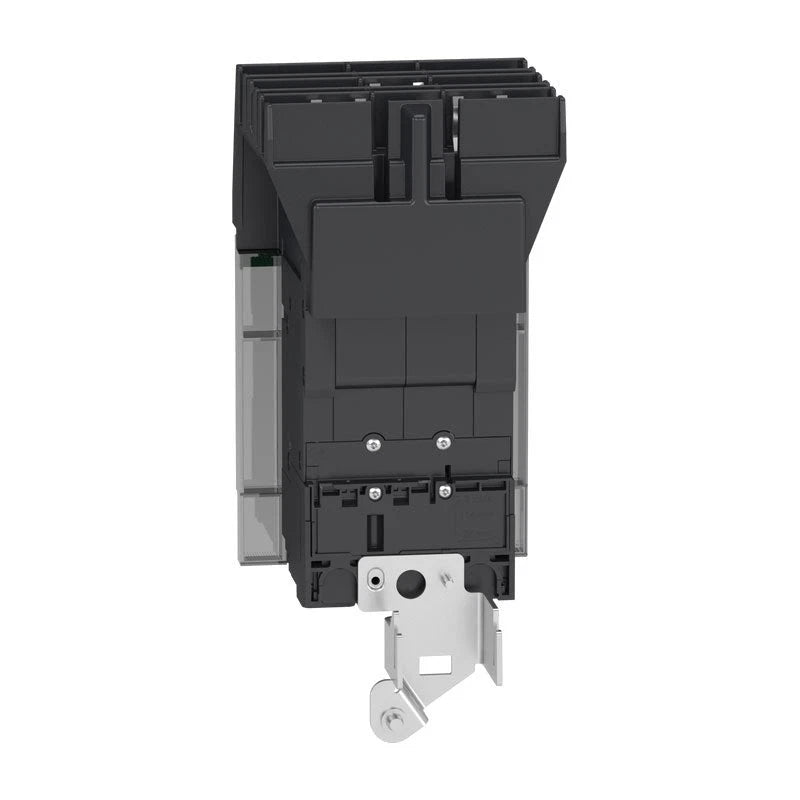

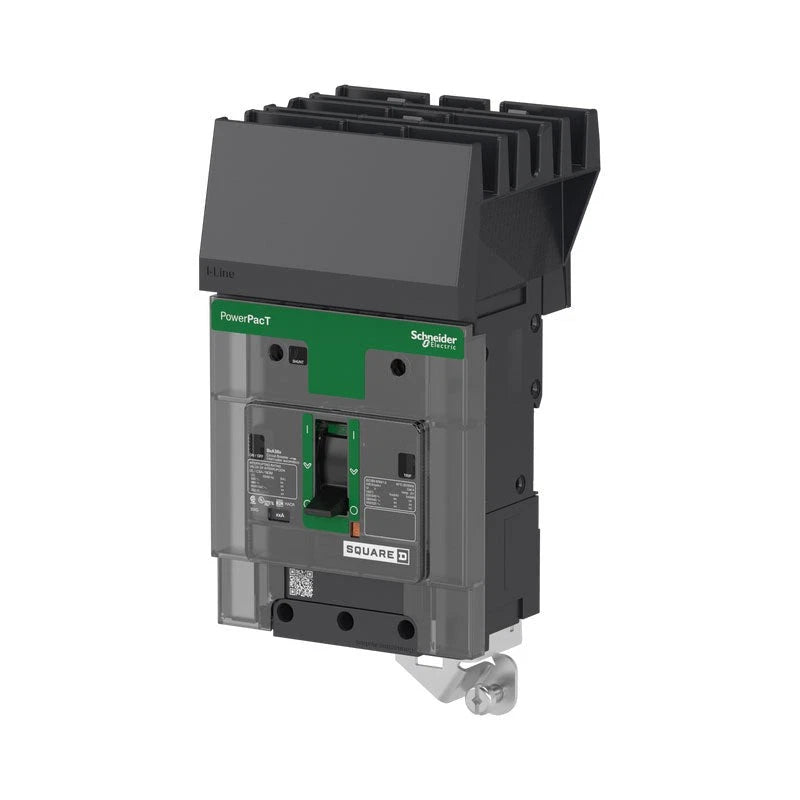

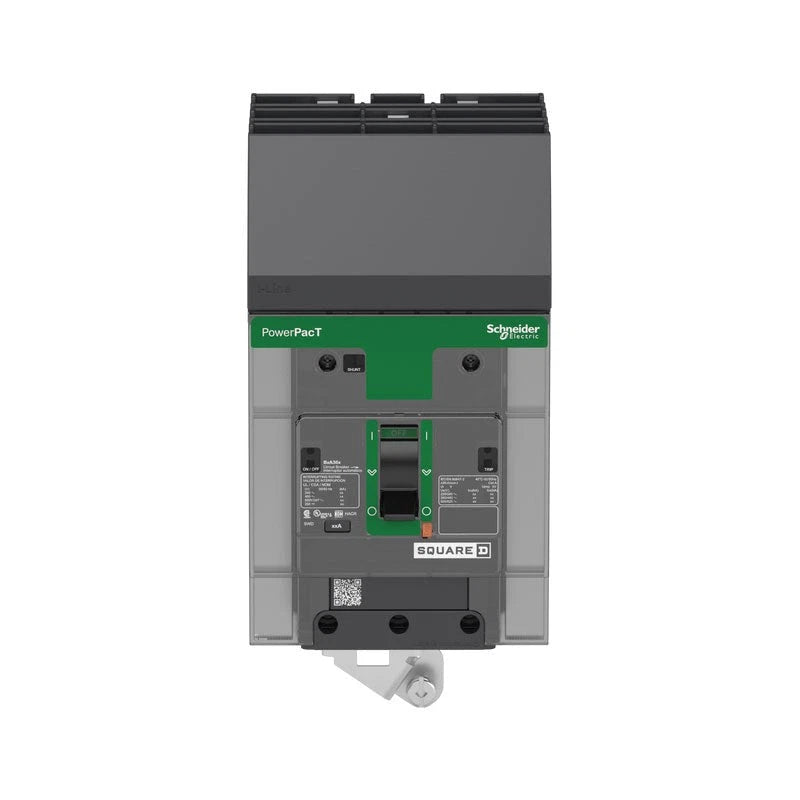

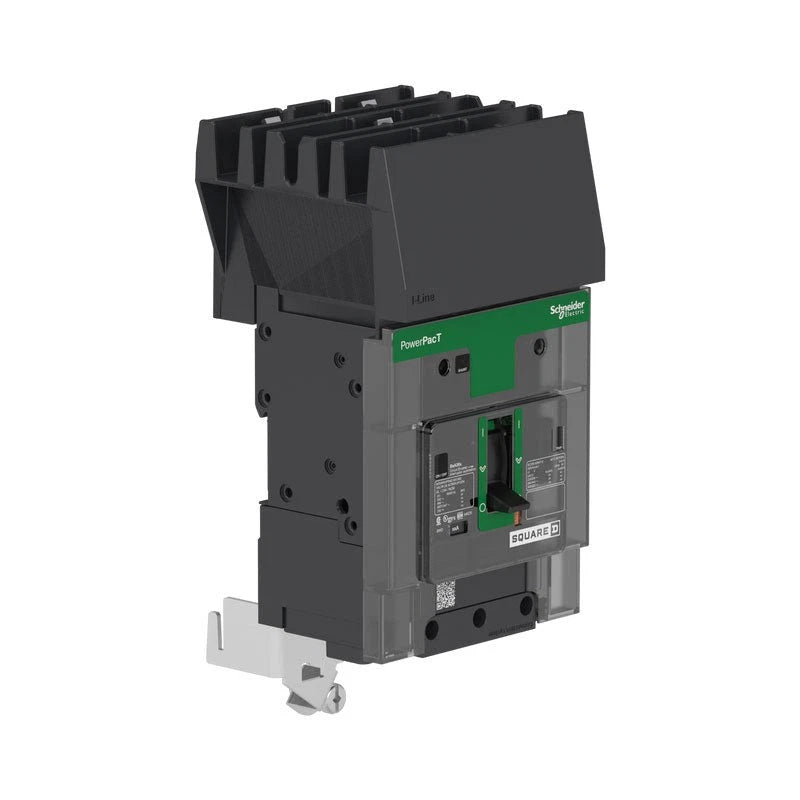

BGA36070 | Schneider Electric PowerPact B 70A 3-Pole Molded Case Circuit Breaker
- Regular price
- $1,229.00
- Sale price
- $1,229.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BGA36070
Description
The Schneider Electric BGA36070 is a molded case circuit breaker designed to provide dependable thermal-magnetic protection for three-phase electrical systems. Rated at 70 amps and 600Y/347 V, it is engineered to protect circuits against overloads and short circuits in commercial and industrial installations. This breaker is commonly used in distribution panels where reliable interruption capacity and durability are required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Protection |
| Part Number | BGA36070 |
| Subcategory | Molded Case Circuit Breaker |
| Series | PowerPact B |
| Breaker Type | Thermal magnetic |
| Current Rating | 70 A |
| Poles | 3 |
| Rated Operational Voltage | 525 V AC 50/60 Hz (UL 489) |
| Rated Insulation Voltage | 800 V (IEC 60947-2) |
| Impulse Withstand Voltage | 8 kV (IEC 60947-2) |
| UL 489 Breaking Capacity | 20 kA at 600Y/347 V AC; 35 kA at 480/277 V AC; 65 kA at 240/208Y/120 V AC; 18 kA at 250 V DC |
| IEC Service Breaking Capacity | Up to 65 kA depending on voltage |
| Mounting Type | I-Line |
| Actuator Type | Toggle |
| Conductor Range | AWG 14 to AWG 2/0 Al/Cu |
| Front Protection Rating | IP40 |
| Operating Temperature | –25 °C to +70 °C |
| Standards Compliance | UL 489, IEC 60947-2, CSA, NEMA AB1 |
| Weight | 1.315 kg |
Information About BGA36070
The BGA36070 is part of the Schneider Electric PowerPact B series, which is known for compact molded case circuit breakers with robust performance characteristics. It features a thermal-magnetic trip mechanism housed in a durable molded case designed for long-term industrial use. The breaker is compatible with I-Line mounting systems and supports a wide range of aluminum and copper conductors. Its design complies with multiple international standards, making it suitable for use in industrial power distribution, machinery protection, and facility electrical systems.
Key Features:
- Molded Case Circuit Breaker: Provides thermal and magnetic protection against overloads and short circuits.
- PowerPact B Series: Compact breaker design suitable for commercial and industrial power distribution.
- 70 Amp Current Rating: Supports medium-load circuit protection requirements.
- Three-Pole Configuration: Designed for three-phase electrical systems.
- High Interrupting Capacity: Rated up to 65 kA depending on system voltage.
- I-Line Mounting: Enables fast and secure installation in compatible panelboards.
- Wide Standards Compliance: Certified to UL, IEC, CSA, and other global standards.
The BGA36070 delivers the reliability and precision required for industrial and commercial circuit protection applications.
