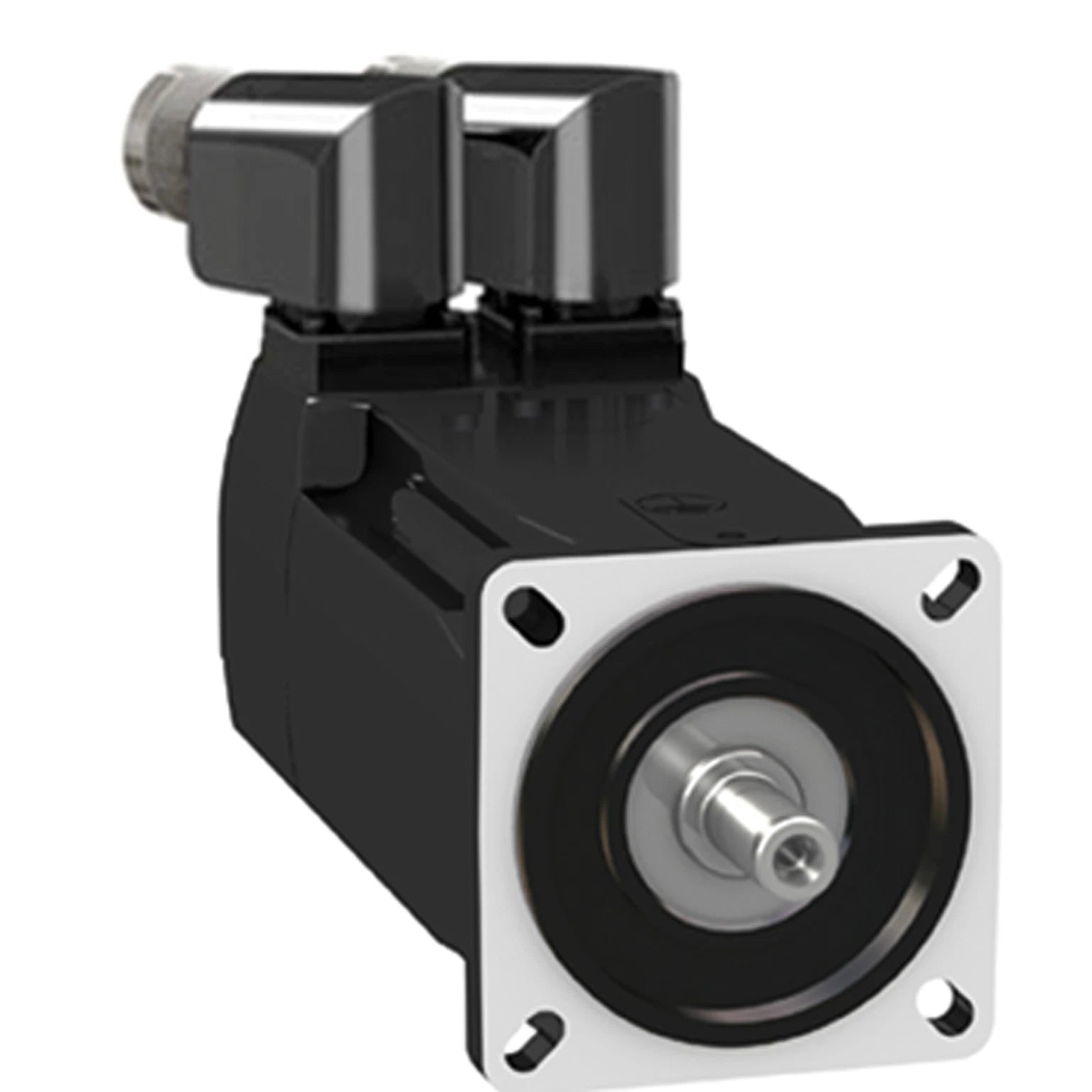

BMH0702P16F2A | Schneider Electric BMH Series Servo Motor 480V 3000RPM With Brake
- Regular price
- $7,599.00
- Sale price
- $7,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BMH0702P16F2A
Description
The Schneider Electric BMH0702P16F2A is a BMH Series servo motor engineered for precise motion control in high-performance automation systems. It features a 2-stack design with integrated holding brake, SinCos single-turn feedback, and flange mounting for Lexium 32 drive compatibility.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Motion Control |
| Part Number | BMH0702P16F2A |
| Subcategory | Servo Motors |
| Series | BMH |
| Range Compatibility | Lexium 32 |
| Rated Supply Voltage | 480 V |
| Phase | Three Phase |
| Maximum Speed | 3000 rpm |
| Number of Motor Stacks | 2 |
| Continuous Stall Current | 2.94 A |
| Maximum Current (Irms) | 9.65 A |
| Maximum Permanent Current | 9.68 A |
| Feedback Type | Single-Turn SinCos Hiperface |
| Holding Brake | Yes |
| Holding Torque | 3.0 N·m |
| Shaft Type | Keyed |
| Shaft Diameter | 11 mm |
| Shaft Length | 23 mm |
| Motor Flange Size | 70 mm |
| Torque Constant | 0.84 N·m/A |
| Back EMF Constant | 54.08 V/krpm |
| Rotor Inertia | 1.24 kg·cm² |
| Stator Resistance | 3.8 Ω |
| Stator Inductance | 5.89 mH |
| Cooling Method | Natural Convection |
| Mounting Type | Flange Mount |
| Weight | 7.3 lbs |
Information About BMH0702P16F2A
The BMH0702P16F2A is part of the Schneider Electric BMH servo motor family, developed for precise and dynamic motion control in industrial automation systems. This motor is optimized for use with Lexium 32 servo drives and operates at 480 V three-phase power. It features a 2-stack construction that delivers balanced torque output while maintaining compact dimensions. Integrated SinCos single-turn feedback and a holding brake support accurate positioning, safe stopping, and reliable performance during power-off conditions.
Key Features
- High-Precision Servo Design: Engineered for accurate speed, torque, and position control in demanding motion applications.
- SinCos Single-Turn Feedback: Hiperface encoder technology provides precise position feedback without requiring homing after power loss.
- Integrated Holding Brake: Built-in brake with 3.0 N·m holding torque ensures secure axis holding during stops or power interruptions.
- 480 V Three-Phase Operation: Supports high-voltage servo systems for improved efficiency and reduced current demand.
- 2-Stack Motor Construction: Balances torque output and inertia characteristics for responsive and stable motion profiles.
- Keyed Shaft Configuration: Provides secure mechanical coupling and accurate torque transmission.
- Lexium 32 Compatibility: Designed specifically for seamless integration with Schneider Electric Lexium 32 servo drive platforms.
The BMH0702P16F2A delivers the reliability and precision required for advanced servo-driven motion control systems.
