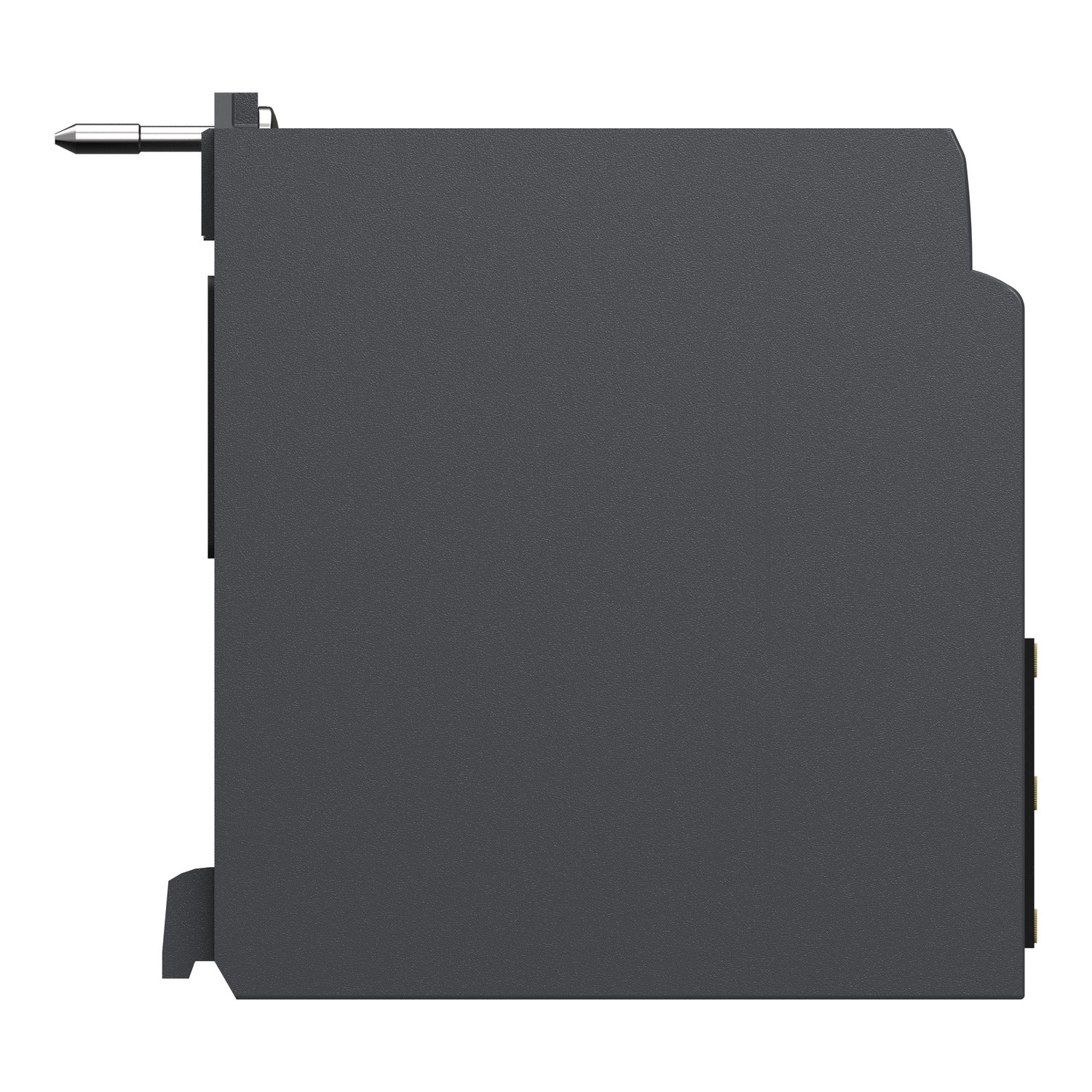

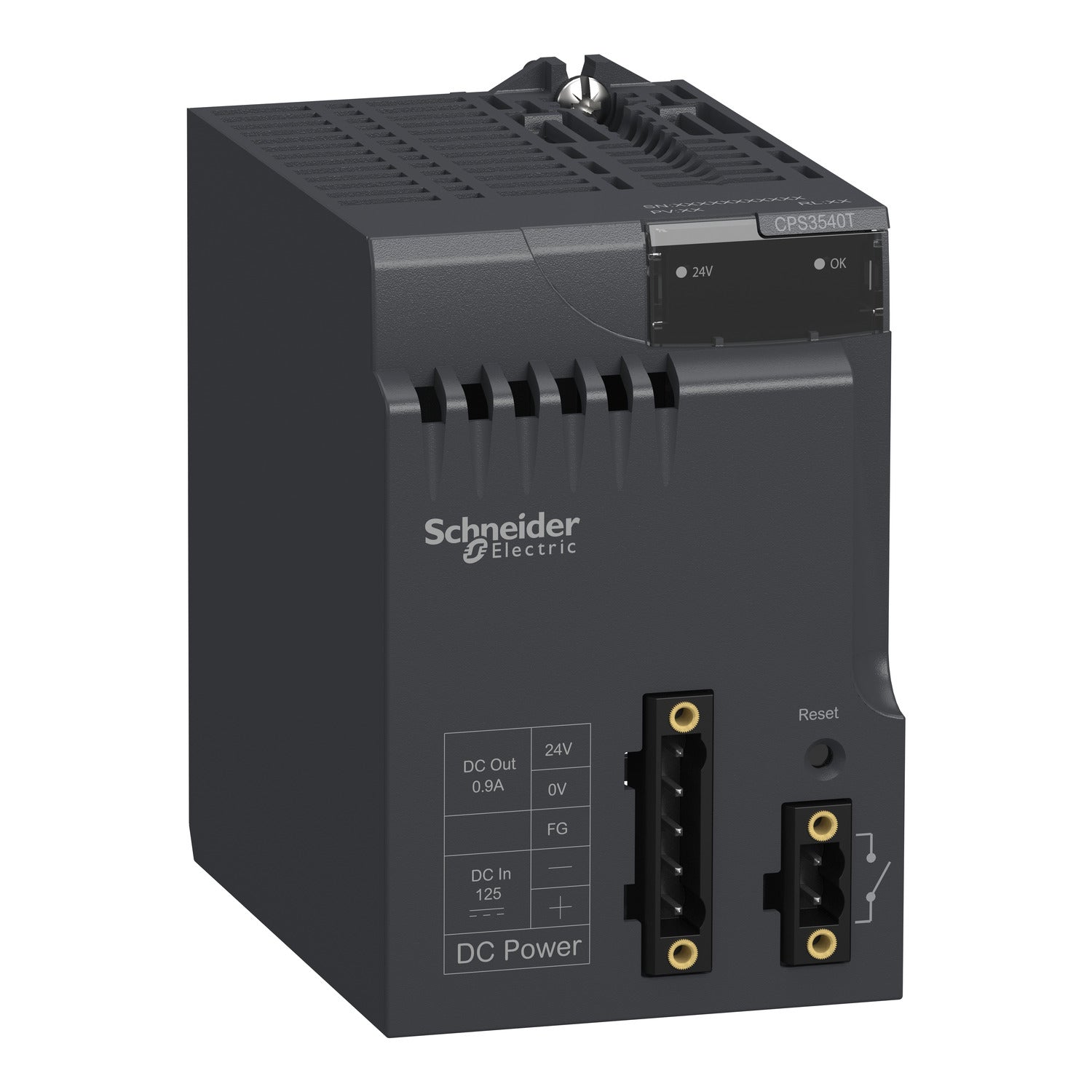

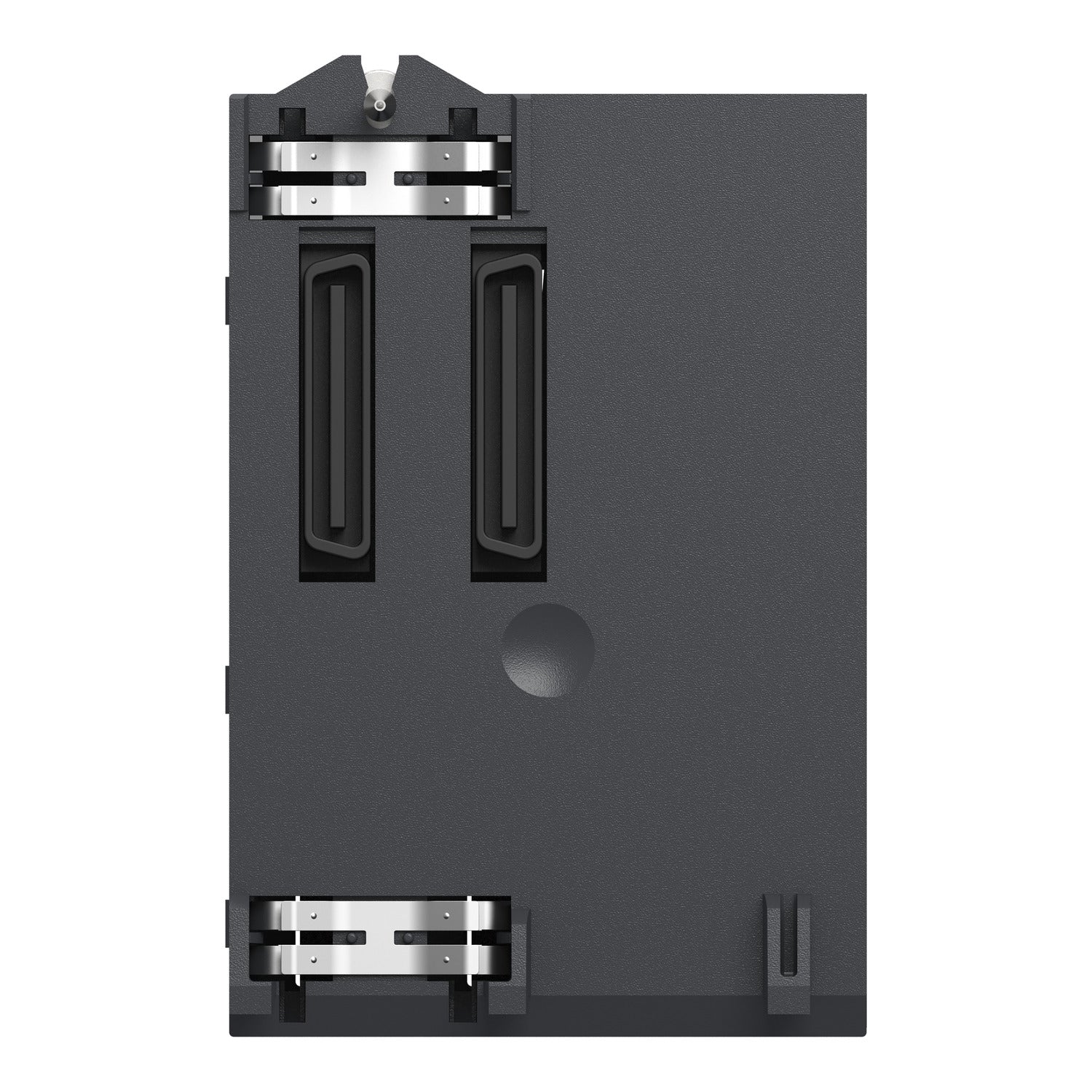

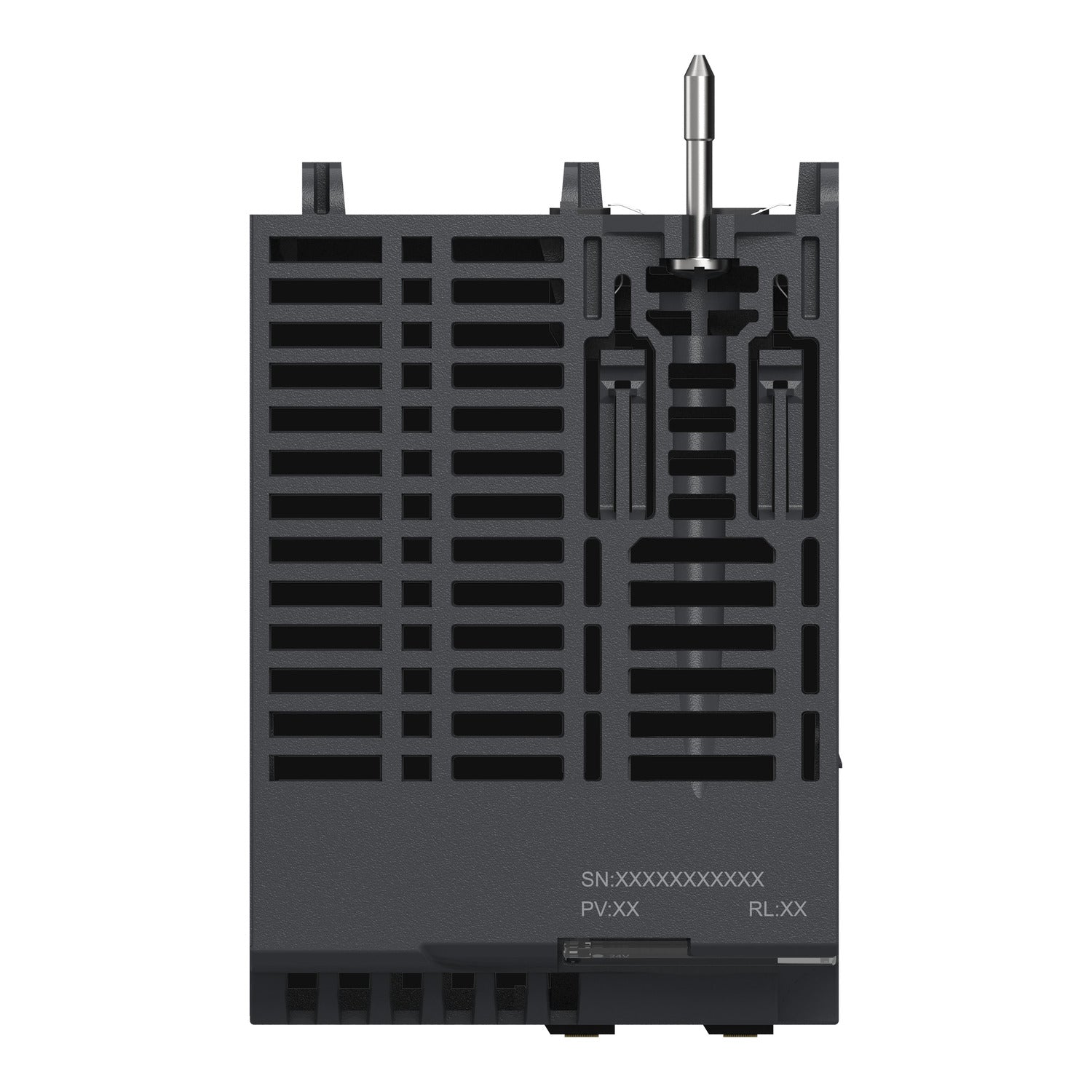

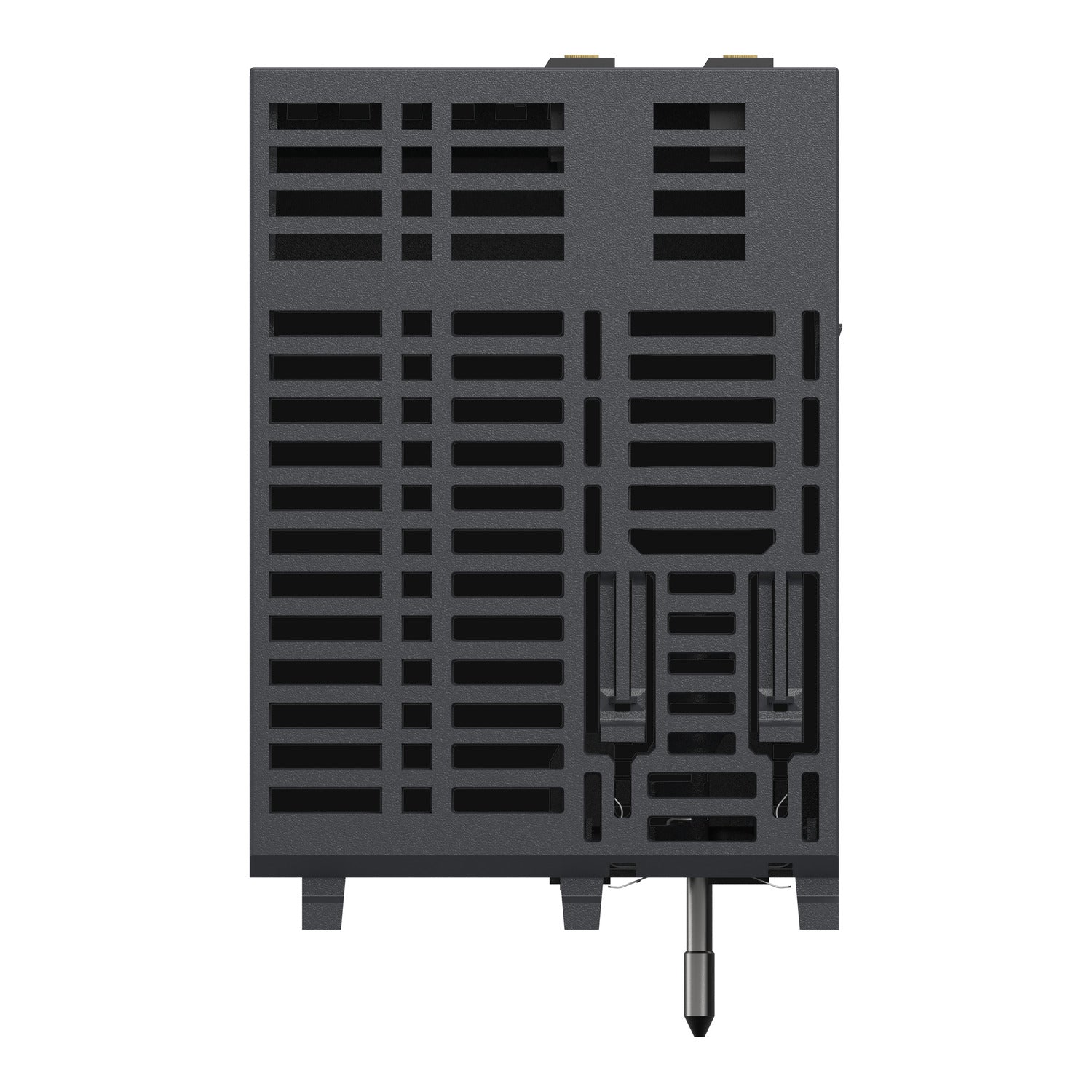

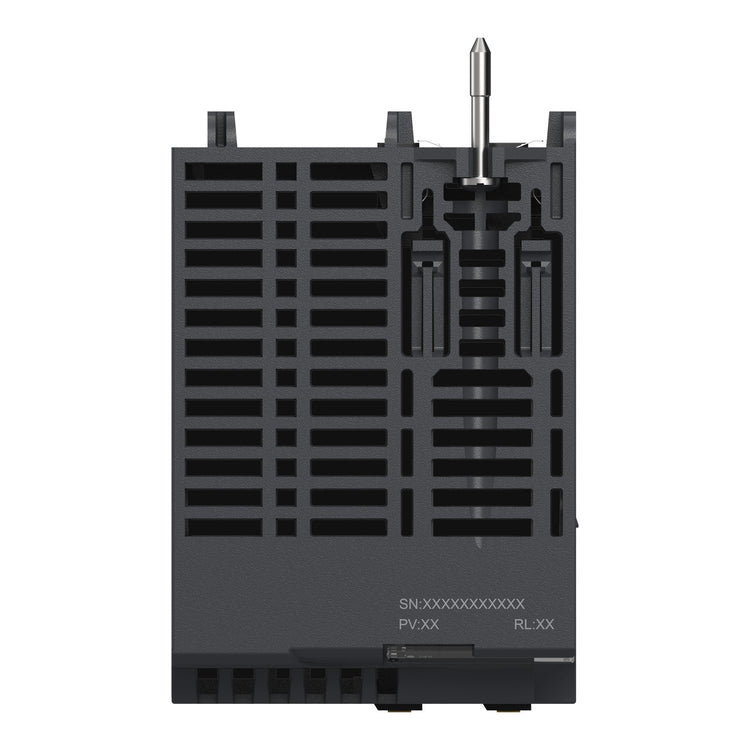

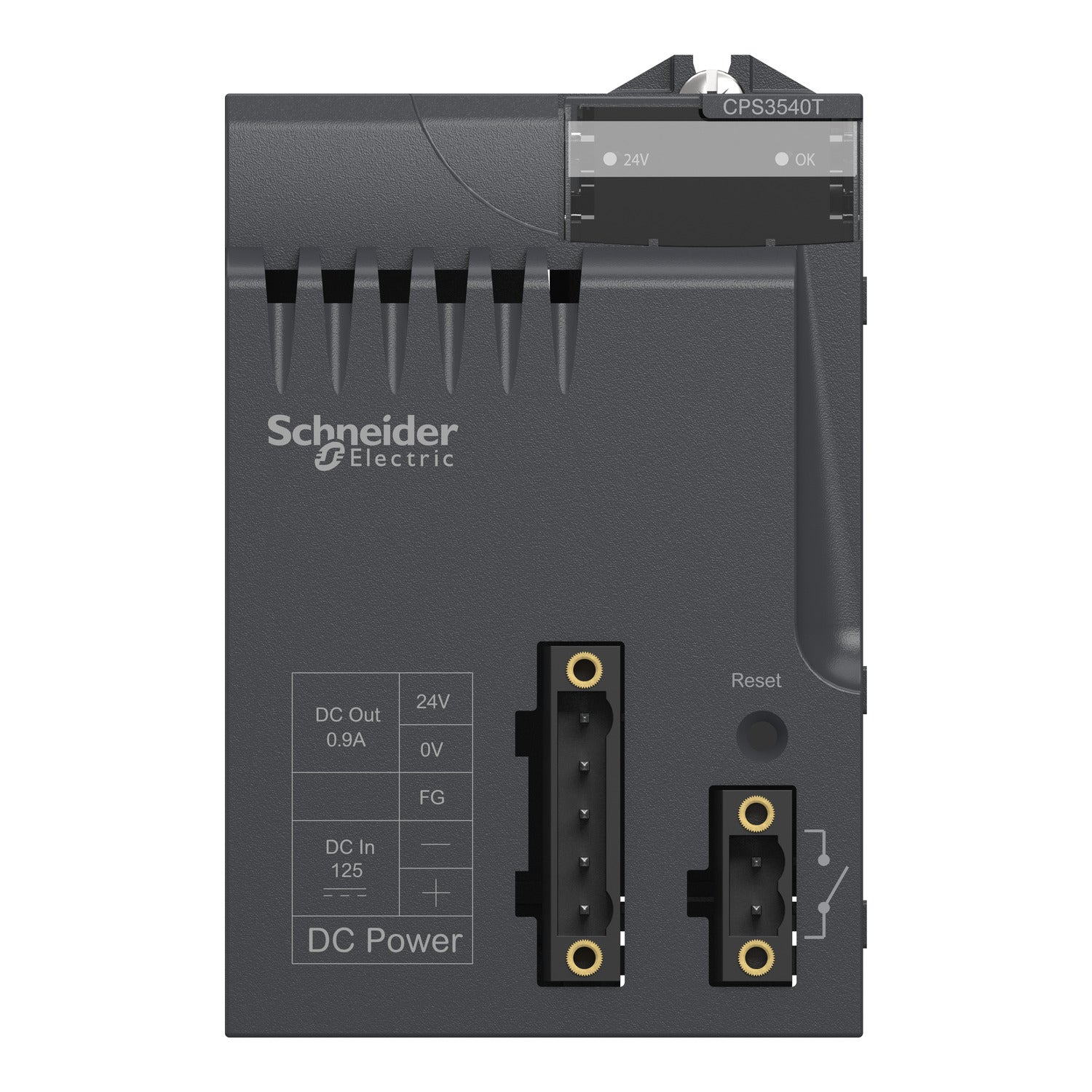

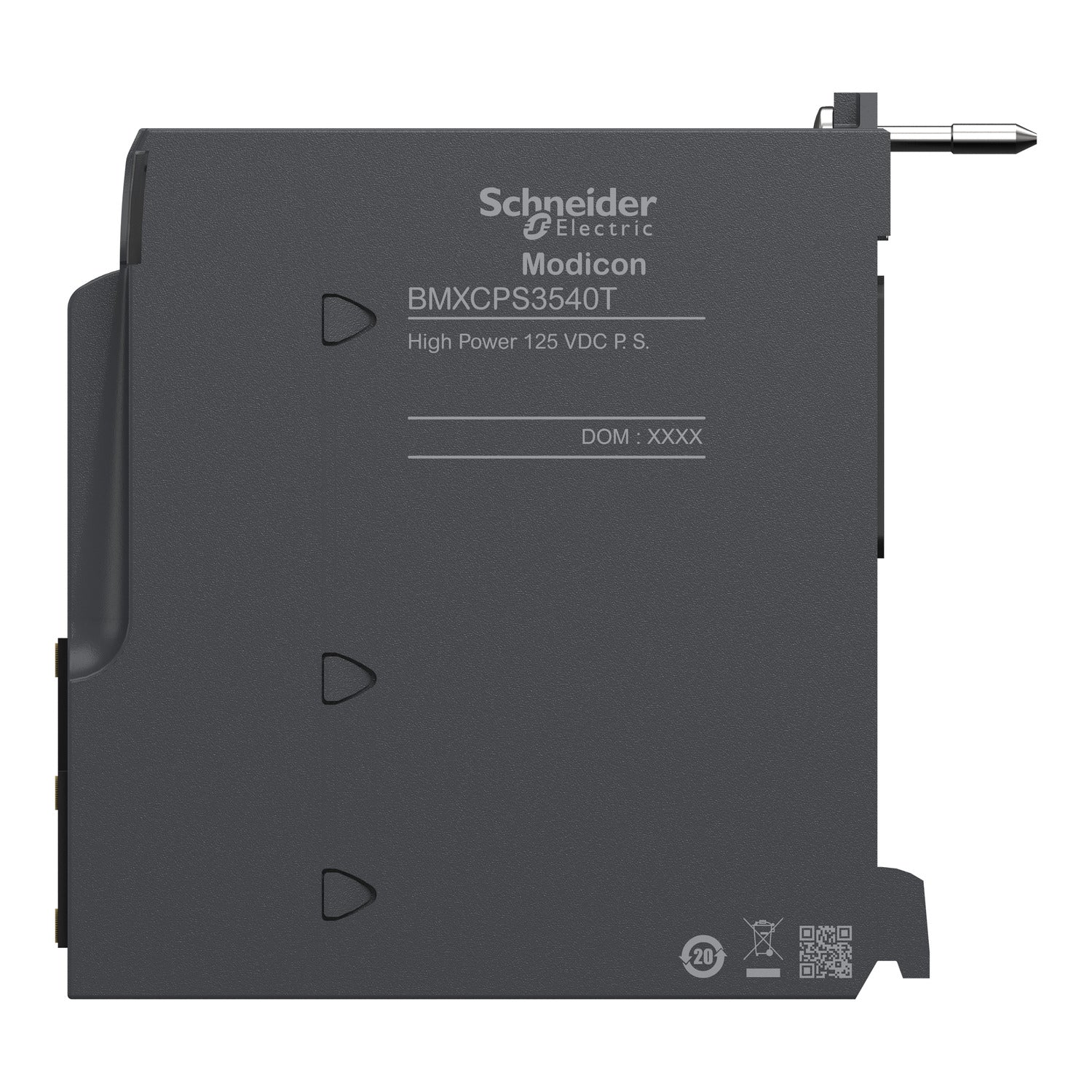

Schneider Electric BMXCPS3540T Modicon X80 Power Supply Module 125VDC Extended Temp
- Regular price
- $2,084.00
- Sale price
- $2,084.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BMXCPS3540T
Description
The Schneider Electric BMXCPS3540T is a power supply module designed for Modicon X80 programmable automation controllers, delivering stable DC power for control system operation. It operates on a 125 V DC input and provides reliable secondary power for both processor and I/O modules. This module is engineered for industrial environments requiring consistent performance and extended temperature operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | BMXCPS3540T |
| Category | PLCs/Machine Control |
| Subcategory | Power Supply Module |
| Product Range | Modicon X80 |
| Product Type | Power Supply Module |
| Input Voltage | 125 V DC |
| Voltage Range | 100–150 V DC |
| Secondary Power Output | 31.2 W at 24 V DC |
| Logic Power Output | 15 W at 3.3 V DC |
| Current Output (3.3V) | 4.5 A |
| Current Output (24V) | 1.3 A |
| Power Dissipation | 8.5 W |
| Input Current | 350 mA at 125 V DC |
| Inrush Current | 30 A |
| MTBF | 4,400,000 hours |
| Protection Features | Overload, overvoltage, short-circuit |
| Electrical Connections | 2-pin alarm relay, 5-pin supply connector |
| Control Type | Reset push-button (cold restart) |
| Protection Rating | IP20 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5–95% non-condensing |
| Certifications | UL, CSA, CE, ATEX, IEC-Ex |
| Weight | 0.79 lbs |
Information About BMXCPS3540T
The BMXCPS3540T is a Schneider Electric power supply module from the Modicon X80 platform, developed for use with M580 and M340 PAC systems. It provides regulated power to system backplanes, supporting both logic and field device requirements with high efficiency and stability. Designed for extended temperature applications, it incorporates advanced protection features including overload, overvoltage, and short-circuit safeguards. Its robust construction, combined with compliance to industrial standards and certifications, makes it suitable for demanding process automation environments.
Key Features:
- Modicon X80 Compatibility: Designed for seamless integration with M580 and M340 PAC systems
- 125 V DC Input Supply: Supports stable operation in industrial DC power systems
- Dual Secondary Power Outputs: Provides 31.2W at 24V DC and logic supply at 3.3V DC
- Extended Temperature Operation: Functions reliably in harsh environments from -25°C to +70°C
- Comprehensive Protection: Includes overload, overvoltage, and short-circuit protection
- High Reliability Design: Offers long MTBF for continuous industrial operation
- Status LED Indicators: Enables easy monitoring of system and sensor voltage conditions
- Industrial Certifications: Compliant with UL, CSA, ATEX, IEC-Ex, and CE standards
The BMXCPS3540T delivers the reliability and precision required for stable power distribution in advanced programmable automation control systems.
