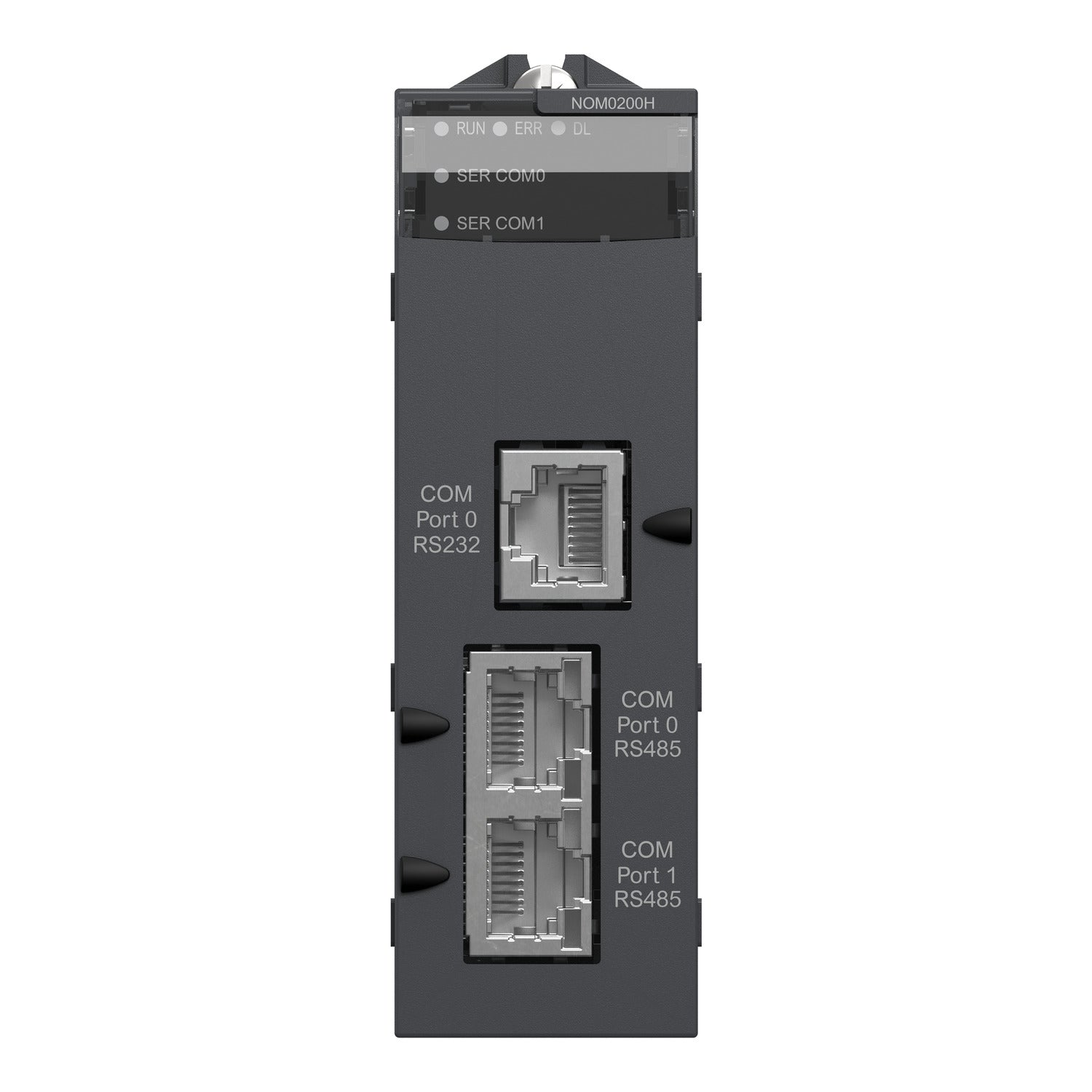

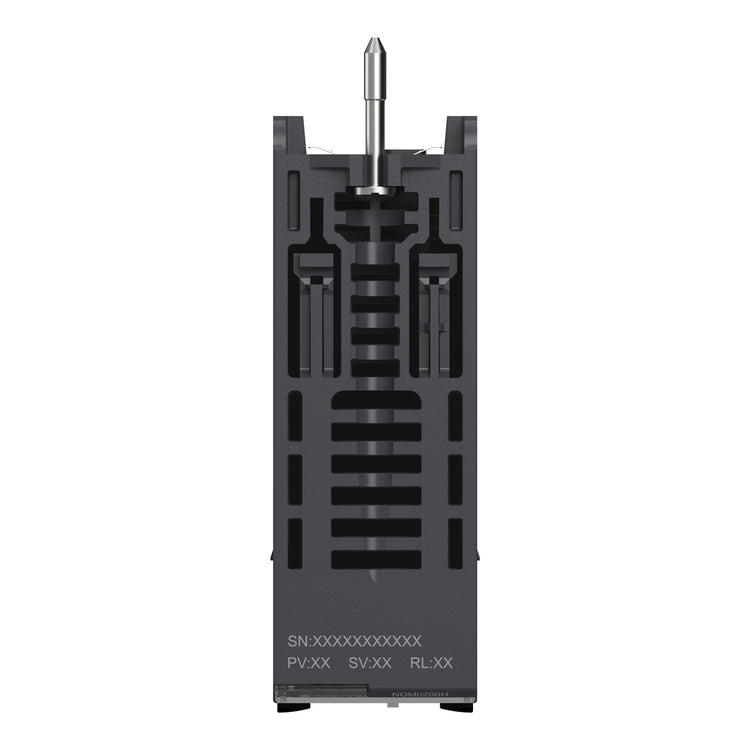

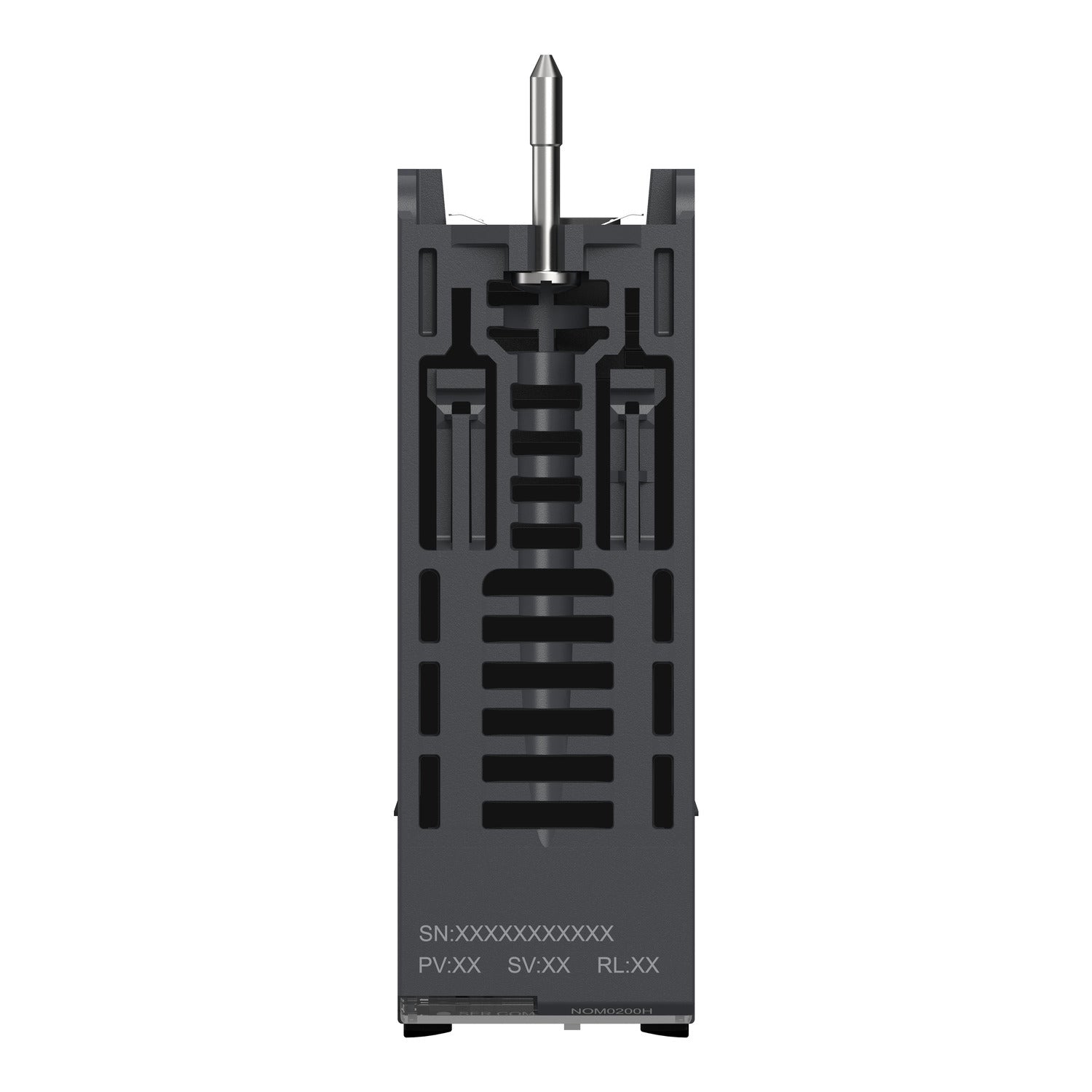

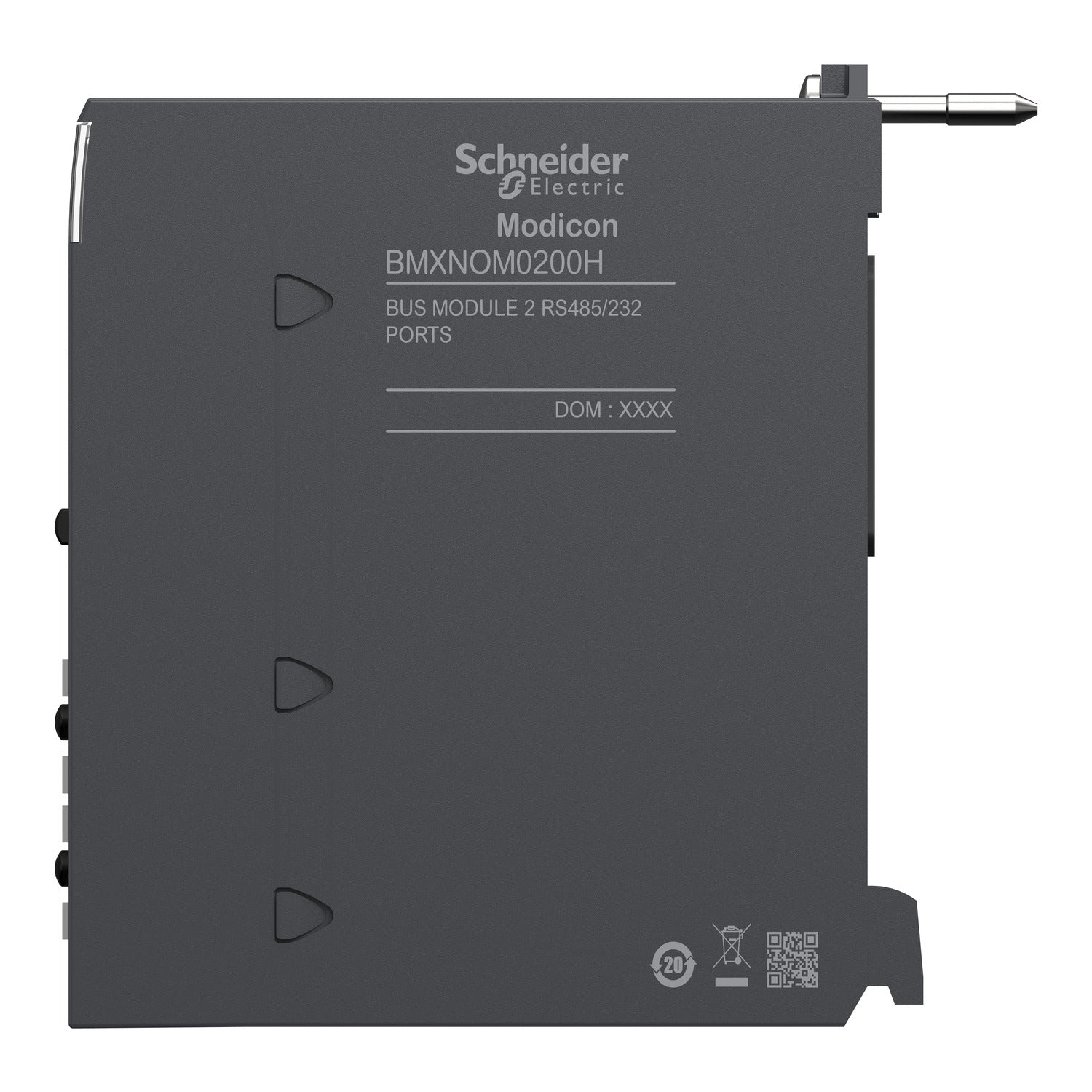

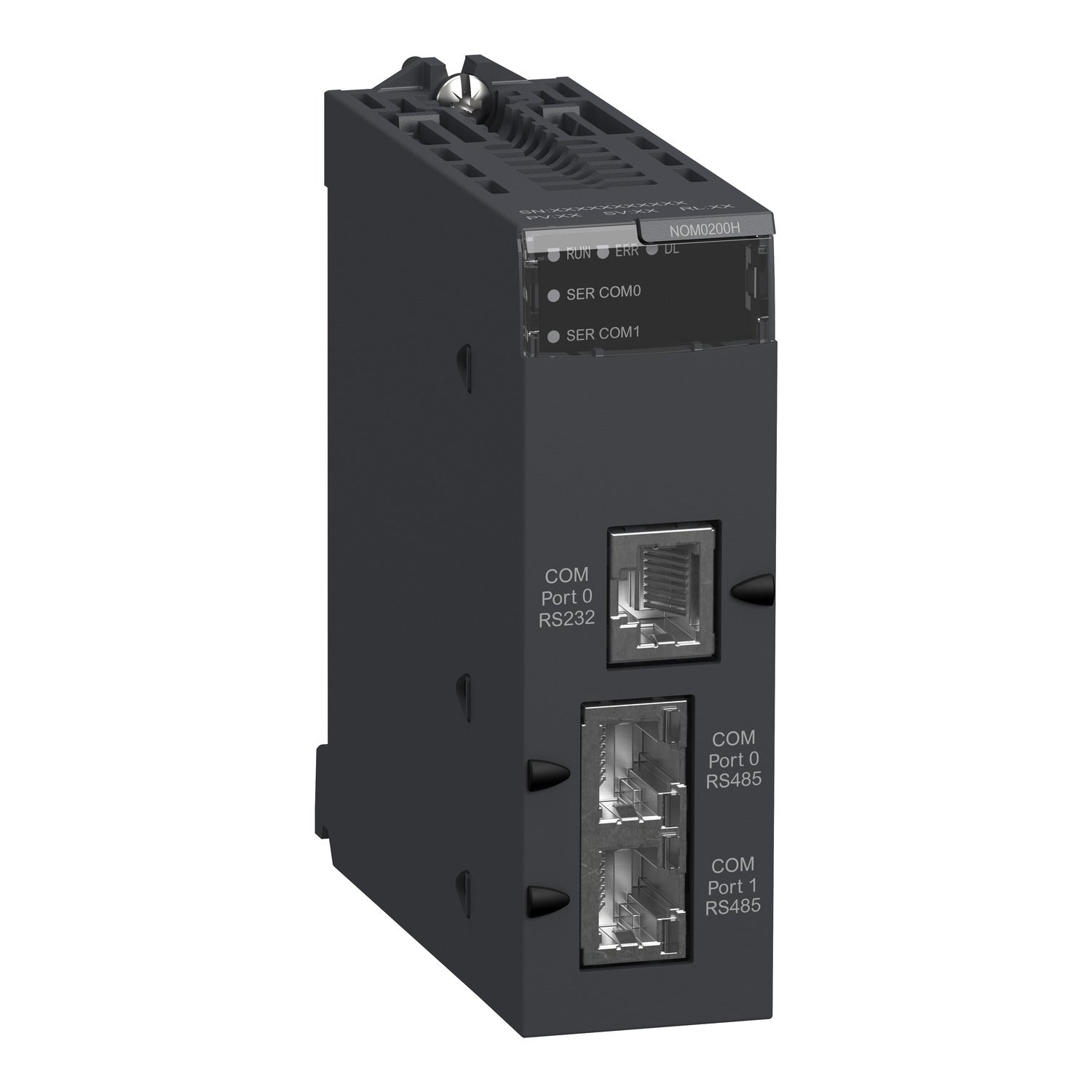

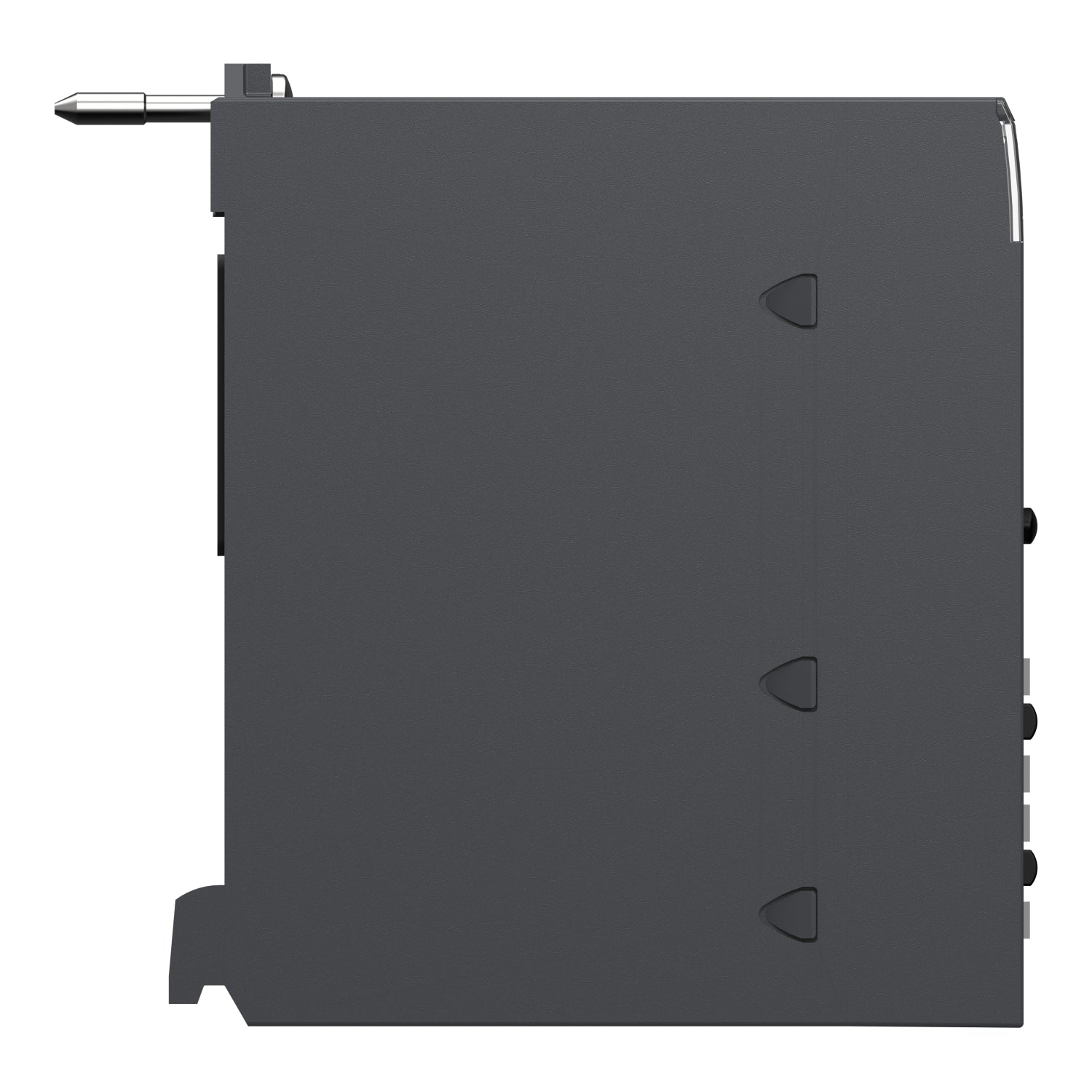

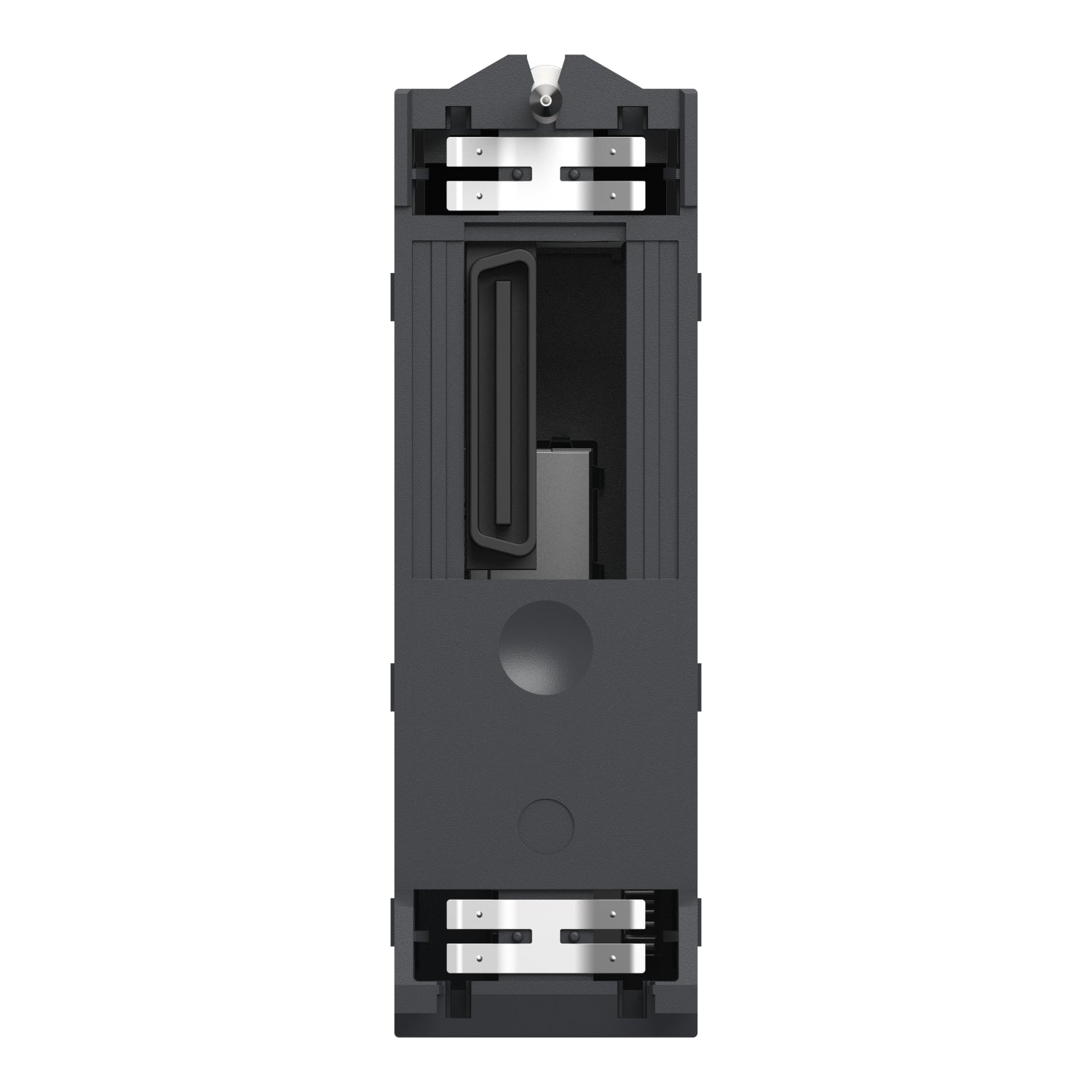

Schneider Electric BMXNOM0200H Modicon X80 Serial Communication Module RS232 RS485
- Regular price
- $825.00
- Sale price
- $825.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BMXNOM0200H
Description
The Schneider Electric BMXNOM0200H is a serial communication module designed for Modicon X80 automation platforms, enabling reliable data exchange between PLC systems and field devices. It features dual RS-232/RS-485 ports supporting Modbus and character mode communication for industrial applications. This module is optimized for operation in harsh environments requiring robust and stable serial connectivity.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | BMXNOM0200H |
| Category | PLCs/Machine Control |
| Subcategory | Communication Module |
| Product Range | Modicon X80 |
| Product Type | Serial Links Module |
| Communication Ports | 2 (RS-232 / RS-485) |
| Protocols Supported | Modbus, Character Mode |
| RS232 Speed | Up to 115.2 kbps |
| RS485 Speed | Up to 57.6 kbps |
| Connector Type | RJ45 |
| Power Supply | Internal via rack |
| Current Consumption | 80 mA at 24 V DC |
| Status Indicators | LED (RUN, ERR, COM activity) |
| Protective Coating | Conformal coating |
| Protection Rating | IP20 |
| Operating Temperature | -25°C to +70°C |
| Humidity Range | 10–95% non-condensing |
| Certifications | CE, UL, CSA, ATEX, IECEx |
| Standards Compliance | IEC 61131-2, UL 61010-2-201 |
| Application | Industrial communication in harsh environments |
| Weight | 0.51 lbs |
Information About BMXNOM0200H
The BMXNOM0200H is a Schneider Electric serial links module from the Modicon X80 range, developed for integration with M340 and M580 programmable automation controllers. It provides two communication ports supporting RS-232 and RS-485 protocols, allowing flexible connectivity with a wide range of industrial devices. Designed with conformal coating and ruggedized construction, it operates reliably in chemically aggressive and severe environments. The module uses internal rack power and includes diagnostic LEDs for monitoring communication activity and system status.
Key Features:
- Modicon X80 Platform Compatibility: Designed for M340 and M580 PAC systems
- Dual Serial Ports: Supports both RS-232 and RS-485 communication interfaces
- Modbus & Character Mode Support: Enables flexible communication with industrial devices
- Ruggedized Design: Suitable for harsh environments with conformal coating protection
- Extended Temperature Range: Operates reliably from -25°C to +70°C
- Integrated Diagnostics LEDs: Provides real-time status and communication activity indicators
- Internal Power Supply: Powered directly through the PLC rack for simplified installation
- High Reliability Communication: Ensures stable data exchange in industrial automation systems
The BMXNOM0200H delivers the reliability and precision required for secure and efficient serial communication in industrial automation environments.
