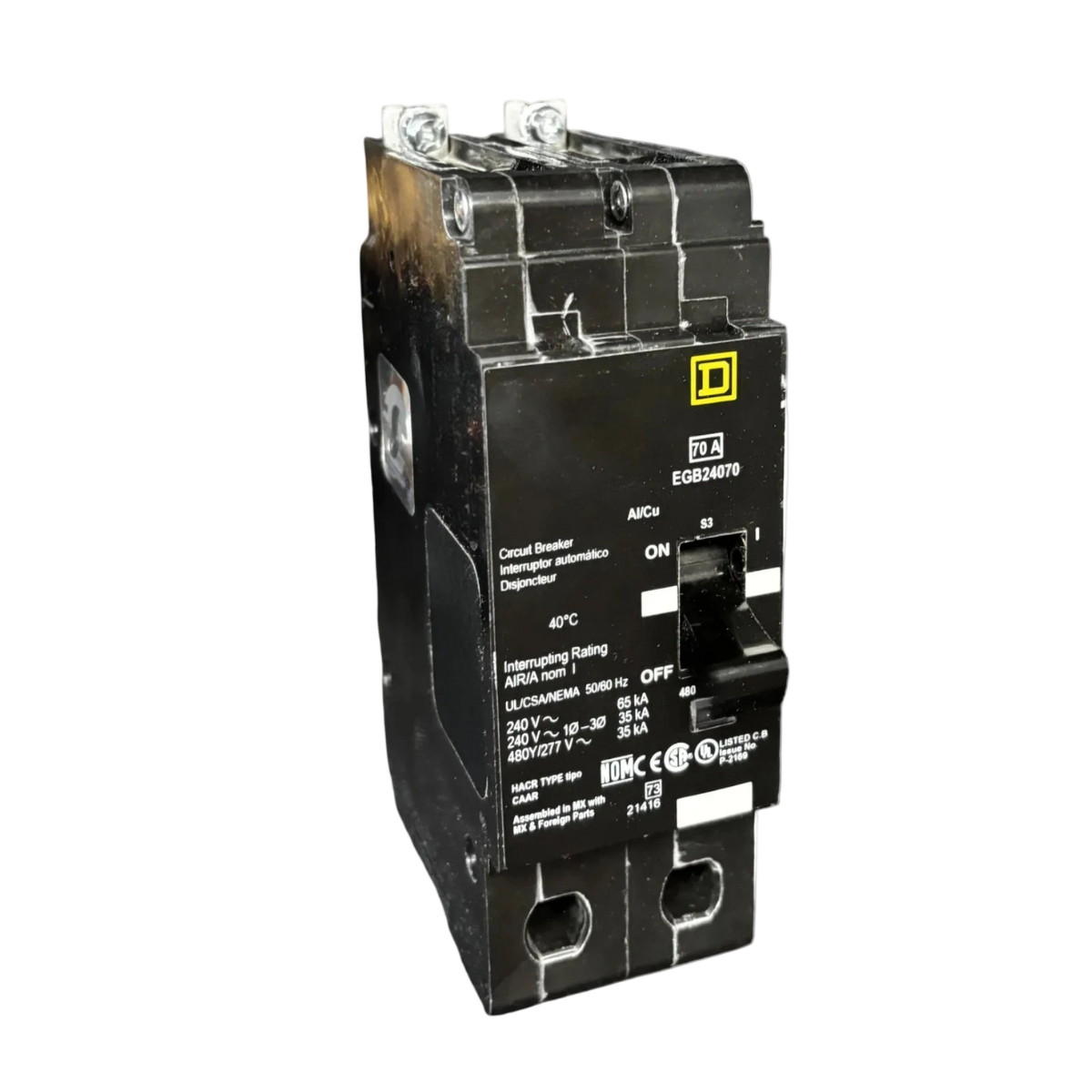

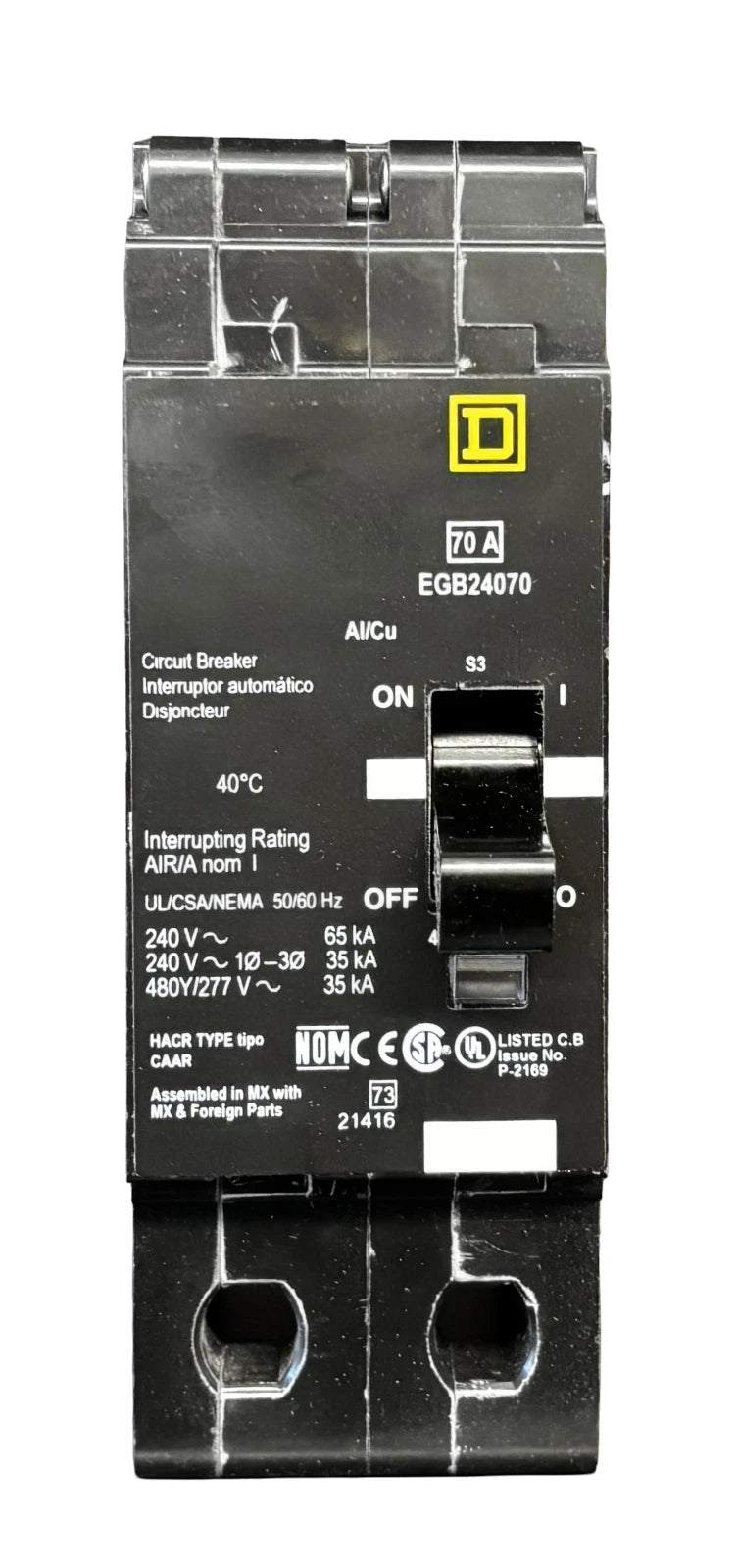

EGB24070 | Schneider Electric E-Frame Miniature Circuit Breaker 70A 480Y/277VAC
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EGB24070
Description
The Schneider Electric EGB24070 is a miniature molded case circuit breaker designed for reliable branch circuit protection in 480Y/277VAC distribution systems. It provides compact E-Frame construction with dependable trip indication and bolt-on mounting for panelboard applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Protection |
| Part Number | EGB24070 |
| Subcategory | Miniature Circuit Breakers |
| Series / Range | EDB / EGB / EJB (125 A Frame) |
| Device Short Name | EGB |
| Frame Type | E-Frame |
| Product Type | Miniature Circuit Breaker |
| Amperage Rating | 70 A |
| Voltage Rating | 480Y / 277 VAC |
| Number of Poles | 2 |
| Number of Spaces | 2 |
| Mounting Type | Bolt-On |
| Protection Type | Thermal Magnetic |
| Trip Unit Rating | 1800 A |
| Holding Current | 630 A |
| Breaking Capacity Code | G |
| Interrupting Rating | 65 kA @ 480Y/277 VAC |
| Electrical Connection | Aluminum Lugs |
| Local Signaling | Trip Indicator |
| Wire Size / Torque | AWG 14–10 (34.5 lbf·in), AWG 8–2/0 (49.6 lbf·in) |
| Dimensions (H x W x D) | 5.66 x 1.96 x 4.05 in |
| Weight | 3 lbs |
Information About EGB24070
The EGB24070 is part of the Schneider Electric E-Frame miniature circuit breaker family, designed for high-density panelboard installations where space efficiency and fault protection are critical. This breaker supports a rated current of 70 amps at 480Y/277VAC and provides high interrupting performance for systems with elevated fault levels. It incorporates a thermal magnetic trip unit to manage both overload and short-circuit conditions with predictable response characteristics. Bolt-on mounting and aluminum lug connections ensure secure installation and reliable electrical continuity in commercial and industrial distribution equipment.
Key Features
- High-Interrupting E-Frame Design: Engineered to safely interrupt fault currents up to 65 kA at 480Y/277 VAC, supporting use in power systems with high available short-circuit current.
- Thermal Magnetic Trip Unit: Combines inverse-time thermal protection for sustained overload conditions with instantaneous magnetic tripping to rapidly clear short circuits.
- Compact Miniature Construction: Space-efficient E-Frame form factor allows higher circuit density in panelboards without compromising protection performance.
- Bolt-On Mounting Configuration: Provides a secure mechanical and electrical connection that reduces installation time and ensures consistent contact pressure.
- Visible Trip Indicator: Integrated local trip indication simplifies fault identification and speeds maintenance and troubleshooting activities.
- Robust Conductor Termination: Aluminum lug terminals support a wide conductor range with clearly defined torque values to maintain reliable connections over time.
- Panelboard Application Ready: Designed specifically for use in Schneider Electric panelboards requiring miniature breakers with high fault withstand capability.
The EGB24070 delivers the reliability and precision required for branch circuit protection in demanding commercial and industrial power distribution systems.
