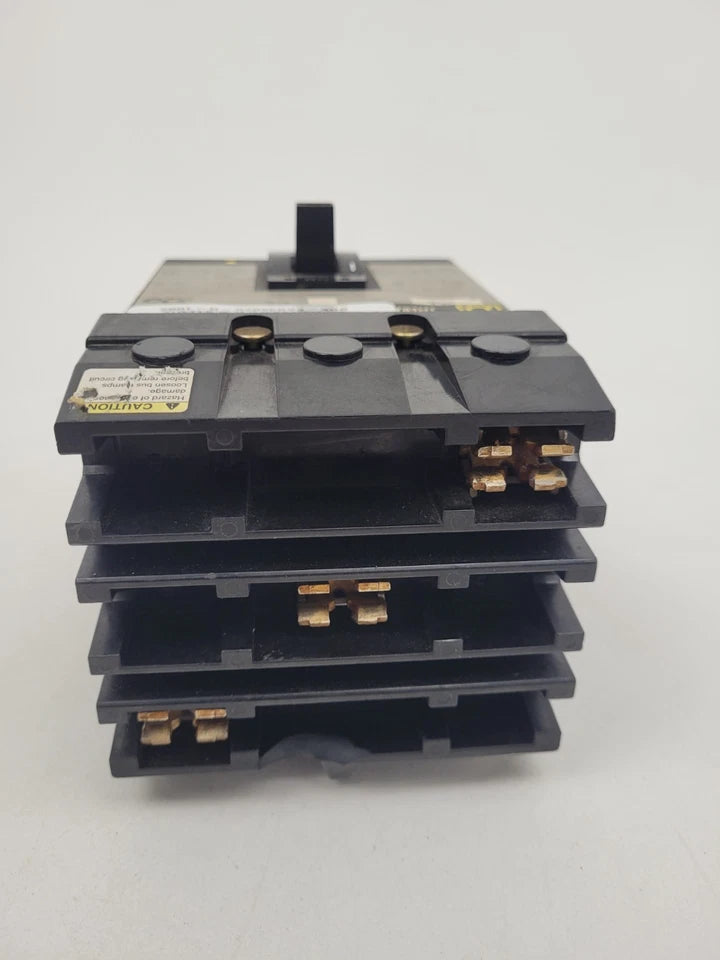

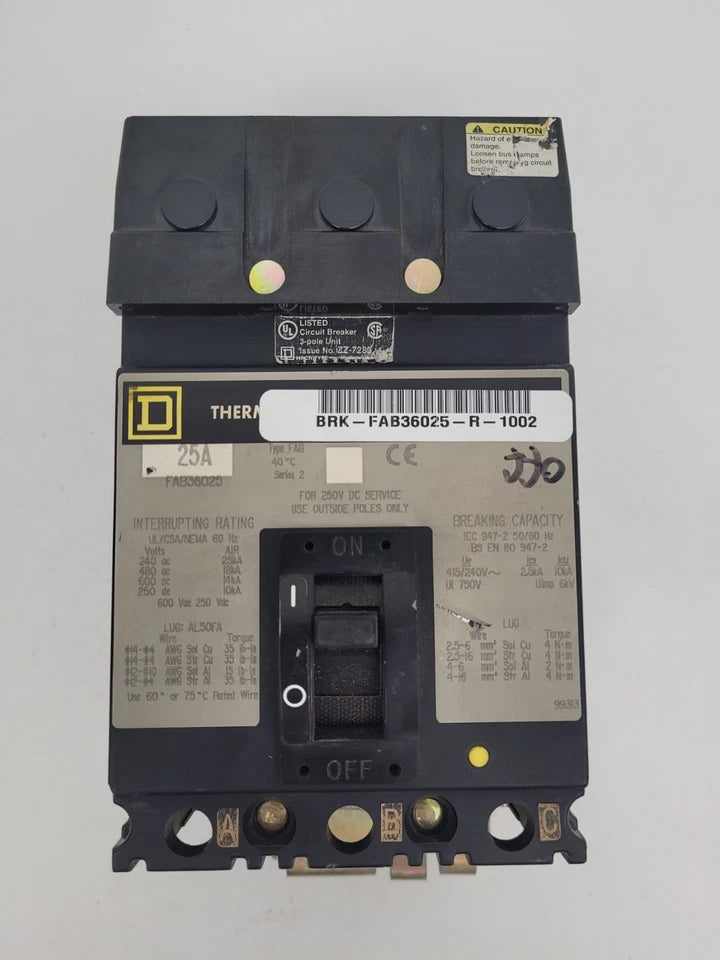

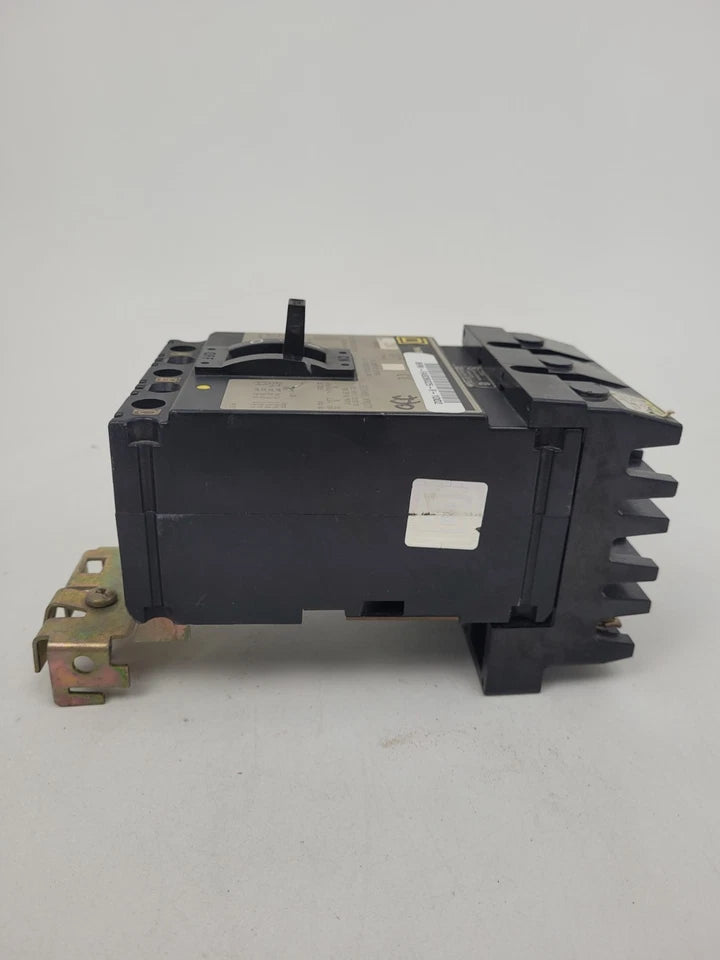

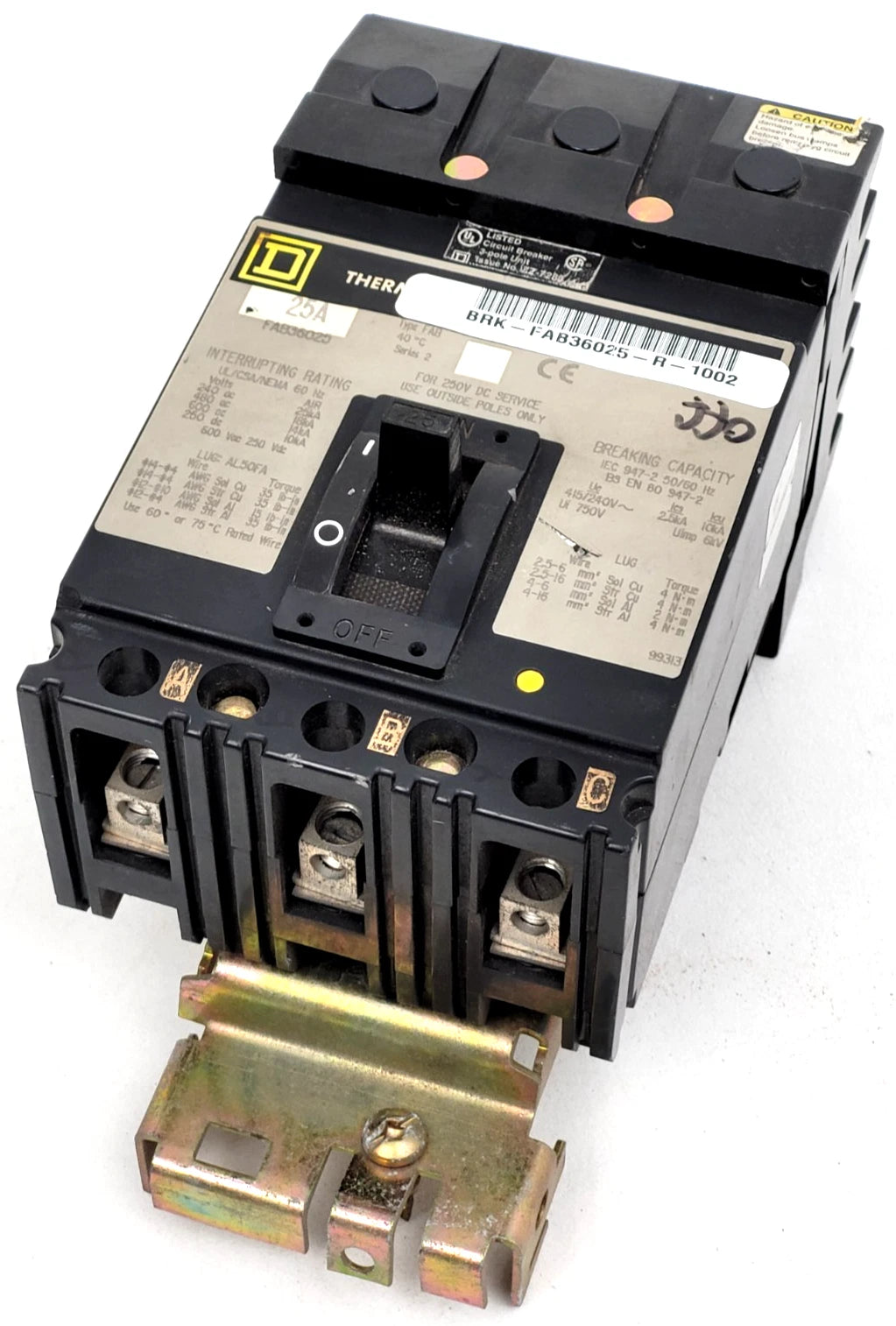

FHB36025 | Schneider Electric I-Line 25A 3-Pole High-Interrupting Molded Case Circuit Breaker
- Regular price
- $3,334.00
- Sale price
- $3,334.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FHB36025
Description
The Schneider Electric FHB36025 is a molded case circuit breaker designed to provide high-interrupting overcurrent protection in three-phase electrical distribution systems. It features a 25 amp trip rating within a 100 amp frame and is rated for operation up to 600 VAC. This I-Line bolt-on breaker is commonly used in panelboard applications requiring secure installation and reliable fault protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | FHB36025 |
| Subcategory | Molded Case Circuit Breaker |
| Breaker Type | Molded case, high interrupting |
| Frame Rating | 100 A |
| Trip Rating | 25 A |
| Poles | 3 |
| Rated Voltage | 600 VAC |
| Interrupting Capacity | High interrupting |
| Mounting Style | I-Line, bolt-on |
| Application Use | Power distribution and circuit protection |
| Manufacturer Status | Discontinued by manufacturer |
| Weight | 6.00 lbs |
Information About FHB36025
The FHB36025 is part of the Schneider Electric FHB series, which includes high-interrupting molded case circuit breakers engineered for industrial and commercial power distribution. It is built with a rugged molded housing and a thermal-magnetic trip mechanism to ensure dependable protection against overloads and short-circuit conditions. The breaker is compatible with I-Line panelboard systems and uses a bolt-on mounting design for fast and secure installation. Although discontinued by the manufacturer, it remains suitable for maintenance, replacement, and support of existing electrical systems.
Key Features:
- Molded Case Circuit Breaker: Provides reliable protection against overload and short-circuit faults.
- High Interrupting Capacity: Designed to safely interrupt high fault currents.
- 25 Amp Trip Rating: Suitable for low-to-moderate current circuit protection.
- 100 Amp Frame Size: Fits systems designed around this breaker frame.
- Three-Pole Configuration: Supports three-phase electrical distribution systems.
- I-Line Bolt-On Design: Enables quick and secure installation in compatible panelboards.
- 600 VAC Rating: Suitable for high-voltage AC power distribution.
The FHB36025 delivers the reliability and precision required for high-interrupting circuit protection in industrial and commercial power systems.
