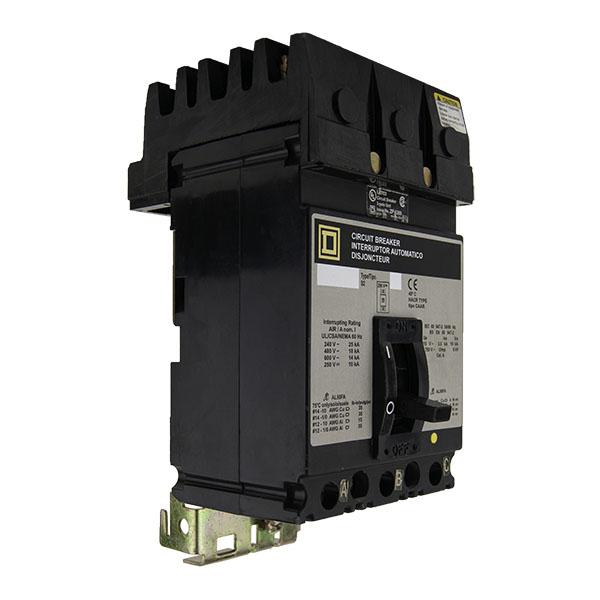

FHB36090 | Schneider Electric I-Line 90A 3-Pole High-Interrupting Molded Case Circuit Breaker
- Regular price
- $2,329.00
- Sale price
- $2,329.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FHB36090
Description
The Schneider Electric FHB36090 is a molded case circuit breaker designed to provide high-interrupting overcurrent protection in industrial and commercial electrical distribution systems. It features a 90 amp trip rating within a 100 amp frame and is rated for operation up to 600 VAC. This three-pole, I-Line bolt-on breaker is commonly used in panelboards where dependable fault protection and quick installation are required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | FHB36090 |
| Subcategory | Molded Case Circuit Breaker |
| Breaker Type | Molded case, high interrupting |
| Frame Rating | 100 A |
| Trip Rating | 90 A |
| Poles | 3 |
| Rated Voltage | 600 VAC |
| Interrupting Capacity | High interrupting |
| Mounting Style | I-Line, bolt-on |
| Application Use | Power distribution and circuit protection |
| Manufacturer Status | Discontinued by manufacturer |
| Weight | 7.00 lbs |
Information About FHB36090
The FHB36090 is part of the Schneider Electric FHB series, which includes high-interrupting molded case circuit breakers engineered for demanding power distribution applications. It is built with a rugged molded housing and a thermal-magnetic trip mechanism to ensure accurate response to overloads and short-circuit conditions. The breaker is compatible with I-Line panelboard systems and utilizes a bolt-on mounting style for secure installation. Although discontinued by the manufacturer, it remains suitable for maintenance, replacement, and support of existing electrical installations.
Key Features:
- Molded Case Circuit Breaker: Provides reliable protection against overload and short-circuit faults.
- High Interrupting Capacity: Designed to safely interrupt high fault currents.
- 90 Amp Trip Rating: Suitable for medium-to-high current circuit protection.
- 100 Amp Frame Size: Fits systems designed for this breaker frame rating.
- Three-Pole Configuration: Supports three-phase electrical distribution.
- I-Line Design: Enables fast, secure bolt-on installation in compatible panelboards.
- 600 VAC Rating: Suitable for high-voltage AC power applications.
The FHB36090 delivers the reliability and precision required for high-interrupting circuit protection in industrial and commercial power systems.
