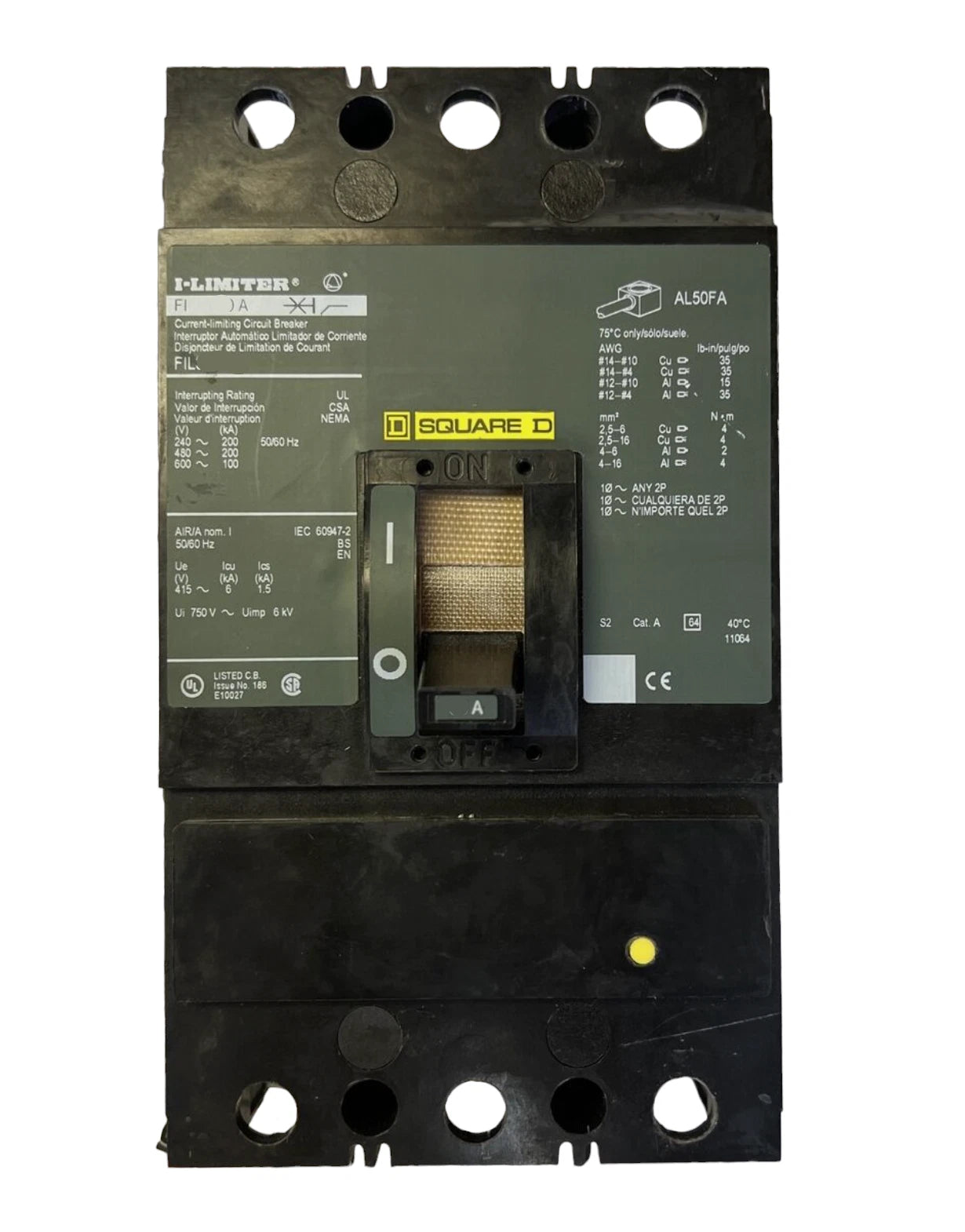

FIL36060 | Schneider Electric Three Pole Thermal Magnetic Molded Case Circuit Breaker 60A 600VAC
- Regular price
- $2,695.00
- Sale price
- $2,695.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FIL36060
Description
The Schneider Electric FIL36060 is a three pole molded case circuit breaker designed for high-performance protection in low-voltage power distribution systems. It provides thermal magnetic protection with long-time and instantaneous trip functions for controlled operation in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Protection |
| Part Number | FIL36060 |
| Subcategory | Molded Case Circuit Breakers |
| Series | FIL |
| Frame Type | FIL |
| Amperage Rating | 60 A |
| Voltage Rating | 600 VAC |
| Number of Poles | 3 |
| Phase | 3 Phase |
| Interrupting Rating | 200 kAIC @ 480 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Connection Type | Feed-Thru |
| Terminal Connection | Line and Load Side Lugs |
| Weight | 8.999 lbs |
Information About FIL36060
The FIL36060 is part of the Schneider Electric FIL Series, engineered for molded case circuit breaker applications requiring exceptionally high interrupting capacity. This breaker supports three-phase electrical systems with a continuous current rating of 60 amps and a maximum operating voltage of 600 VAC. It incorporates a thermal magnetic trip unit that delivers coordinated overload protection and instantaneous short-circuit interruption. The feed-thru connection design with line and load side lugs allows efficient integration into switchgear and power distribution assemblies where reliability and fault tolerance are critical.
Key Features
- Thermal Magnetic Protection System: Combines a calibrated thermal element for overload protection with an instantaneous magnetic trip to respond rapidly to short-circuit faults.
- Ultra-High Interrupting Capacity: Rated at 200 kAIC at 480 V, supporting safe interruption of extremely high fault currents in heavy-duty power systems.
- Three Pole Configuration: Ensures balanced protection across all phases in three-phase distribution networks.
- Feed-Thru Connection Design: Supports straight-through power flow using line and load side lugs, simplifying wiring layouts in switchgear assemblies.
- FIL Heavy-Duty Frame: Engineered for mechanical strength and thermal stability under high fault and load conditions.
- Long-Time Trip Function: Protects conductors and connected equipment against sustained overcurrent situations.
- Instantaneous Trip Response: Minimizes fault energy and system stress by rapidly clearing short-circuit events.
The FIL36060 delivers the reliability and precision required for protecting critical three-phase power distribution circuits in industrial and utility-grade applications.
