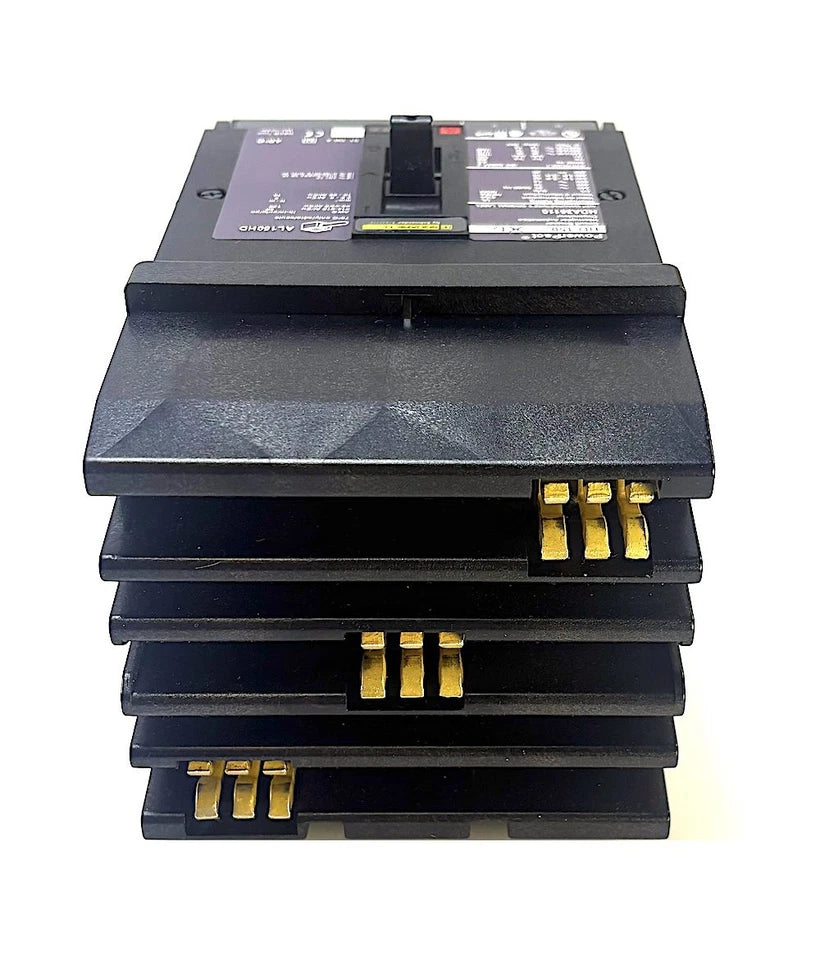

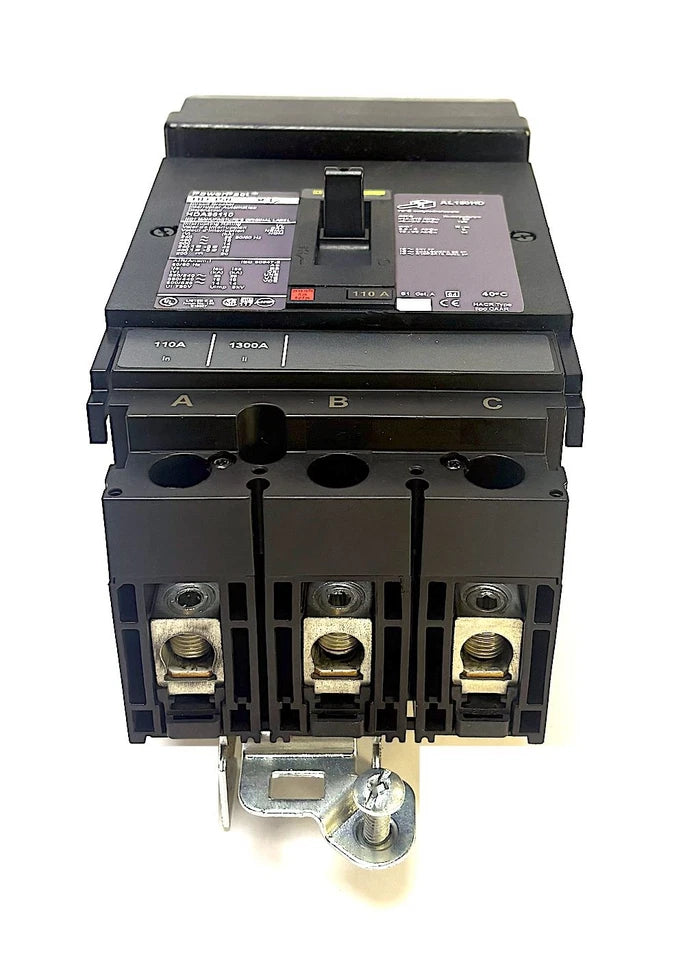

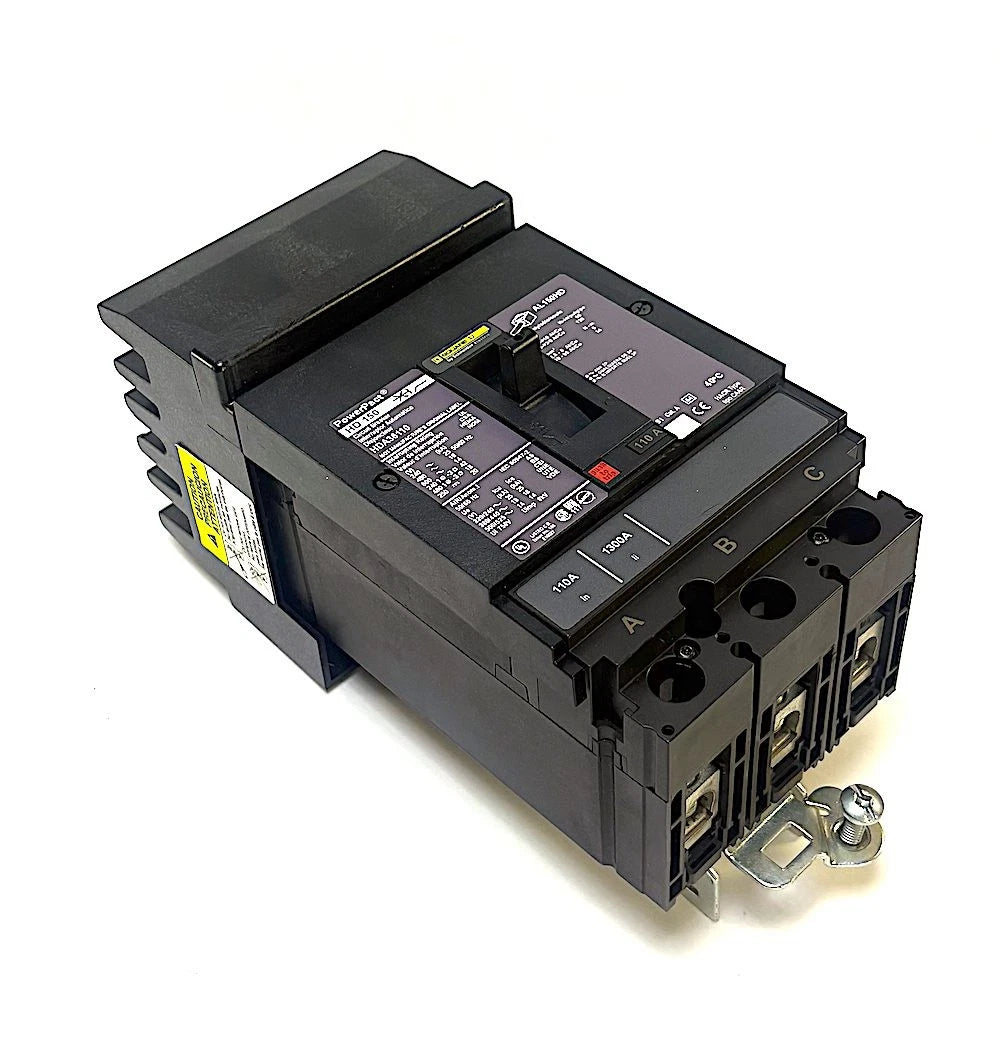

HDA36110 | Schneider Electric Three Pole Thermal Magnetic Molded Case Circuit Breaker 110A 600VAC
- Regular price
- $2,349.00
- Sale price
- $2,349.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HDA36110
Description
The Schneider Electric HDA36110 is a three pole molded case circuit breaker designed for dependable protection of three-phase power distribution systems. It provides thermal magnetic protection with long-time and instantaneous trip functions for controlled operation across multiple voltage levels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Protection |
| Part Number | HDA36110 |
| Subcategory | Molded Case Circuit Breakers |
| Series | HDA |
| Frame Type | HDA |
| Amperage Rating | 110 A |
| Voltage Rating | 600 VAC |
| Number of Poles | 3 |
| Phase | 3 Phase |
| Interrupting Rating @ 240 VAC | 25 kA |
| Interrupting Rating @ 480 VAC | 18 kA |
| Interrupting Rating @ 600 VAC | 14 kA |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Connection Type | I-Line Style Plug-In |
| Terminal Connection | Line and Load Lugs |
| Wire Size | AWG 14 to AWG 3/0 (Al/Cu) |
| Standards / Certifications | CE, UL, CSA, NEMA, NOM, IEC, CCC, RoHS |
| Dimensions (H x W x D) | 6.4 x 4.09 x 3.4 in |
| Weight | 4.9 lbs |
Information About HDA36110
The HDA36110 is part of the Schneider Electric HDA Series, engineered for molded case circuit breaker applications requiring flexible voltage operation and reliable protection. This breaker supports three-phase systems with a continuous current rating of 110 amps and a maximum voltage of 600 VAC. It incorporates a thermal magnetic trip unit that provides coordinated overload protection and instantaneous short-circuit response through long-time and instantaneous trip functions. The I-Line style plug-in mounting design allows secure installation in compatible panelboards and power distribution equipment.
Key Features
- Thermal Magnetic Protection Unit: Combines thermal overload sensing with instantaneous magnetic tripping to safeguard circuits from sustained overcurrent and short-circuit faults.
- Multi-Voltage Interrupt Ratings: Certified interrupting capacities at 240 VAC, 480 VAC, and 600 VAC support diverse power system requirements.
- Three Pole Configuration: Provides balanced protection across all phases in three-phase power distribution systems.
- I-Line Plug-In Mounting: Enables fast installation and secure electrical connection in Schneider Electric I-Line panelboards.
- Wide Conductor Compatibility: Accepts a broad range of aluminum and copper wire sizes for flexible field wiring.
- Compact HDA Frame Design: Optimized for space-efficient installation while maintaining reliable electrical performance.
- Global Compliance Certifications: Meets multiple international standards, supporting use in a wide range of regulated environments.
The HDA36110 delivers the reliability and precision required for protecting three-phase power distribution circuits in industrial and commercial applications.
