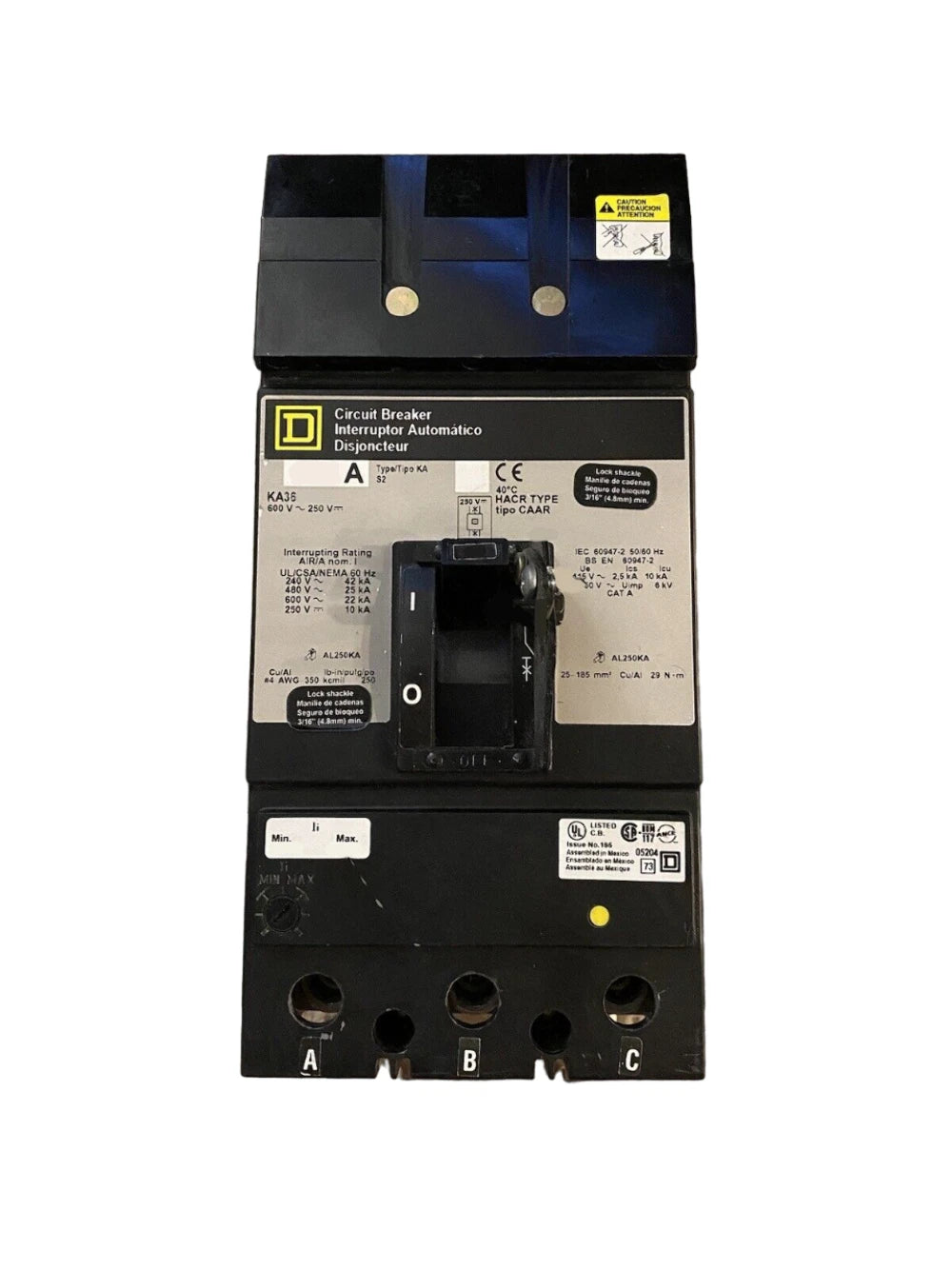

KAB36225 | Schneider Electric Three Pole Thermal Magnetic Molded Case Circuit Breaker 225A 600VAC
- Regular price
- $3,399.00
- Sale price
- $3,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KAB36225
Description
The Schneider Electric KAB36225 is a three pole thermal magnetic molded case circuit breaker engineered for dependable power distribution protection. It supports high-current applications with precise long time and instantaneous trip performance in industrial electrical systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Protection |
| Part Number | KAB36225 |
| Subcategory | Molded Case Circuit Breakers |
| Series | KAB |
| Frame Type | KA |
| Amperage Rating | 225 Amps |
| Voltage Rating | 600 VAC |
| Poles | 3 |
| Phase | 3 Phase |
| Interrupting Rating | 25 kAIC @ 480 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long Time and Instantaneous |
| Connection Type | I-Line Style Bolt-On |
| Temperature Rating | 40 °C |
| Weight | 13 lbs |
Information About KAB36225
The KAB36225 is part of the Schneider Electric KAB Series, which is designed for robust molded case circuit breaker applications in commercial and industrial power systems. This breaker uses a KA frame and supports three-phase electrical distribution with a 225 amp current rating and a maximum voltage of 600 VAC. It features a thermal magnetic trip unit that combines overload and short-circuit protection within a single device. The I-Line style bolt-on connection allows secure installation while supporting efficient system maintenance and standardized panel configurations.
Key Features
- Thermal Magnetic Protection: Combines thermal overload sensing with magnetic short-circuit response for comprehensive circuit protection.
- High Interrupting Capacity: Rated at 25 kAIC at 480 V to safely interrupt fault currents in demanding power systems.
- Three Pole Configuration: Supports balanced three-phase electrical distribution in industrial and commercial installations.
- I-Line Bolt-On Connection: Enables fast, secure mounting and compatibility with Schneider Electric I-Line panel systems.
- Long Time Trip Function: Provides sustained overload protection to prevent conductor and equipment damage.
- Instantaneous Trip Function: Rapid response to short-circuit events minimizes fault energy and system stress.
- KA Series Frame Design: Engineered for durability and consistent performance at a 40 °C ambient temperature.
The KAB36225 delivers the reliability and precision required for protecting high-current three-phase power distribution systems.
