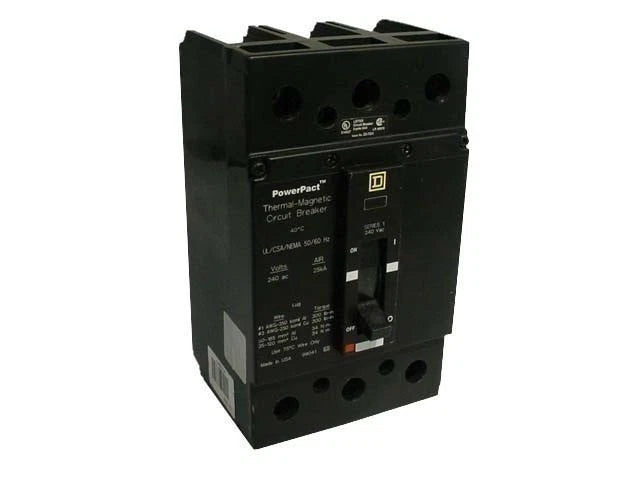

KDL32100 | Schneider Electric PowerPact KDL 100A 3-Pole Molded Case Circuit Breaker
- Regular price
- $2,217.00
- Sale price
- $2,217.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KDL32100
Description
The Schneider Electric KDL32100 is a molded case circuit breaker designed to provide thermal-magnetic protection for three-phase electrical distribution systems. Rated at 100 amps and 240 volts, it offers standard interrupting capacity for commercial and industrial applications. This breaker is commonly used where dependable circuit protection and feed-through installation are required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | KDL32100 |
| Subcategory | Molded Case Circuit Breaker |
| Series / Frame | PowerPact KDL, K Frame |
| Breaker Type | Molded Case Circuit Breaker (MCCB) |
| Trip Unit | Thermal-Magnetic (LI long-time and instantaneous) |
| Current Rating | 100 A |
| Poles | 3 |
| Phase | Three-phase |
| Rated Voltage | 240 V AC max |
| Interrupt Rating | 25 kAIC @ 240 V AC |
| Mounting Style | Bolt-on, feed-thru |
| Terminations | Line lug and load lug |
| Dimensions (W×D×H) | 4.12 × 4.17 × 7.06 in |
| Standards | UL Listed, CSA Approved |
| Weight | 4.88 lbs |
Information About KDL32100
The KDL32100 is part of the Schneider Electric PowerPact KDL series, which includes K-frame molded case circuit breakers engineered for reliable power distribution protection. It is built with a thermal-magnetic trip unit that provides long-time and instantaneous protection against overloads and short circuits. The breaker supports three-phase configurations and features feed-through mounting with line and load side lugs for flexible installation. Although discontinued by the manufacturer, it remains suitable for maintenance and replacement within existing PowerPact electrical systems.
Key Features:
- Molded Case Circuit Breaker: Provides reliable overcurrent and short-circuit protection.
- PowerPact KDL Series: Designed for standard-duty commercial and industrial power systems.
- 100 Amp Rating: Suitable for medium-load three-phase circuit protection.
- Standard Interrupt Capacity: Rated at 25 kAIC for fault protection at 240 VAC.
- Thermal-Magnetic Trip Unit: Offers long-time and instantaneous response to electrical faults.
- Feed-Through Mounting: Supports bolt-on installation with line and load side lug terminals.
- Three-Pole Configuration: Designed for three-phase electrical distribution.
The KDL32100 delivers the reliability and precision required for standard-duty circuit protection in three-phase commercial and industrial electrical systems.
