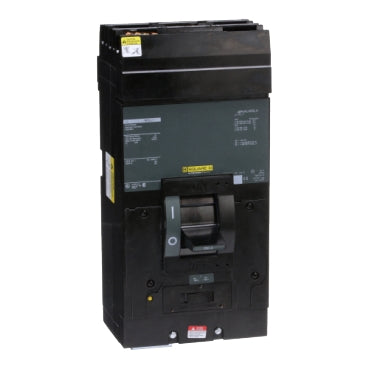

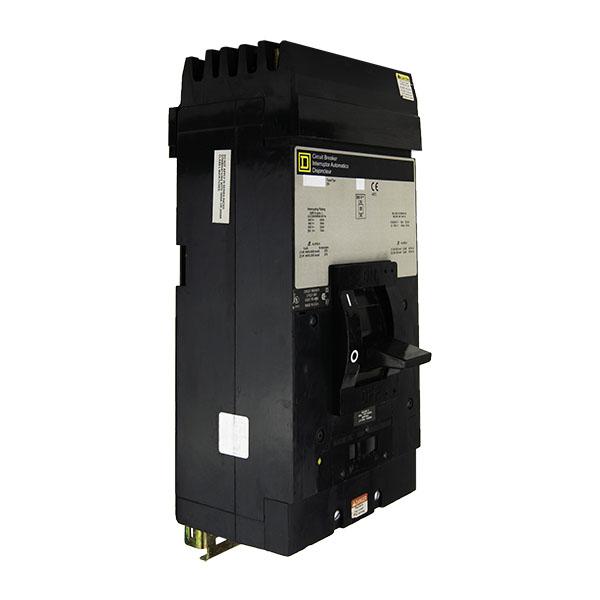

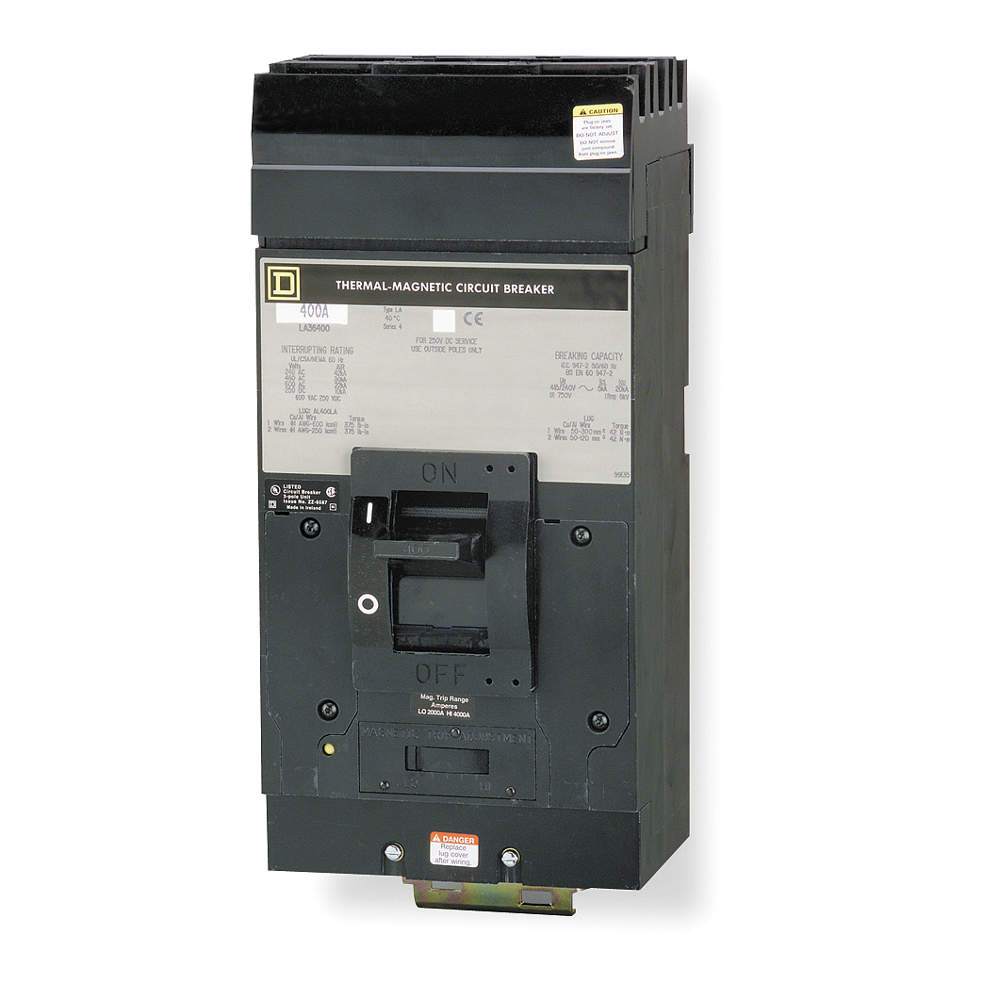

LA36150 | Schneider Electric Three Pole Thermal Magnetic Molded Case Circuit Breaker 150A 600VAC
- Regular price
- $2,989.00
- Sale price
- $2,989.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LA36150
Description
The Schneider Electric LA36150 is a three pole thermal magnetic molded case circuit breaker designed for controlled power distribution protection. It supports 150 amp, 600 VAC operation with reliable long-time and instantaneous trip response in low-voltage electrical systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Protection |
| Part Number | LA36150 |
| Subcategory | Molded Case Circuit Breakers |
| Series | LA |
| Family | I-Line |
| Frame Type | LA |
| Amperage Rating | 150 A |
| Voltage Rating | 600 VAC |
| DC Voltage Rating | 250 VDC |
| Number of Poles | 3 |
| Phase | 3 Phase |
| Interrupting Rating | 30 kA @ 480 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Mounting Mode | I-Line Style Plug-In |
| Wiring Configuration | 3-Wire |
| Magnetic Hold Current | 750 A |
| Magnetic Trip Current | 1500 A |
| HACR Rated | Yes |
| Dimensions (H x W x D) | 11 x 6 x 5.84 in |
| Weight | 18.08 lbs |
Information About LA36150
The LA36150 is part of the Schneider Electric LA Series within the I-Line family, developed for standardized panelboard and switchboard power distribution systems. This circuit breaker uses a three pole configuration to support balanced three-phase electrical loads up to 150 amps at 600 VAC. It incorporates a thermal magnetic trip unit that provides both overload and short-circuit protection through long-time and instantaneous trip functions. The I-Line plug-in mounting design allows secure installation and efficient integration into compatible Schneider Electric panelboard architectures.
Key Features
- Thermal Magnetic Protection: Combines thermal overload sensing with magnetic short-circuit protection for dependable circuit control.
- Three Pole Configuration: Supports three-phase power distribution in commercial and industrial electrical systems.
- High Interrupting Capacity: Rated up to 30 kA at 480 V for safe fault interruption in demanding installations.
- I-Line Plug-In Mounting: Enables fast installation and secure electrical connection in I-Line panelboards.
- Long-Time Trip Function: Protects conductors and equipment against sustained overload conditions.
- Instantaneous Trip Response: Rapid short-circuit interruption minimizes fault energy and equipment stress.
- HACR Rated Design: Approved for heating, air conditioning, and refrigeration circuit protection.
The LA36150 delivers the reliability and precision required for three-phase power distribution and circuit protection applications.
