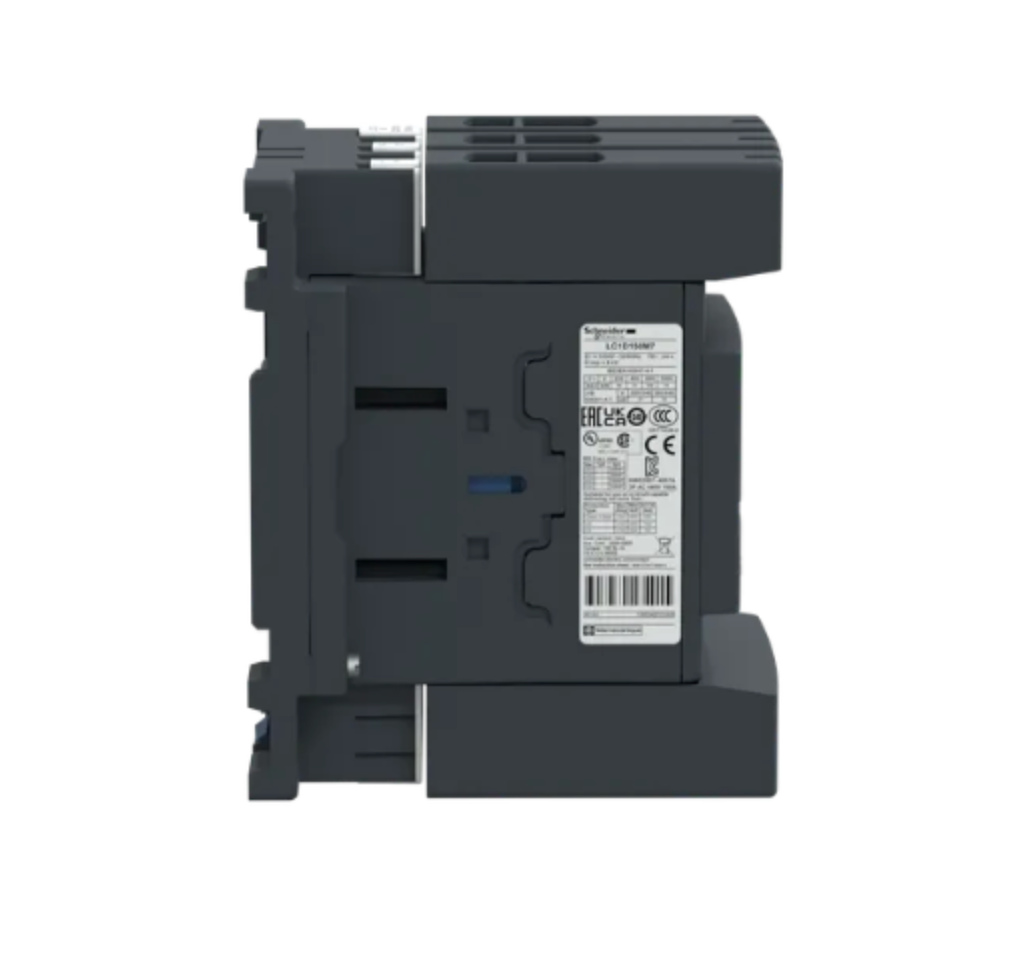

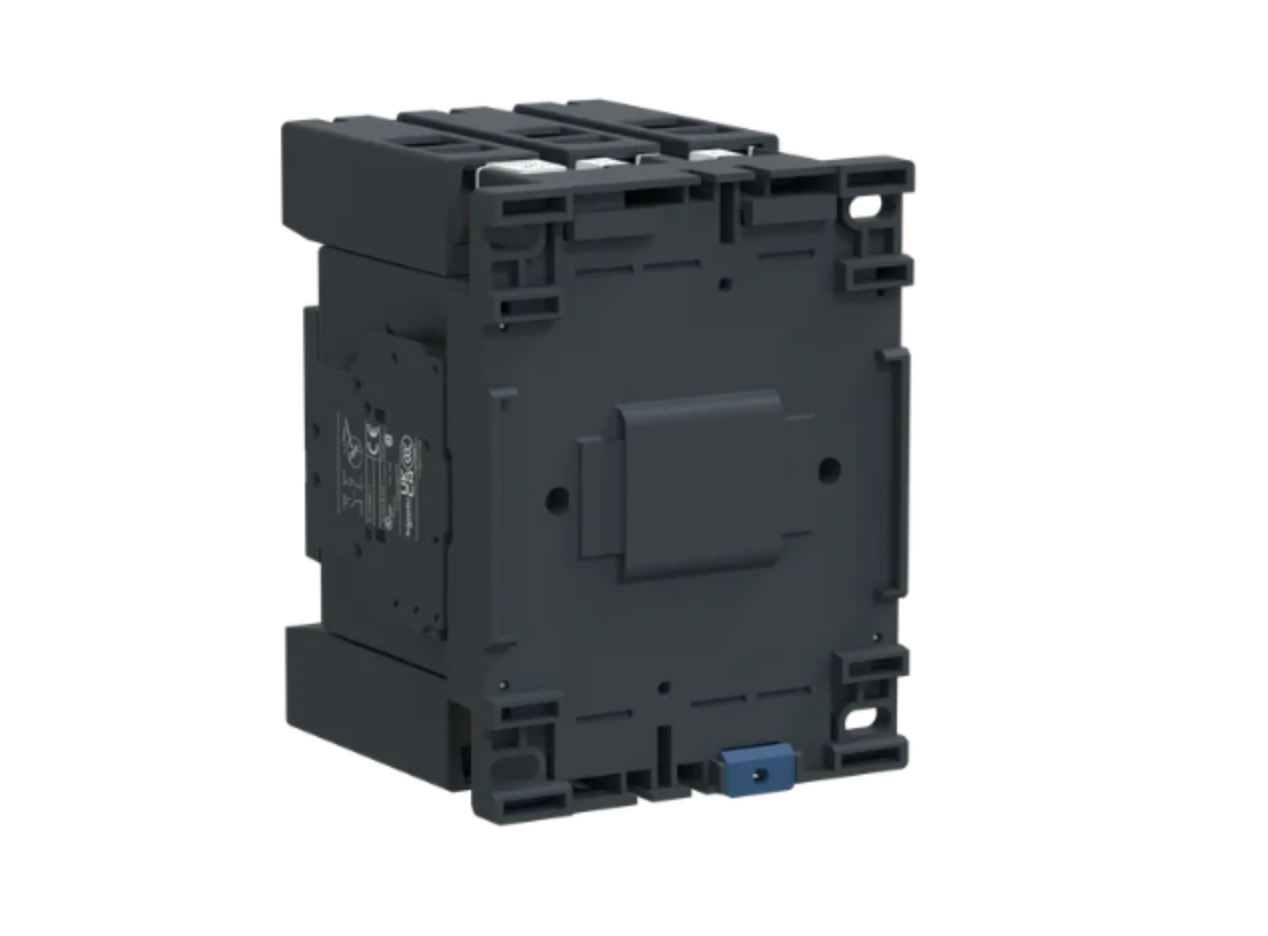

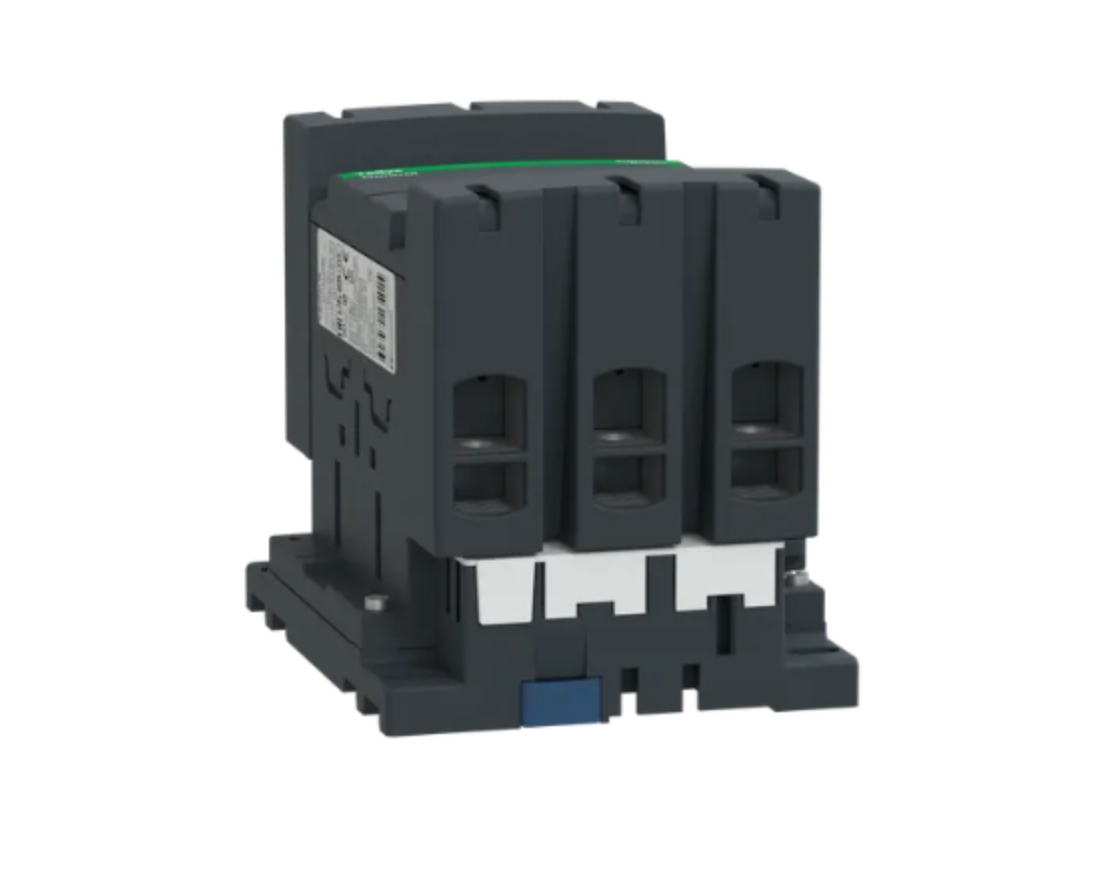

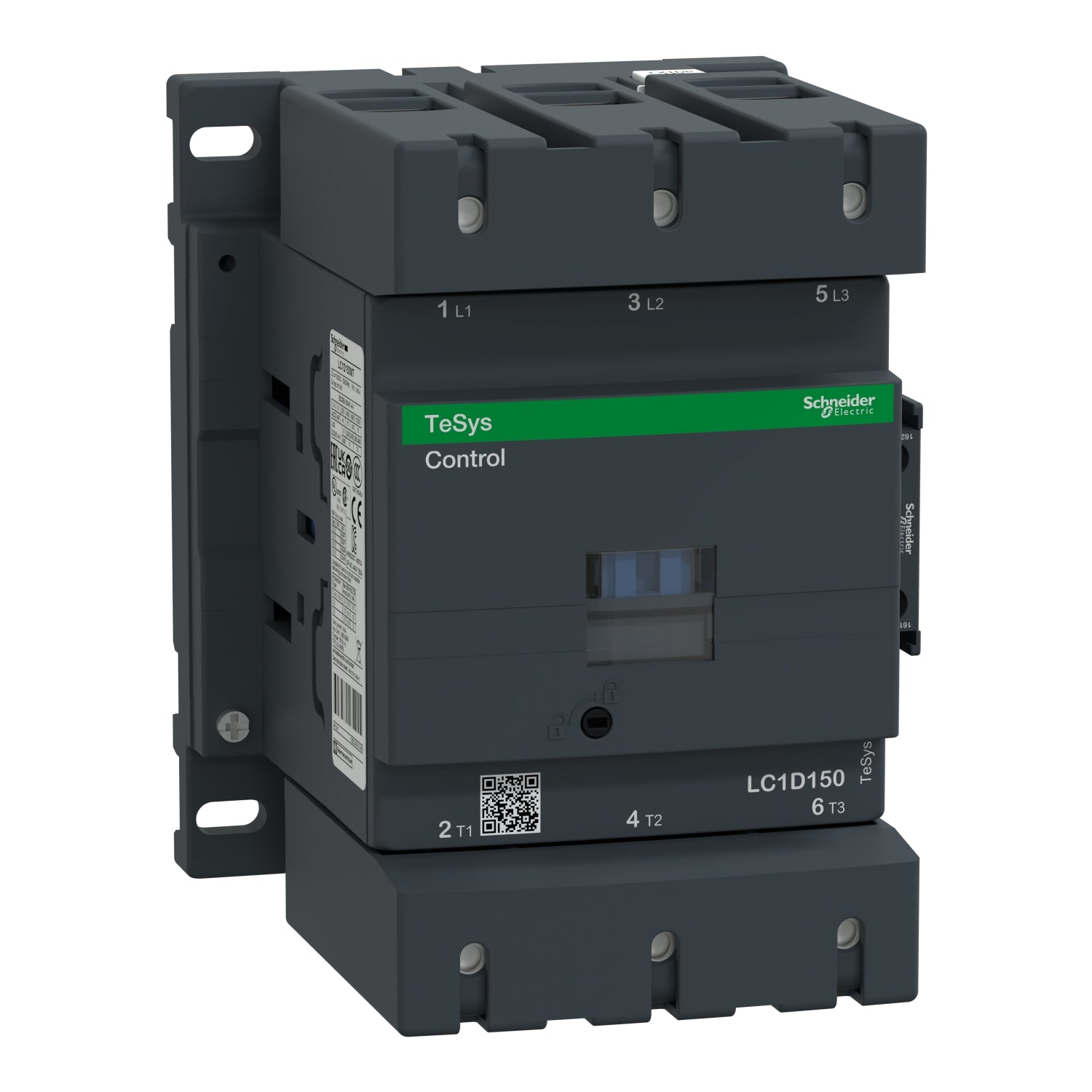

Schneider Electric LC1D150T7 TeSys D Contactor 150A 3 Pole 480V AC Coil
- Regular price
- $958.00
- Sale price
- $958.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1D150T7
Description
The Schneider Electric LC1D150T7 is a TeSys D series contactor designed for reliable control of three-phase motors and power circuits in industrial applications. Rated for 150 A in AC-3 duty, it features a 480 V AC coil and supports high-performance switching in demanding environments. This contactor is commonly used in motor starters, automation systems, and power distribution panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Contactors & Starters |
| Part Number | LC1D150T7 |
| Subcategory | Contactor |
| Series | TeSys D (TeSys Deca) |
| Poles | 3 Pole (3 NO) |
| Rated Operational Current (AC-3) | 150 A |
| Rated Operational Voltage | Up to 1000 VAC |
| Control Voltage | 480 V AC (50/60 Hz) |
| Auxiliary Contacts | 1 NO + 1 NC |
| Thermal Current (Ith) | 200 A |
| Motor Power Rating | Up to 100 HP @ 480 V |
| Mounting Type | DIN rail or panel mount |
| Protection Rating | IP20 |
| Operating Temperature Range | -40°C to +60°C |
| Mechanical Durability | 8 million cycles |
| Weight | 5.5 lbs |
Information About LC1D150T7
The LC1D150T7 is part of Schneider Electric’s TeSys Deca (TeSys D) range, engineered for flexible integration into industrial motor control systems. It features a three-pole configuration with built-in auxiliary contacts (1 NO + 1 NC), allowing for enhanced control and signaling functions. Designed for both DIN rail and panel mounting, it offers installation versatility across control cabinets and motor control centers. With robust construction, high electrical endurance, and compatibility with a wide range of accessories, it supports efficient operation in demanding industrial environments.
Key Features:
- High Current Capacity: Rated for 150 A (AC-3) enabling control of large industrial motors.
- Integrated Auxiliary Contacts: Includes 1 NO and 1 NC contact for control and signaling circuits.
- Wide Voltage Operation: Supports up to 1000 VAC power circuits and 480 VAC control coil.
- TeSys D Platform: Designed for consistent performance and easy integration in automation systems.
- Flexible Mounting Options: Can be installed on DIN rail or directly on panels.
- High Durability: Provides up to 8 million mechanical cycles for long service life.
- Built-In Coil Protection: Includes peak limiting suppressor for improved electrical reliability.
The LC1D150T7 delivers the reliability and precision required for industrial motor control and power switching applications.
